BYM36AGP THRU BYM36EGP
SINTERED GLASS JUNCTION
FAST SWITCHING PLASTIC RECTIFIER
VOLTAGE：200V to 1000V
：
CURRENT: 3.0A
FEATURE
High temperature metallurgically bonded construction
Sintered glass cavity free junction
Capability of meeting environmental standard of
MIL-S-19500
High temperature soldering guaranteed
350°C /10sec/0.375”lead length at 5 lbs tension
Low leakage current Typical Ir<0.1µA
Excellent stability
Guaranteed avalanche energy absorption capability

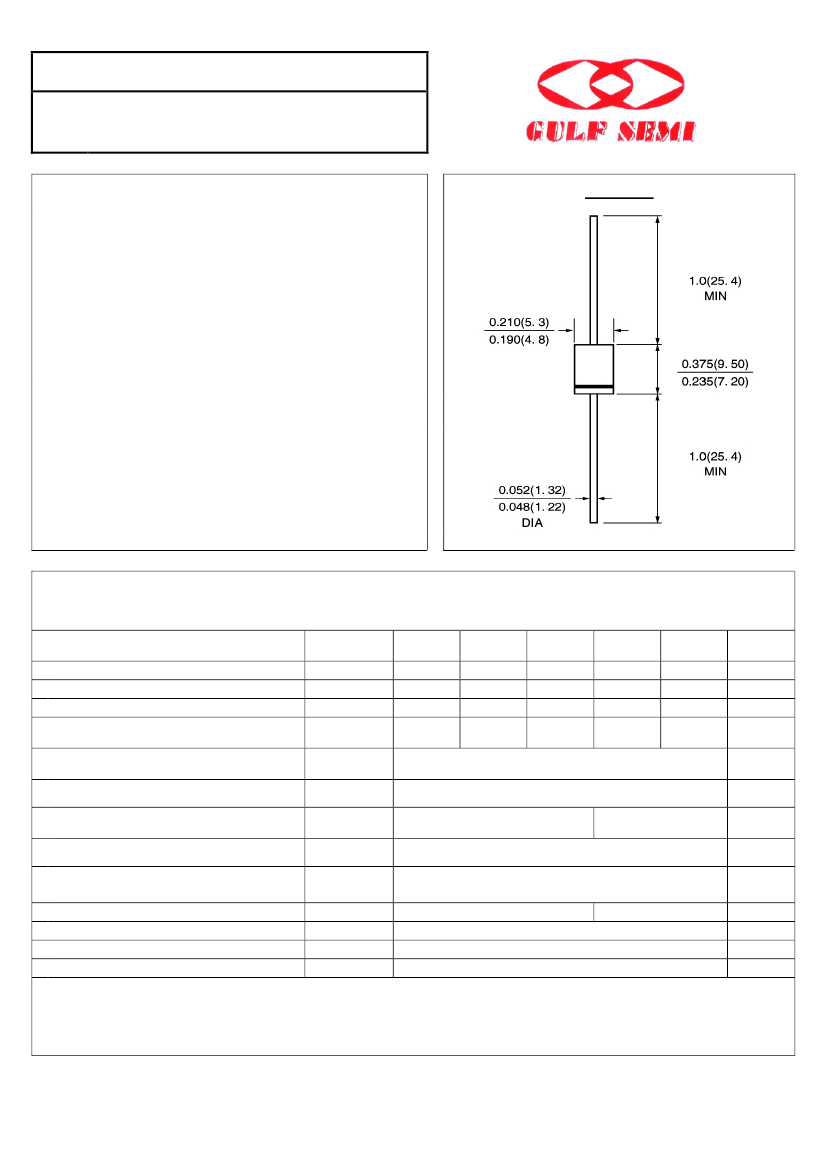

DO-201AD
MECHANICAL DATA
Terminal: Plated axial leads solderable per
MIL-STD 202E, method 208C
Case: Molded with UL-94 Class V-0 recognized Flame
Retardant Epoxy
Polarity: color band denotes cathode
Mounting position: any
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)
SYMBOL
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC blocking Voltage
Vrrm
Vrms
Vdc
BYM36
AGP
200
140
200
300
BYM36
BGP
400
280
400
500
BYM36
CGP
600
420
600
700
3.0
65
BYM36
DGP
800
560
800
900
BYM36
EGP
1000
700
1000
units
V
V
V
V
A
A
reverse avalanche breakdown voltage
at I
R
= 0.1 mA
Maximum Average Forward Rectified
Current 10mm lead length at Ta =55
°C
Peak Forward Surge Current 8.3ms single
half sine-wave superimposed on rated load
Maximum Forward Voltage at rated Forward
Current and 25
°C
I
F
=3.0A
non-repetitive peak reverse avalanche energy
(Note 1)
Maximum DC Reverse Current
Ta =25
°C
at rated DC blocking voltage
Ta =125
°C
Maximum Reverse Recovery Time (Note 2)
Typical Junction Capacitance
Typical Thermal Resistance
(Note 3)
(Note 4)
V
(BR)R
(min)
If(av)
Ifsm
Vf
Ersm
Ir
Trr
Cj
Rθja
Tstg, Tj
1100
1.6
10
10.0
150.0
100
75.0
20.0
-65 to +175
1.78
V
mJ
µ
A
µ
A
150
nS
pF
Storage and Operating Junction Temperature
°C
/W
°C
Note: 1. L = 120 mH; Tj = Tj max prior to surge; inductive load switched off
2.Reverse Recovery Condition If
=0.5A,
Ir =1.0A, Irr =0.25A
3.Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc
4.Thermal Resistance from Junction to Ambient at 3/8”lead length, P.C. Board Mounted

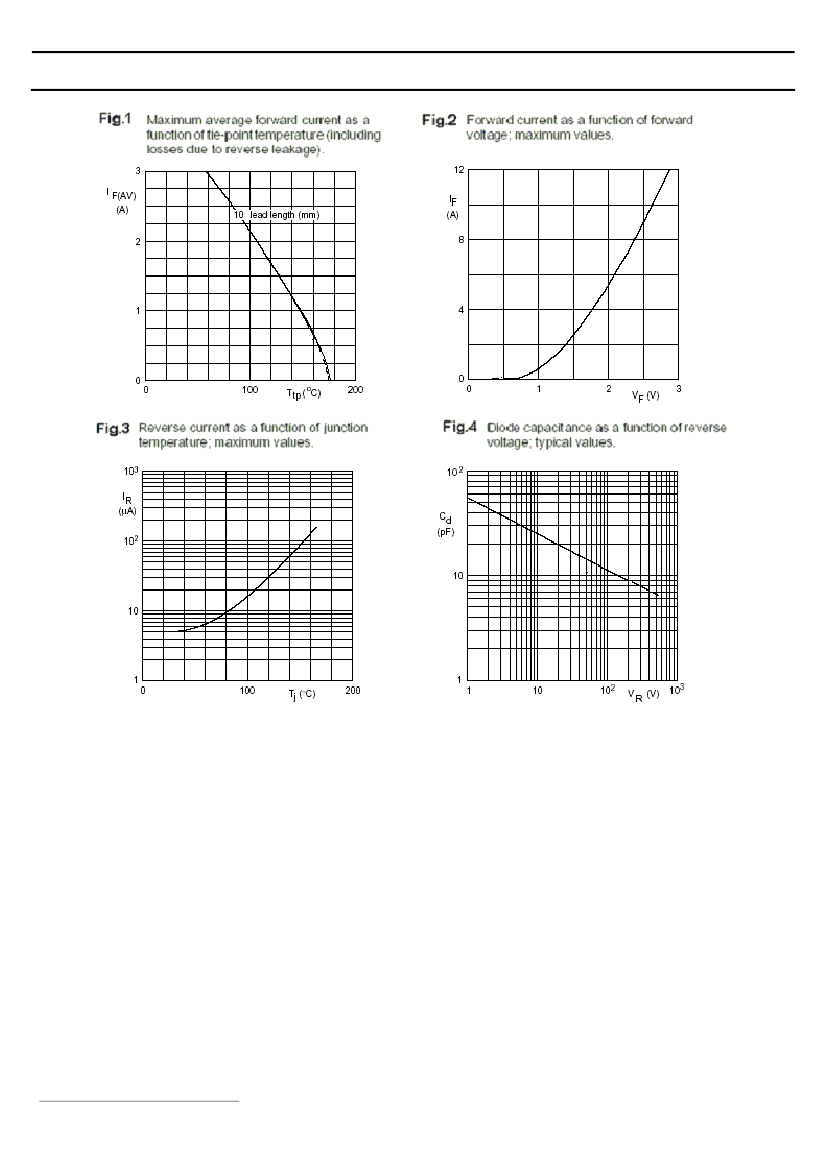

Rev.A1
