DBM-300B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DBM-300B

DBM-300B: DescriptionDouble Balanced Mixer, 300MHz Min, 1500MHz Max, 8dB Conversion Loss-Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size2MB，2 Pages; ManufacturerQorvo; Websitehttps://www.qorvo.com

Download Datasheet Parametric View All

DBM-300B Overview

Double Balanced Mixer, 300MHz Min, 1500MHz Max, 8dB Conversion Loss-Max,

DBM-300B Parametric

Parameter Name	Attribute value
Maker	Qorvo
Reach Compliance Code	compliant
Other features	SMA-F
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum frequency conversion loss	8 dB
Maximum input power (CW)	23 dBm
JESD-609 code	e4
Maximum operating frequency	1500 MHz
Minimum operating frequency	300 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	DOUBLE BALANCED
Terminal surface	GOLD

Preview

Download Datasheet

View All

DBM-300B

Connector Equipped

Double Balanced

Tacan Mixer

3QO.1500

MHz

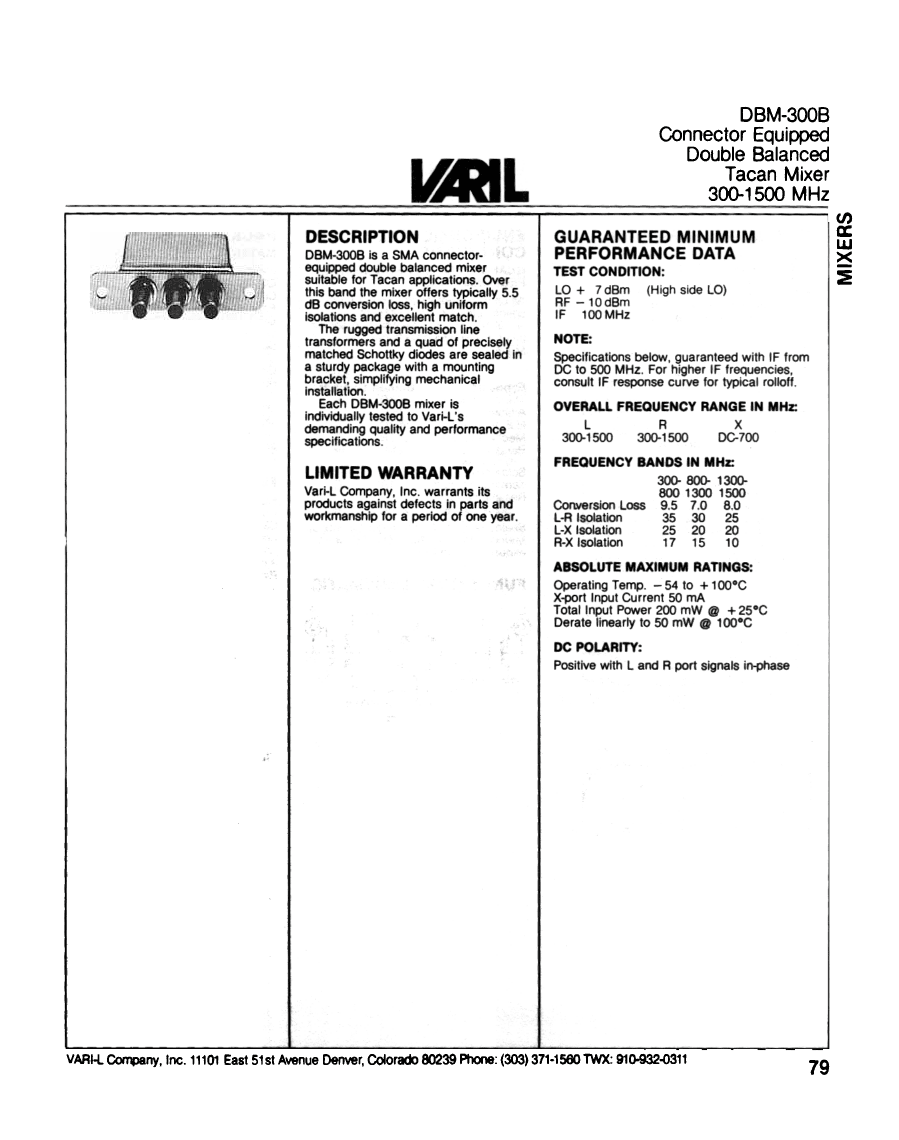

DESCRIPTION

DBM-3OOB

a SMA

connector-

equiWed double balanced mixer

suitable for Tacan applications. Over

this band the mixer offers typically 5.5

dB conversion loss, high uniform

isolations and excellent match.

The rugged transmissk>n line

transformers and a quad of precisely

matched Schottky diodes are sealed in

a sturdy package with a nnlntlng

bracket, simplifying mechanical

Installation.

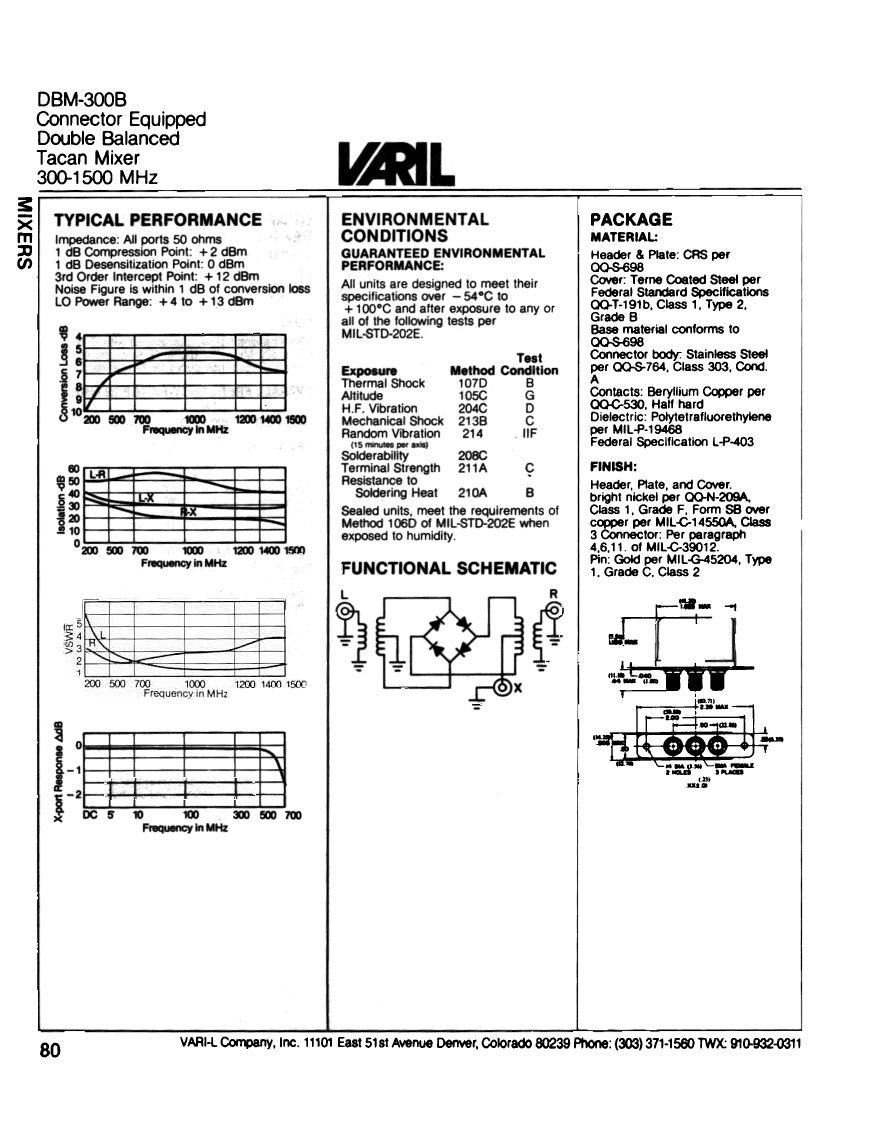

GUARANTEED MINIMUM

PERFORMANCE DATA

TEST CONDITION:

7 dBm (High side LO)

AF -

10dBm

IF 100 MHz

NOTE:

Specifications below, guaranteed with IF from

DC to 500 MHz. For higher IF frequencies.

consult

response

curve for typical

rolloff.

OVERAU FREQUENCY RANGE IN MHz:

300.1500

DC-7OG

FREQUENCY BANDS IN MHz:

300- 800- 1300-

800 1300 1500

CofWersion Loss 9.5 7.0 8.0

L-A Isolation

35 30

L-X

Isolation

25 20 20

A-X Isolation

17 15

ABSOLUTE MAXIMUM RATINGS:

Operating Temp. - 54 to + 100.C

X-por1Input Current 50 mA

Total Input Power 200 mW @ + 25°C

Derate linearly to 50 mW @ 100°C

DC POLARITY:

Positive

with L a~ A port signalsin..phase

CJ)

Each DBM-300B

mixer is

individually tested to Vari-L's

demanding quality and performance

specifications.

LIMITED

WARRANTY

Vari-l Company, Inc. warrants its

products against defects in parts and

workmanship for a period of one year

VARI-l Company, Inc. 11101East 51st Avenue Denver, CoIo~

80239 Phone: (303) 371-1560TWX: 910.932'{)311
