ST24W01M1013TR datasheet, PDF - EEWORLD Datasheet

ST24W01M1013TR: Description128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8; Categorystorage storage; File Size547KB，16 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

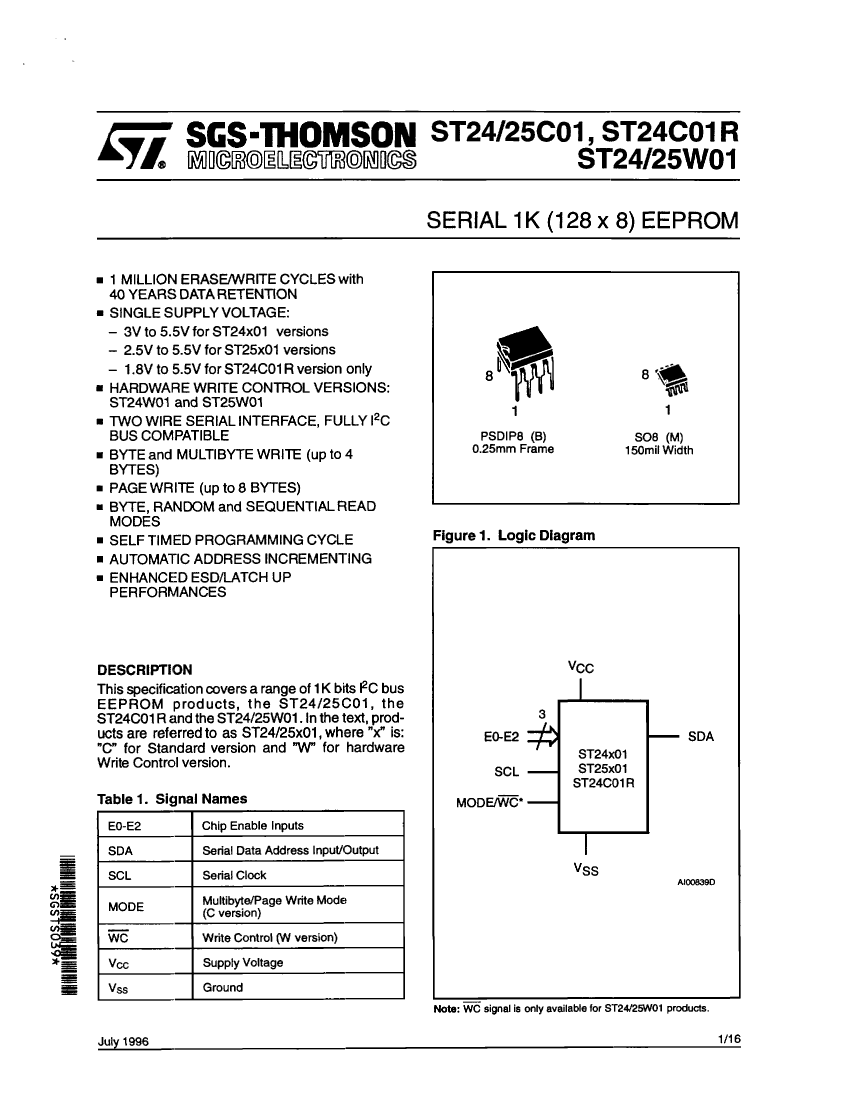

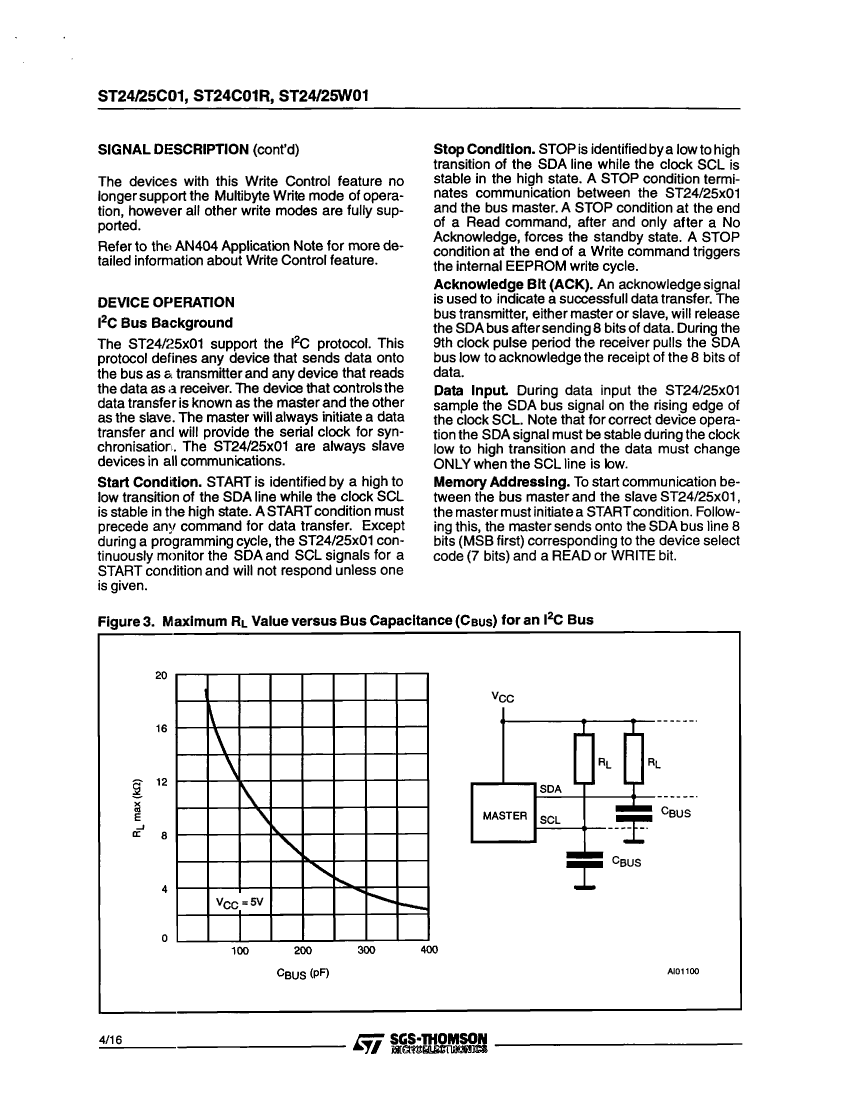

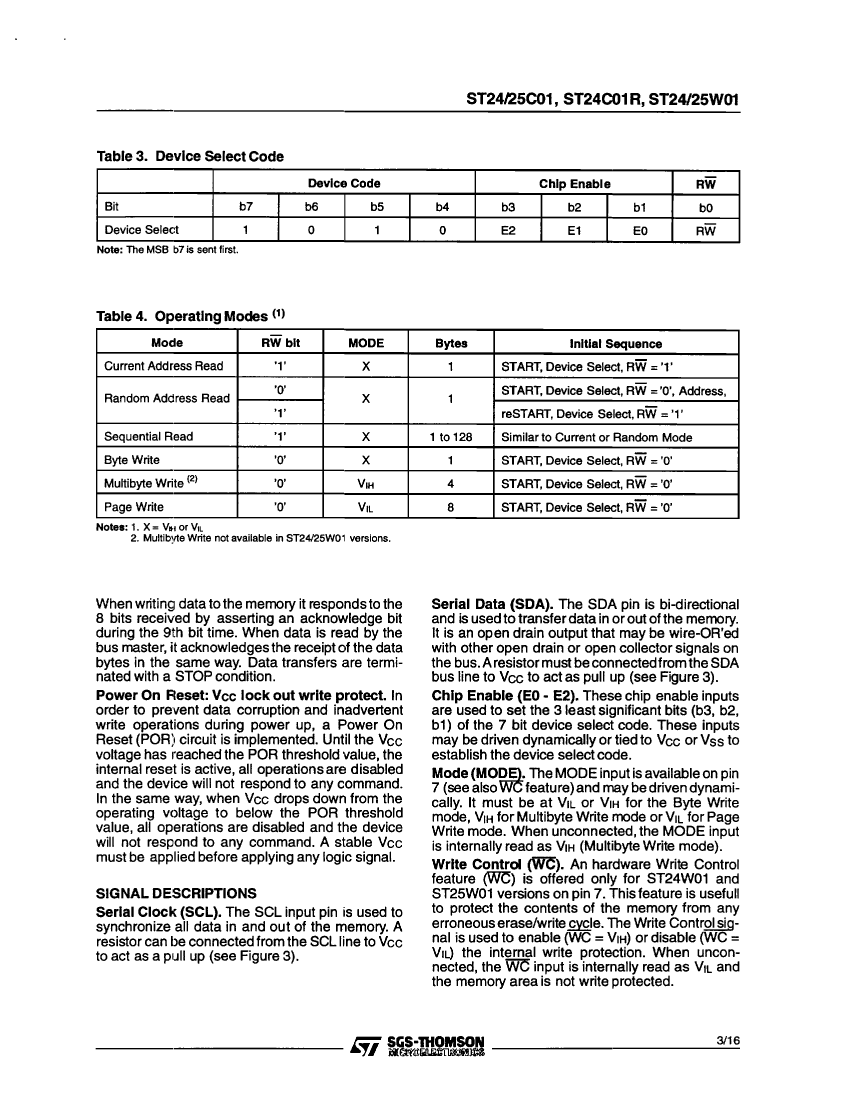

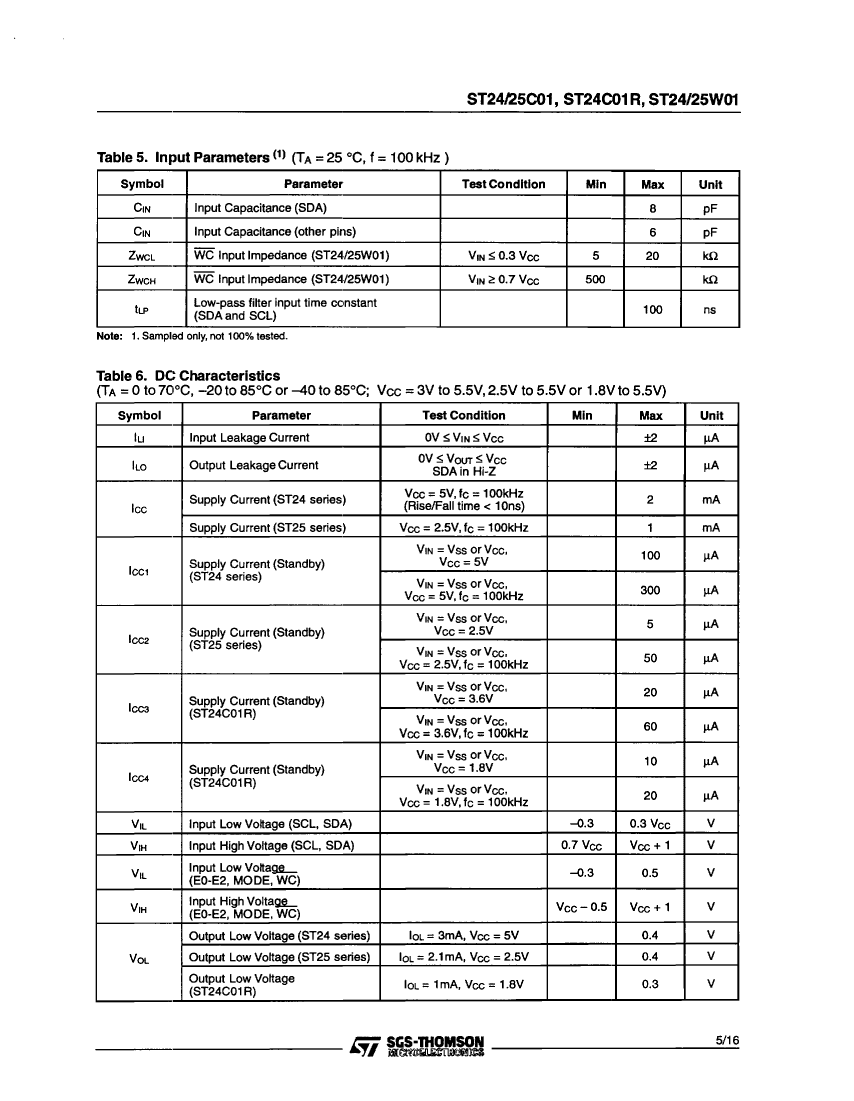

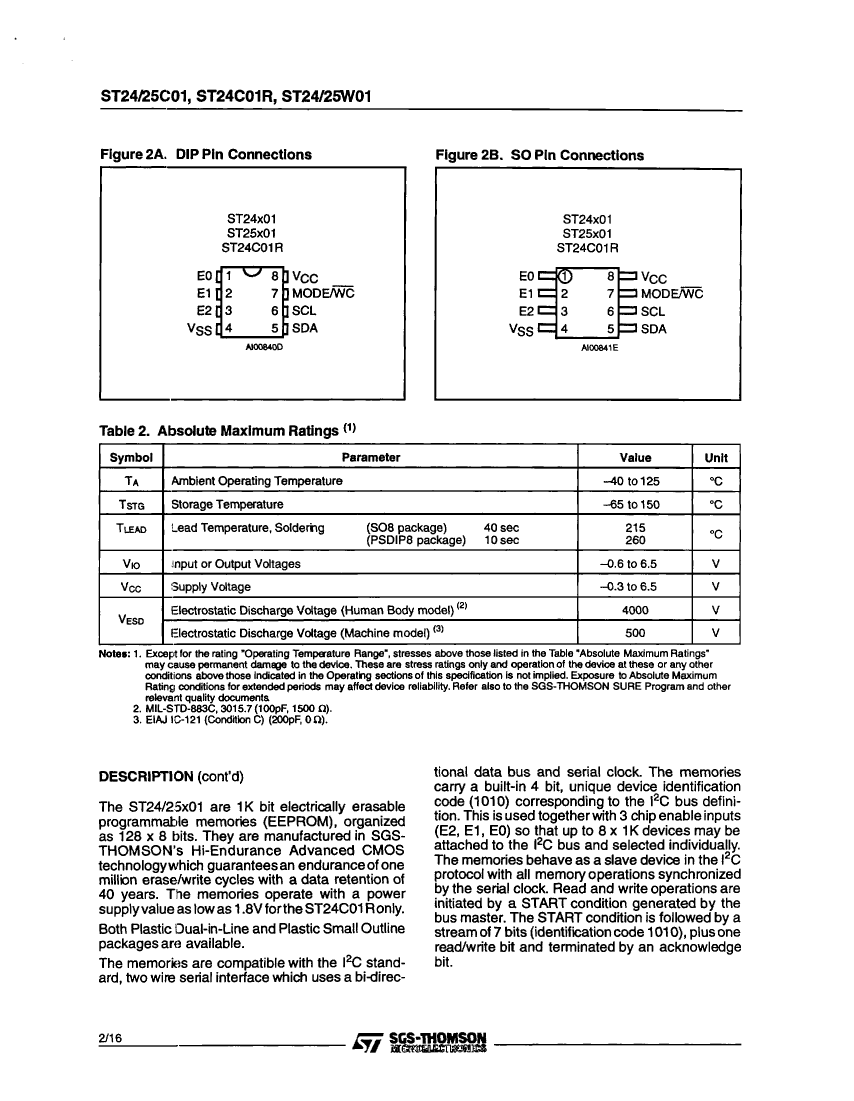

ST24W01M1013TR Overview

128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8

Parameter Name	Attribute value
Maker	STMicroelectronics
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	1000K ERASE/WRITE CYCLES MIN.; DATA RETENTION > 10 YEARS
Maximum clock frequency (fCLK)	0.1 MHz
Data retention time - minimum	10
JESD-30 code	R-PDSO-G8
length	4.9 mm
memory density	1024 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	128 words
character code	128
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128X8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	1.75 mm
Serial bus type	I2C
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Maximum write cycle time (tWC)	10 ms

	ST24W01M1013TR	ST25W01M1013TR
Description	128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8	128X8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, PLASTIC, SO-8
Maker	STMicroelectronics	STMicroelectronics
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	8	8
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	1000K ERASE/WRITE CYCLES MIN.; DATA RETENTION > 10 YEARS	1000K ERASE/WRITE CYCLES MIN.; DATA RETENTION > 10 YEARS
Maximum clock frequency (fCLK)	0.1 MHz	0.1 MHz
Data retention time - minimum	10	10
JESD-30 code	R-PDSO-G8	R-PDSO-G8
length	4.9 mm	4.9 mm
memory density	1024 bit	1024 bit
Memory IC Type	EEPROM	EEPROM
memory width	8	8
Number of functions	1	1
Number of terminals	8	8
word count	128 words	128 words
character code	128	128
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	128X8	128X8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm
Serial bus type	I2C	I2C
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	3 V	2.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	3.9 mm	3.9 mm
Maximum write cycle time (tWC)	10 ms	10 ms
