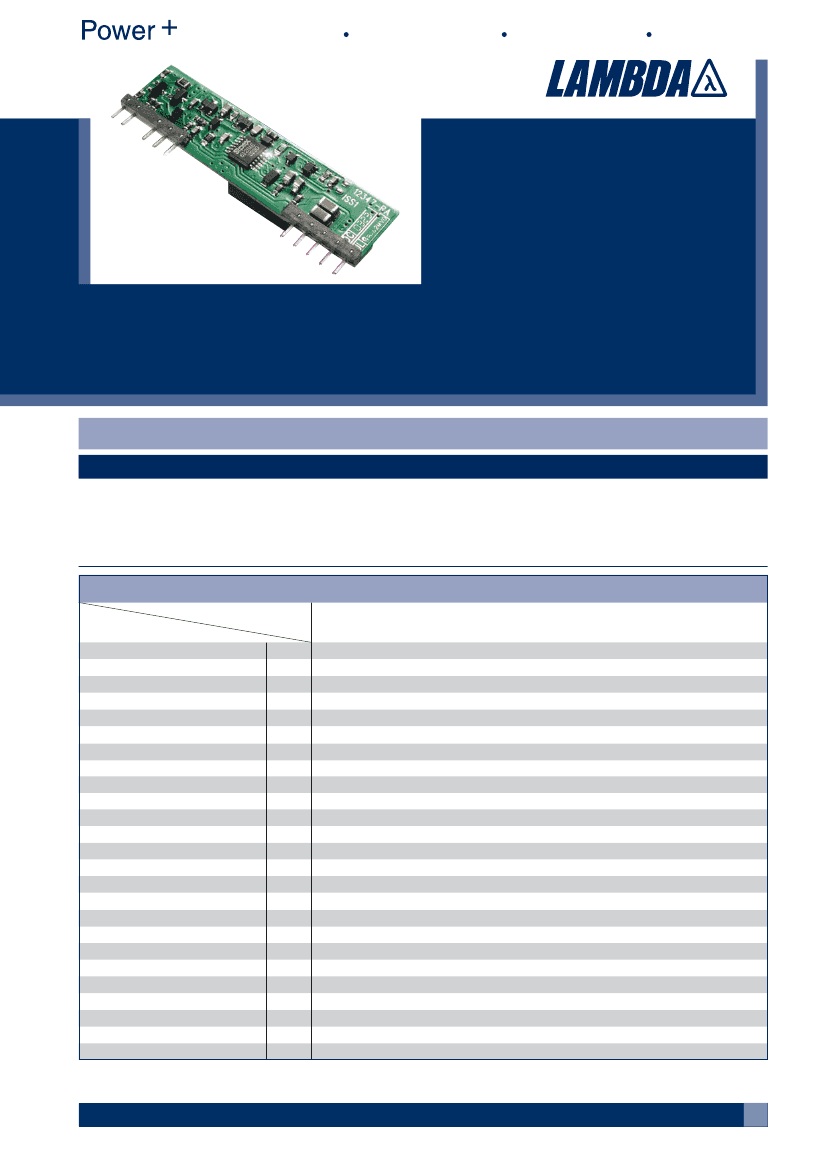

PL15 (Tarka) Series
15 Amp, Non-Isolated
DC-DC Converters
PL15 (Tarka) Series Features and Benefits
•
•
•
•
•
•
•
•
•
•
Full Power to 85˚C with Airflow
Industry Standard Package and Pin Out Options
Low Voltage Outputs to 0.9V
Output Currents up to 15A on all models
5V Inputs
Wide Output Voltage Adjustment
Remote On / Off
Remote Sense
Customer Selectable Outputs
Parallel Capability
Key Market Segments & Applications
Distributed Power Architecture
Point Of Load
Intermediate Bus Architectures
Features
◆
High Efficiency up to 95%
◆
Excellent transient response
◆
0.9 - 3.3VDC Adjustment Range
◆
Parallel capable
◆
Full Power to 70˚C with convection cooling
Specifications
MODELS
ITEMS
Input Voltage Range
Turn on/off Threshold (typ)
Output Voltage Accuracy
Voltage Trim Range
Ripple & Noise
Line Regulation (typ)
Load Regulation (typ)
Transient Response
Overcurrent Protection (OCP)
Overvoltage Protection (OVP)
Remote Sense / Parallel
Remote On / Off
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Cooling
Vibration (non operating)
Shock
Safety Agency Approvals
Weight
Size (WxHxD)
Switching Frequency
Warranty
Calculated MTBF
(1)
VDC
VDC
%
VDC
mV
mV
mV
-
15A
-
-
-
-
-
-
-
-
-
-
-
g
mm(in)
kHz
-
Hours
Benefits
◆
Reduced input current draw
◆
No expensive external capacitors required
◆
Stock one part for all voltages
◆
Scaleability
◆
Simple Thermal Management
PL15S 05
3.3 - 5.5VDC
On: 2.95V, Off 2.9V
±1
0.9 - 3.3
22-40mV (depending on output voltage)
5-10mV (output voltage dependent)
8-15mV (output voltage dependent)
100mV deviation, 50us settling time (typ) for 50-100% or 100%-50% load change
30A max
N/A
Optional - see Model Selector (Parallel uses external load share controller)
Low or Short = off, High or Open = On
-40°C to +85°C
20 - 95% Non condensing
-65°C to +150°C
10 - 95% Non condensing
Convection or forced air
10 - 55Hz (1 minute), amplitude 0.825mm (49m/s
2
max), X, Y, Z 1 hour each
196.1 m/s
2
UL1950, CSA950, EN60950
9
9.4 x 50.8 x 12.7 (0.37 x 2 x 0.5)
230 - 340
2 Years
6.9 Million
See Installation Manual for full details, test methods of parameters
and application notes
(2)
(2)
(2)
A
(3)
Notes (1) Minimum input voltage = 3 at 2.5V output
(2) For details of specific output voltages, please refer to application manual
(3) using Bellcore (V3.1 - Bell4 or V3.1 Bell3, Ta=25°C Full Power
TARKA PL15 SERIES
1
Model Number Scheme
PL
15
Max. Output Current
S
Single Output
05
Nominal Input Voltage
C
(*, **)
TP
TP= (+) Remote
sense (10 Pin)
K
Package Type
K=Box tray
* C=Customer selectable output voltage or requested factory set voltage. e.g. 0V9=0.9V)
Requires a fixed value resistor to set required output voltage. Please refer to Application Notes
Sample Model Number:
PL15S-05-C-TP-K
** Output can be factory set at no extra cost. When ordering add output value here: 1V8 for 1.8 volts
Models
Model
Output Max Out. Max Out.
Voltage Cur. (A) Pwr (W)
15
15
15
15
15
15
15
15
15
49.5
13.5
15
18
22.5
27
30
37.5
49.5
Full
Load
Eff.
-
81%
82%
84%
88%
89%
90%
92%
94%

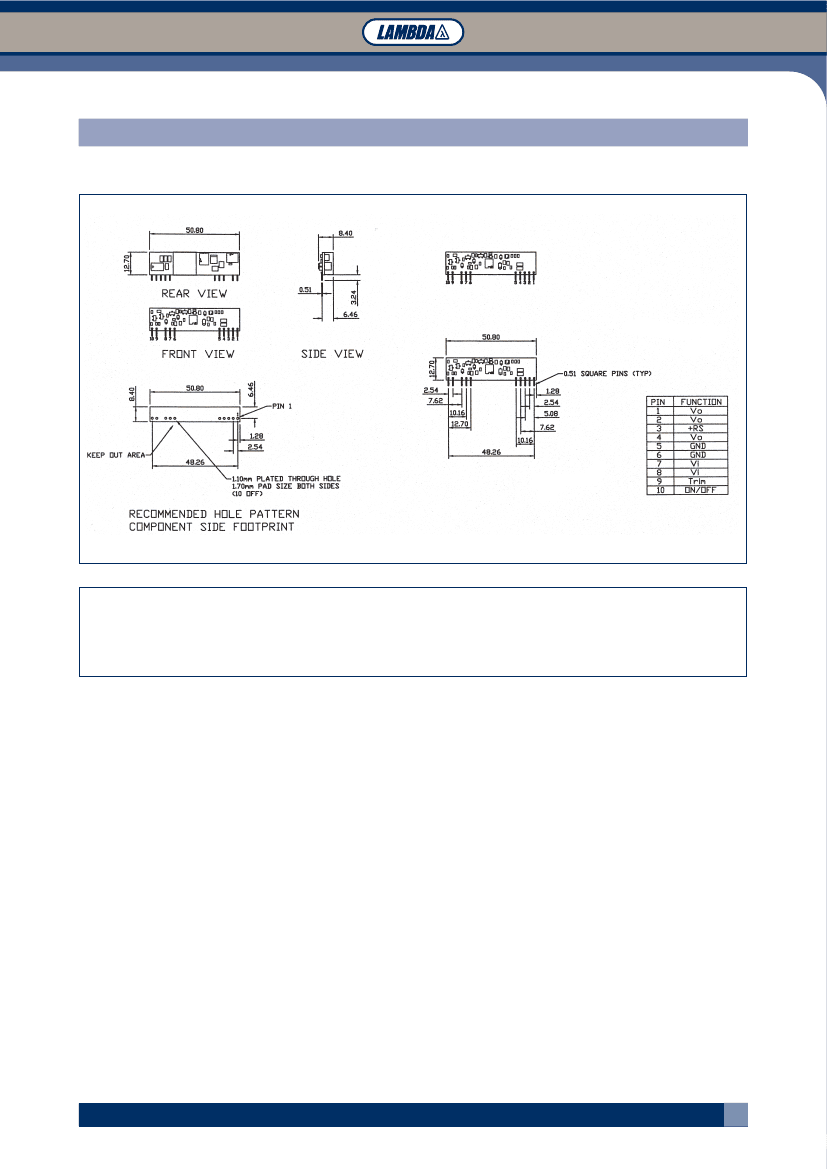

Pinout
PIN
1
2
3
4
5
6
7
8
9
10
TP Version
Vout
Vout
+RS
Vout
GND
GND
Vin
Vin
Trim
On/Off
PL15S-05-C-TP-K Selectable
PL15S-05-0V9-TP-K
0.9
PL15S-05-1V0-TP-K
1.0
PL15S-05-1V2-TP-K
1.2
PL15S-05-1V5-TP-K
1.5
PL15S-05-1V8-TP-K
1.8
PL15S-05-2V0-TP-K
2.0
PL15S-05-2V5-TP-K
2.5
PL15S-05-3V3-TP-K
3.3

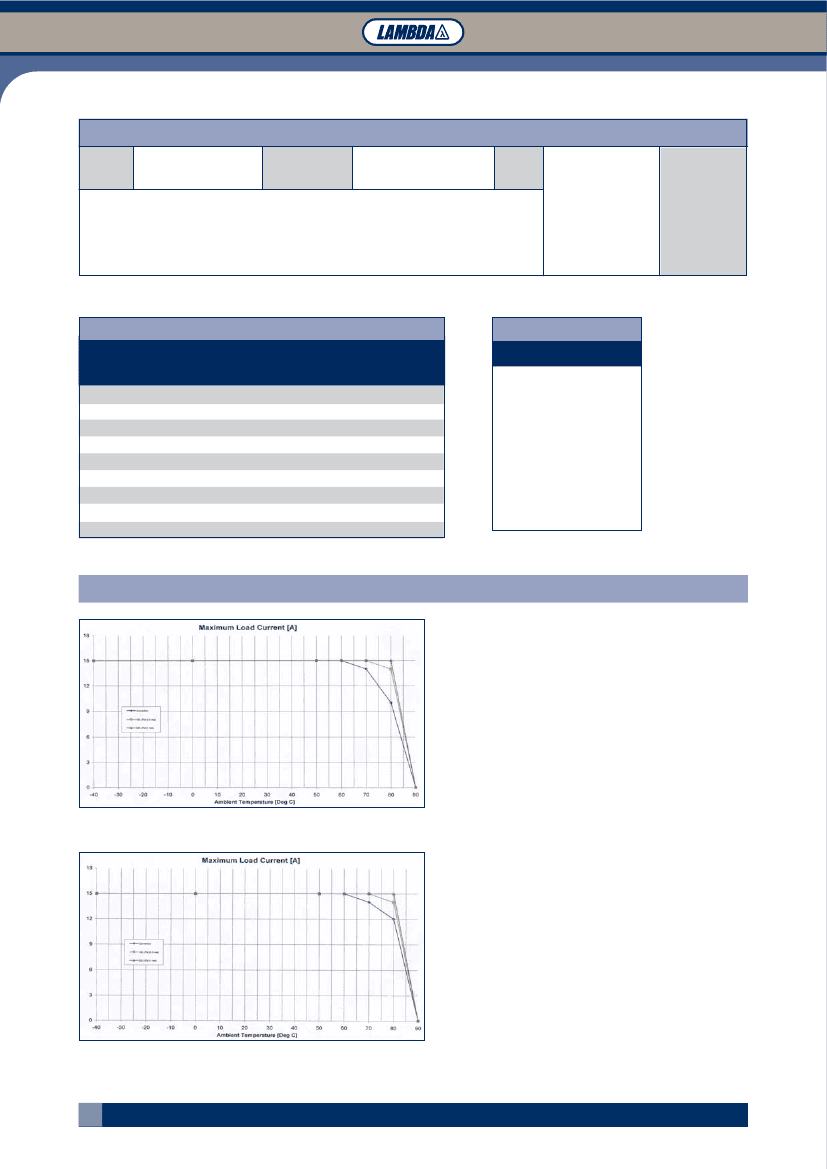

PL15 Derating Curves
PL15S-05-0.9 Derating Curve
PL15S05-1V5 Derating Curve
2
TARKA PL15 SERIES
