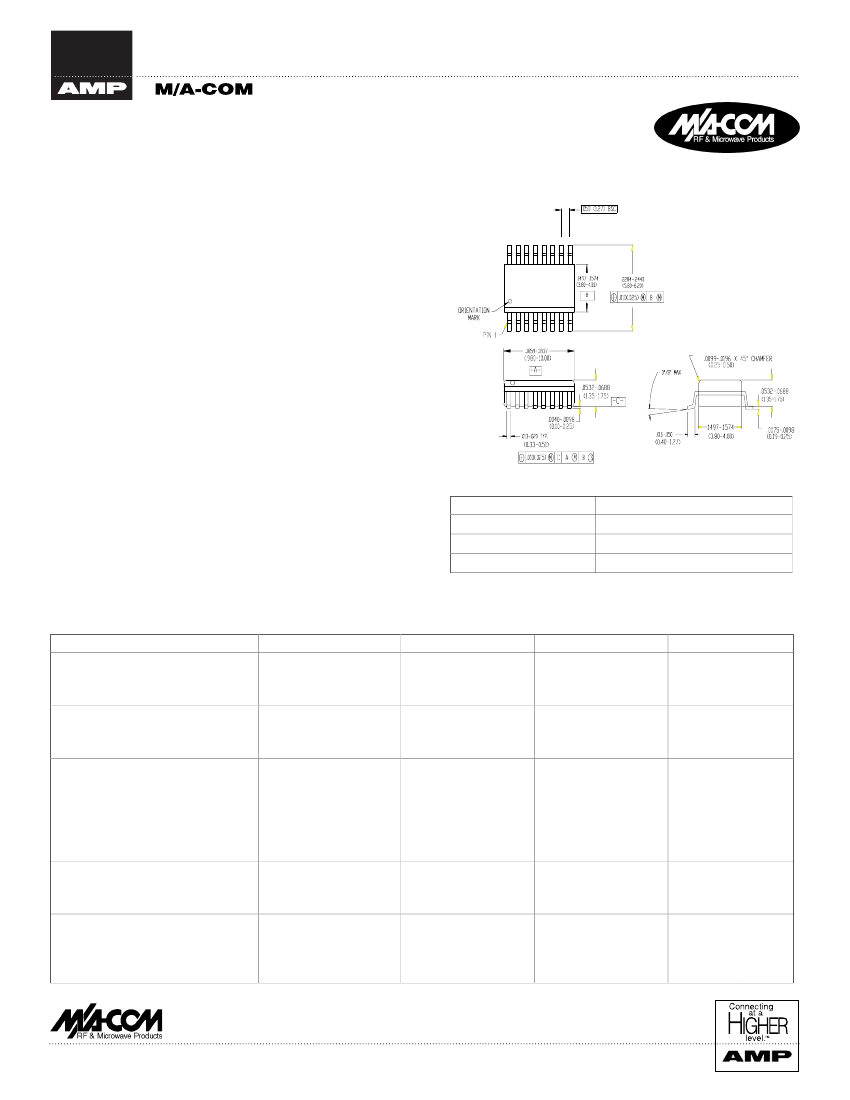

DS56-0006
Low Cost Six-Way SMT Power Divider
1700 - 2000 MHz
Features
•
•
•
•
•
•
Small Size, Low Profile
Superior Repeatability (Lot-to-lot Variation)
Industry Standard SOIC-16 SMT Plastic Package
Typical Isolation 25dB
Typical Insertion Loss 1.0dB
Low Cost
SOIC-16
Description
M/A-COM’s DS56-0006 is an IC-based monolithic power
splitter/combiner in a low cost SOIC-16 plastic package. This 6-
way power divider is ideally suited for applications where PCB
real estate is at a premium and standard packaging for automated
assembly and low cost are critical. Typical applications include
base stations, portables, and peripheral devices (PCMCIA cards)
for wireless standards such as PCS, PCN, DECT, PHS, and DCS-
1800. Available in Tape and Reel.
The DS56-0006 is fabricated using a passive-integrated circuit
process. The process features full-chip passivation for increased
performance and reliability.
1. All specifications apply with a 50-Ohm source and load impedance.
Typical Electrical Specifications
1
, T
A
= +25°C
Ordering Information
Part Number
DS56-0006
DS56-0006-TR
DS56-0006-RTR
Package
SOIC-16 Lead Plastic Package
Forward Tape and Reel
1
Reverse Tape and Reel
1
1. If specific reel size is required, consult factory for part number
assignment.
Parameter
Insertion Loss above 7.8dB
1700—2000 MHz
1850—1910 MHz
Isolation
1700—2000 MHz
1850—1910 MHz
VSWR Input
1700—2000 MHz
1850—1910 MHz
Output
1700—2000 MHz
1850—1910 MHz
Amplitude Balance
1700—2000 MHz
1850—1910 MHz
Phase Balance
1700—2000 MHz
1850—1910 MHz
Units
dB
dB
dB
dB
—
—
—
—
dB
dB
°
Min
—
—
18
21
—
—
—
—
—
—
—
—
Typ
1.3
1.0
25
26
1.7 : 1
1.3 : 1
1.3 : 1
1.1 : 1
0.8
1.0
10
8
Max
1.8
1.5
—
—
2.0 : 1
1.7 : 1
1.7 : 1
1.3 : 1
1.3
1.3
20
16
V2.00
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel.+85 2 2111 8088,
Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Specifications subject to change without notice.
Absolute Maximum Ratings
1
Parameter
Input Power
2

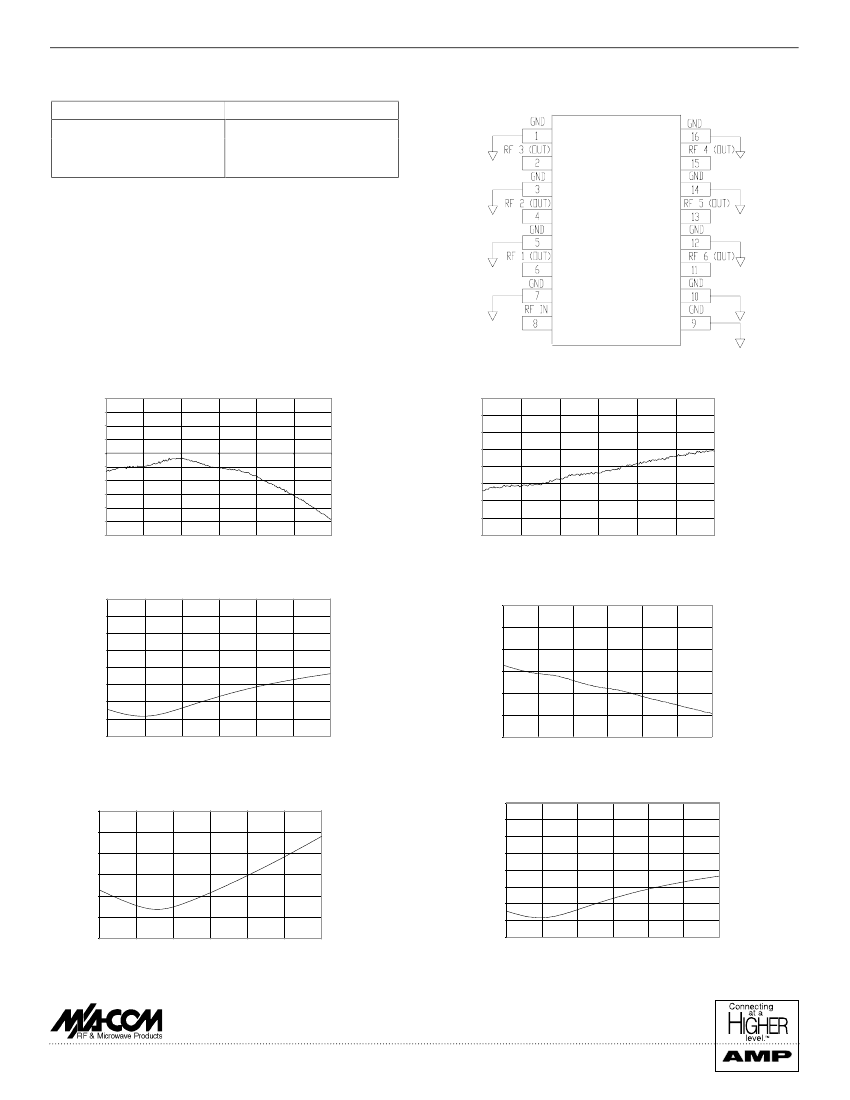

Functional Diagram
1 W CW
Absolute Maximum
-40°C to +85°C
-65°C to +150°C
Operating Temperature
Storage Temperature
1. Exceeding these limits may cause permanent damage.
2. With internal load dissipation of 0.125 W Maximum.
Typical Performance
@ +25°C
Insertion Loss
0.40
0.30
0.20
Amplitude Imbalance
-0.50
-0.55
-0.60
0.10
0.00
-0.65
dB
dB
-0.10
-0.20
-0.30
-0.70
-0.75
-0.80
-0.40
-0.50
-0.60
1700.00
-0.85
1750.00
1800.00
1850.00
1900.00
1950.00
2000.00
-0.90
1700.00
1750.00
1800.00
1850.00
1900.00
1950.00
2000.00
Frequency (MHz)
Frequency (MHz)
Isolation
0.00
Phase Imbalance
0.00
-5.00
-2.00
-10.00
-15.00
-4.00
-20.00
Degrees
1750.00
1800.00
1850.00
1900.00
1950.00
2000.00
dB
-6.00
-25.00
-8.00
-30.00
-10.00
-35.00
-40.00
1700.00
-12.00
1700.00
1750.00
1800.00
1850.00
1900.00
1950.00
2000.00
Frequency (MHz)
Frequency (MHz)
Input VSWR
Output VSWR
0.00
2.00
-5.00
1.80
-10.00
1.60
-15.00
-20.00
1.40
-25.00
1.20
-30.00
1.00
-35.00
0.80
1700.00
1750.00
1800.00
1850.00
1900.00
1950.00
2000.00
-40.00
1700.00
1750.00
1800.00
1850.00
1900.00
1950.00
2000.00
Frequency (M Hz)
Frequency (MHz)
V2.00
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel.+85 2 2111 8088,
Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Specifications subject to change without notice.
