R143.603.301

Description
RF TNC Connector, Female, Panel Mount, Receptacle
CategoryThe connector    The connector
File Size31KB,2 Pages
ManufacturerRadiall
Websitehttps://www.radiall.com/
Download Datasheet Parametric View All

R143.603.301 Overview

RF TNC Connector, Female, Panel Mount, Receptacle

R143.603.301 Parametric

Parameter NameAttribute value
MakerRadiall
Reach Compliance Codeunknown
Body/casing typeRECEPTACLE
Characteristic impedance50 Ω
Connector typeRF TNC CONNECTOR
Contact point genderFEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.08 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Manufacturer's serial numberTNC
Installation methodSTRAIGHT
Maximum operating frequency11 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
voltage standing wave ratio1.13
TECHNICAL DATA SHEET
1/2

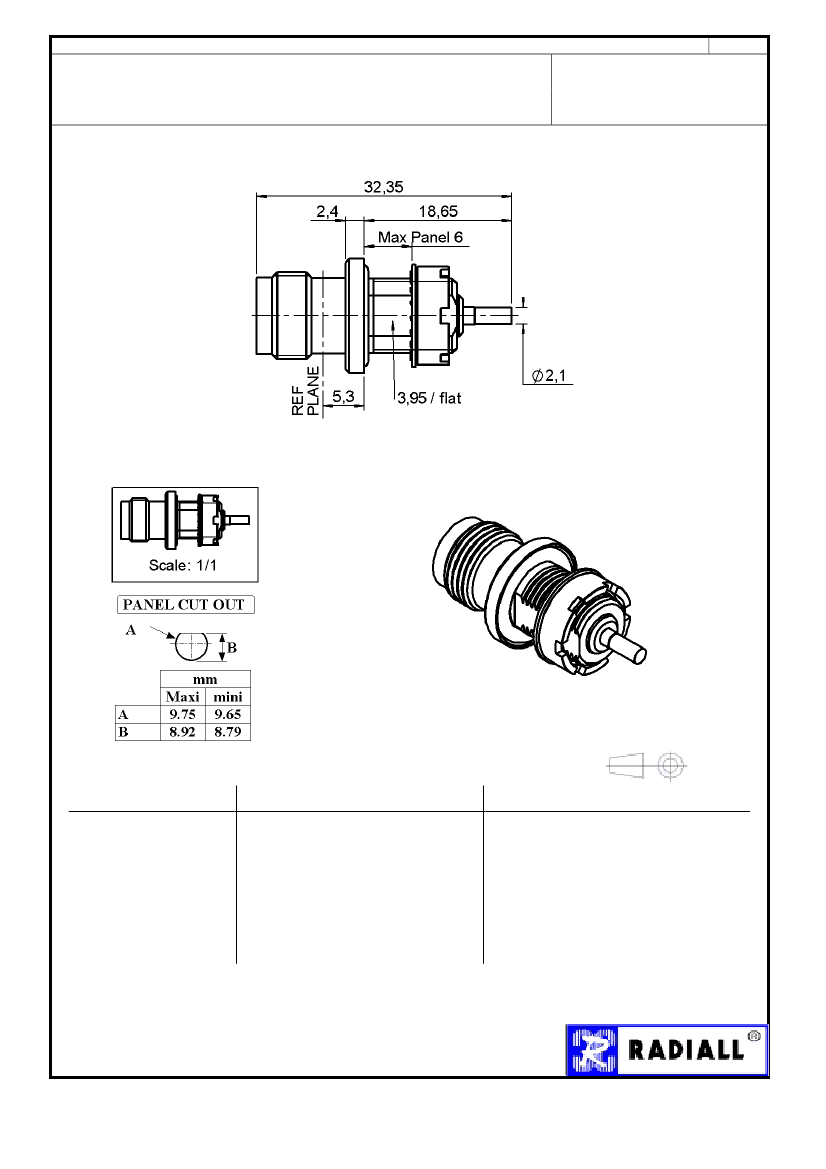

BULKHEAD JACK RECEPTACLE FRONT MOUNTING
COMBINATION SEAL WITH CYLIND. CONTACT
R143.603.301
Series :
TNC
All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
STAINLESS STEEL
BERYLLIUM COPPER
-
PTFE
SILICONE RUBBER
STAINLESS STEEL
-
-
PLATINGS (
µm
)
PASSIVATED .
GOLD 0.5 OVER NICKEL 2
-
PASSIVATED .
-
-
Issue :
0225 A
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
