DI@NA15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DI@NA15

DI@NA15: DescriptionYagi Antenna, 16dB Gain; CategoryWireless rf/communication Radio frequency and microwave; File Size72KB，1 Pages; ManufacturerFagor Electrónica

Download Datasheet Parametric View All

DI@NA15 Overview

Yagi Antenna, 16dB Gain

DI@NA15 Parametric

Parameter Name	Attribute value
Maker	Fagor Electrónica
Reach Compliance Code	compliant
Characteristic impedance	75 Ω
front to back ratio	25 dB
Gain	16 dB
Number of components	15
Omnidirectional	NO
polarization	HORIZONTAL OR VERTICAL
RF/Microwave Device Types	YAGI ANTENNA

Preview

Download Datasheet

View All

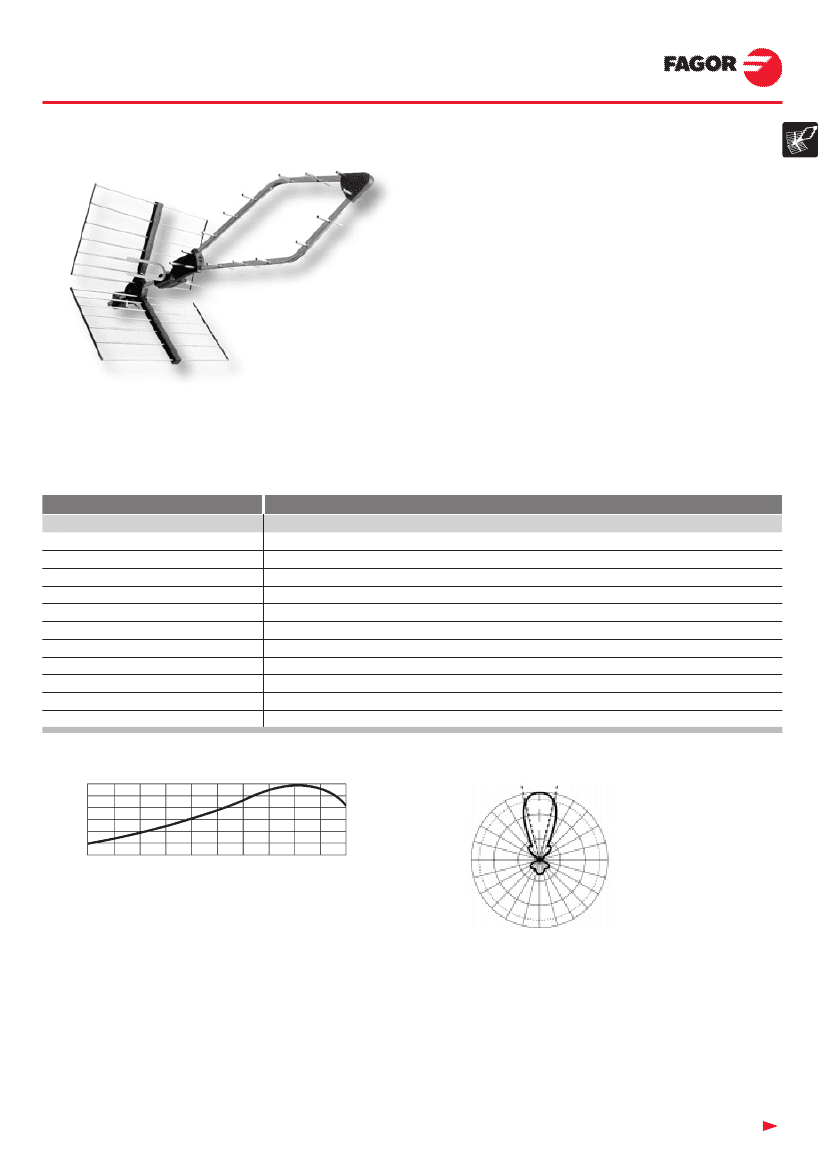

Digital Terrestrial TV Antenna (UHF)

DI@NA

DESCRIPTION

Di@na Series antennas have been designed for Digital

Terrestrial TV installations. Its rhombus shape provides a

superior response in the UHF band.

Pre-assembled for an easy set-up

The reflector and dipole have been designed for a higher

front-to-back ratio.

Long-life antenna due to its aluminium and “luran” plastic

construction.

Ergonomic design for a tool-free installation.

Suitable for horizontally or vertically polarised channels,

mainting its water-resistant in any position

TECHNICAL CHARACTERISTICS

MODEL

Reference

Channels

Gain

Impedance

Return losses

Front-to-back ratio

Horizontal opening angle

Length

Windload (120 km/h)

Units per package

Packing Dimensions

Weight

dBi

Ω

Di@na 15

84370

21 ... 69

1.126

740 x 330 x 180

)

GAIN RESPONSE

dBi 16

HORIZONTAL OPENING DIAGRAM

0 dB

30°

-10

60°

-20

60°

30°

90°

ANTENNAS
