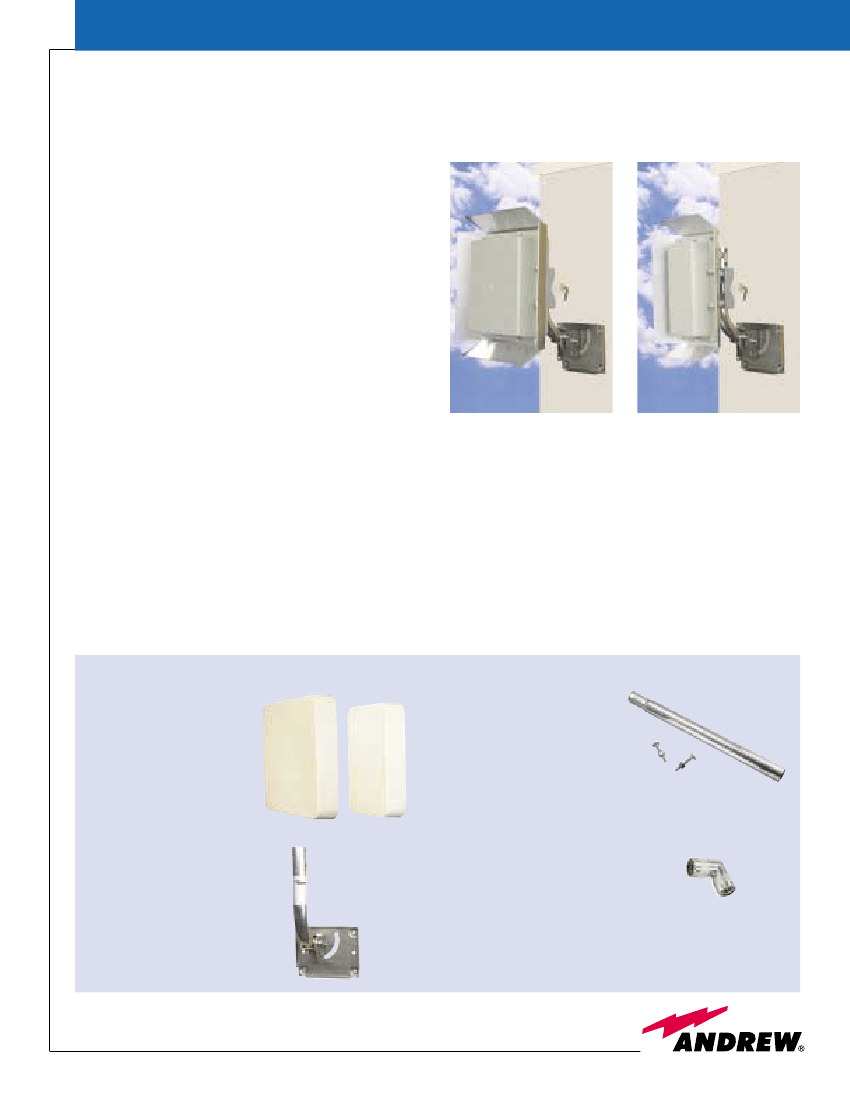

Microceptor
®
Antennas
Flat Planar Array Models for 2.1–2.7 GHz and 2.4–2.5 GHz
D
esigned to fill the need for a high performance
antenna with a smaller, more attractive look, the
Microceptor
®
meets the need for an aesthetically
pleasing antenna with highly discriminative patterns.
The product is small, lightweight, unobtrusive, and
concentrates the radiation away from the rear side of
the antenna. This antenna offers an attractive solution
for fixed subscriber and base station applications, as
well as a high performance alternative to Yagi style
antennas. The Microceptor antenna is an excellent
choice for fixed data and telephony systems where
user-specific content drives cellular and sectorized
system architectures. Both cosmetic covers and
premise mounts are available.
Model QD-2400
Model DL-2400
Features
•
Low profile antenna
•
Superior directivity, cross-pole and sidelobe
rejection with high front-to-back ratio
•
Slight weight with quick mount bracket
Microceptors shown on optional
UM-1200 Microceptor Mount
Benefits
•
High customer acceptance
•
Ensures customer satisfaction
•
Minimizes installation time
Optional Accessories for the Microceptor
®
Series
Optional Microceptor
®
Covers
Give the antenna a whole
new appearance. Hide it!
Disguise it! Optional
Microceptor cover available
assembled or unassembled.
QC-1000
DC-1000
Optional Micro-Mount
®
Extension Tube
Model EX-1000 extension tube
adds another 10” of
pipe to the end for the
Micro-Mount
®
.
Optional Universal
Micro-Mount
®
Model
UM-1200
Permits installers to mount
the Microceptor
®
DL and QD
model antennas almost
anywhere there is line-of-sight.
It features all stainless steel
and aluminum construction.
Optional Right Angle
Male Adapter
PN 363030.1
P
r
o
d
u
c
t
S
p
e
c
i
f
i
c
a
t
i
o
n
s

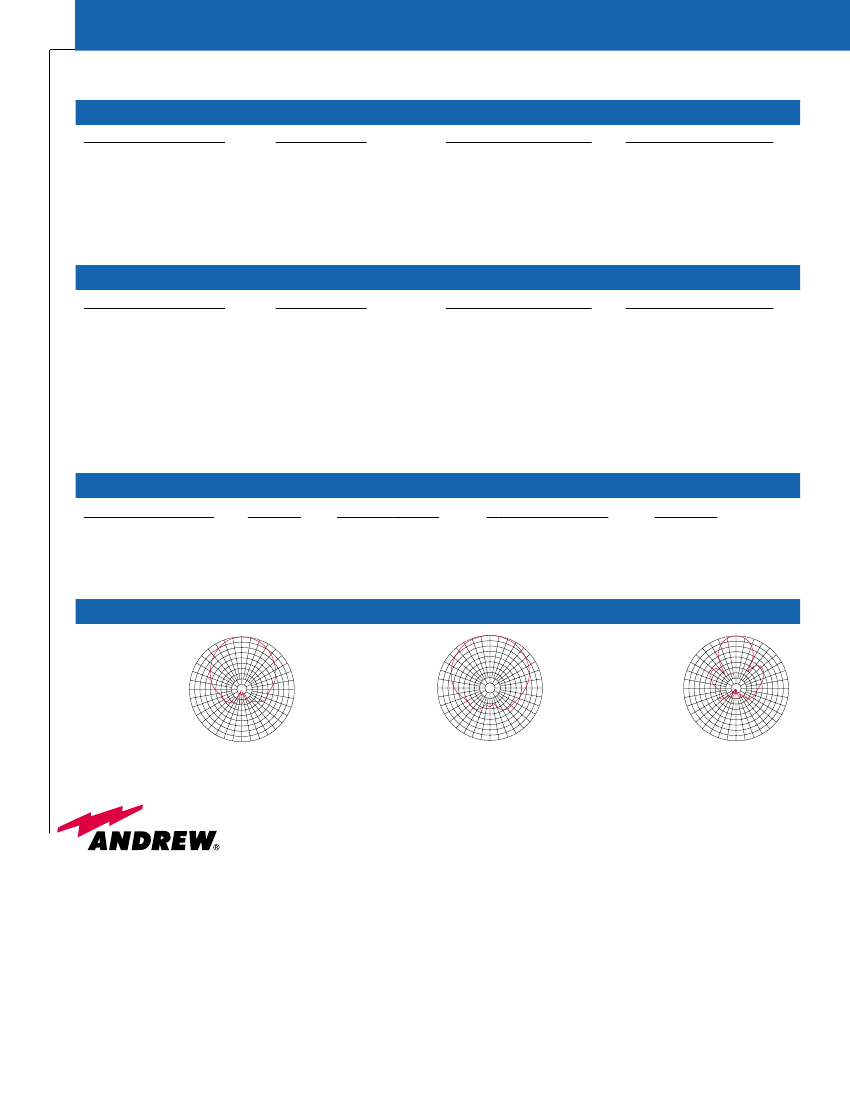

Specifications for Microceptor
®
Flat Planar Array Antennas
Electrical Specifications
Antenna Model Number
Gain (dBi)
Polarization isolation,
dB
Sidelobe suppression,
dB
-3 dB beamwidth,
(° Vr:° Hz)
-10 dB beamwidth,
(° Vr:° Hz)
Front/back ratio,
dB
Impedance,
ohms
VSWR
typical
Mechanical Specifications
Antenna Model Number
Output connector
Mounting,
in (m)
Vertical tilt
Operational wind load
Survivable wind load
Radome
Reflector type
Reflector material
Dimensions,
in (m)
Weight – Antenna,
lb (kg)
Weight – Mount,
lb (kg)
Ordering Information
Frequency band,
MHz
2100–2700
2100–2700
2400–2500
2400–2500
2400–2500
Azimuth Patterns
0
330
30
330
0
30
330
0
30
DL-2410/2412-x
11 ±1 dB
>25
>17
75:27
138:48
>25
50
1.5:1
DL-2122/2127/2400/2402-x
13 ±1 dB
>25
>17
47:27
89:46
>25
50
1.5:1
QD-2122/2127/2400/2402-x
16 ±1 dB
>30
>17
27:27
47:47
>30
50
1.5:1
DL-2410/2412-x
“N” type female
1–2 (.025–.05) O.D. pipe
0–60° (optional)
75 mph, 25 lb (11.34 kg)
140 mph, 49.4 lb (22.4 kg)
ABS
Planar array
Aluminum
7.5 x 11 (.19 x .28)
1.4 (.64)
1 (.45)
DL-2122/2127/2400/2402-x
“N” type female
1–2 (.025–.05) O.D. pipe
0–60° (optional)
75 mph, 25 lb (11.34 kg)
140 mph, 49.4 lb (22.4 kg)
ABS
Planar array
Aluminum
7.5 x 11 (.19 x .28)
1.4 (.64)
1 (.45)
QD-2122/2127/2400/2402-x
“N” type female
1–2 (.025–.05) O.D. pipe
0–60° (optional)
75 mph, 39.4 lb (17.87 kg)
140 mph, 77 lb (34.92 kg)
ABS
Planar array
Aluminum
10.75 x 11 (.267 x .28)
2 (.91)
1 (.45)
Gain,
dBi
13
16
11
13
16
With tilt Type No.
DL-2122
QD-2122
DL-2412
DL-2402
QD-2402
Without tilt Type No.
DL-2127
QD-2127
DL-2410
DL-2400
QD-2400
Packaging
DL-xxxx-1 (1 per)
DL-xxxx-10 (10 per)
QD-xxxx-1 (1 per)
QD-xxxx-10 (10 per)
300
60
300
60
300
60
270
-40
-30
-20
-10
0
90
270
-40
-30
-20
-10
0
90
270
-40
-30
-20
-10
0
90
DL-2400
240
120
DL-2410
240
120
QD-2400
210
150
180
240
120
Gain = 13.22 dBi
Frequency = 2.4 GHz
10 dB BW = 94.5 Degrees
3 dB BW = 47.2 Degrees
210
150
180
Gain = 11.24 dBi
Frequency = 2.4 GHz
10 dB BW = 138.2 Degrees
3 dB BW = 76.1 Degrees
Gain = 15.41 dBi
Frequency = 2.5 GHz
10 dB BW = 47.3 Degrees
3 dB BW = 26.4 Degrees
210
150
180
Andrew Corporation
10500 W. 153rd Street
Orland Park, IL 60462 USA
From North America:
Telephone: 1-800-255-1479
Fax: 1-800-349-5444
International:
Telephone: +1-708-873-2307
Fax: +1-708-349-5444
Customer Support
Center
From North America:
Telephone: 1-800-255-1479
Fax: 1-800-349-5444
International:
Telephone: +1-708-873-2307
Fax: +1-708-349-5444
On-Line Document Center
• view • e-mail • fax • print
One e-source for information
www.andrew.com
Fax-On-Demand
From North America:
1-800-861-1700
International:
+1-708-873-3614
Internet
www.andrew.com
All designs, specifications and availabilities of products and services presented in this bulletin are subject to change without notice.
Bulletin 10439D (9/01) Copyright © 2001 Andrew Corporation, Orland Park, IL 60462 USA
