DAC4101
Typical Values @ +25 °C
0.01 TO 4.0 GHz
ANALOG DETECTOR
DAC4101
Wide Frequency Range
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
0.01 to 4.5 GHz
Wide Power Range
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
–30.0 to +5.0 dBm
± 0.25 dB
Temperature Stability
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Flatness
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
± 0.6 dB
Low VSWR
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.5:1
Single Power Supply
Standard Size TO-8 Package
DAC4101
TO-8 Package for Detectors
SPECIFICATIONS
*
Parameter
Frequency (Min.)
Input Power Range (Min.)
VSWR (Max.)
Sensitivity, Vout (Min.)
Power Flatness (Max.)
Temperature Stability (Max.)
Output Offset Voltage,
no RF (Max.)
1 dB Square Law Departure
Tangential Sensitivity
Pulse Response,
Pin = -15 dBm
Pulse Response,
Pin = 5 dBm
Max Output Voltage
Supply Current, no RF
Supply Current,
Pin = 5 dBm
Typical
0.01-4.5 GHz
-30 to +5 dBm
1.5:1†
120 mV†
±0.6 dB^
±0.25 dB^
+0.5 mV
-10 dBm
-45 dBm^^
1.5 µsec‡
4.0 µsec‡
Vs-1 Volts
2 +mA, 2 -mA
9 +mA, 2 -mA
Guaranteed
0 to 50 °C
-55 to +85 °C
0.01-4.0 GHz
-25 to 0 dBm
1.8:1†
90 mV†
±0.75 dB^
±0.5 dB^
+2.0 mV
—
—
—
—
0.01-4.0 GHz
-25 to 0 dBm
1.8:1†
90 mV†
±0.75 dB^
±0.5 dB^
+2.0 mV
—
—
—
—
—
—
DAS4101
SMTO-8 Package for Detectors
* 50-Ohm source impedance, 2 KΩ||50 pF output load, +5 Vdc. † Pin = –15 dBm.
^ Vout = 100 mV. ^^ 3 dB NF, 1 MHz Bandwidth. ‡ 50% RF to 10 or 90% Video.
MAXIMUM RATINGS
DC Voltage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous RF Input Power
. . . . . . . . . . . . . . . . . . . . .
Operating Case Temperature
. . . . . . . . . . . . . . . . . . . .
Storage Temperature
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Burn-In Temperature
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Detector Thermal Resistance
1
(θjc) . . . . . . . . . . . . . . .
Temperature Rise @ 0 dBm
(Tjc) . . . . . . . . . . . . . . . . .
Temperature Rise @ 5 dBm
(Tjc) . . . . . . . . . . . . . . . . .
1
Thermal
+18 V
+14.0 dBm
-55 °C to +100 °C
-65 °C to +125 °C
+100 °C
+3500 °C/Watt
+3.5 °C
+35 °C
resistance is based on RF input power. Ratings based on +25 °C.
APPLICATION NOTES
This unit is DC coupled and employs a RF choke at the input (DC short). If the application
calls for the input to sink current there will be approximately an additional 1 mV of output
offset voltage for each 3 mA of current. Sink current should be limited to 100 mA max to
avoid choke burnout.
For higher supply voltages, up to ±15 volts, the positive supply pin must include a series
current limiting resistor, Rs = (Vs – 5) / 0.01 (e.g., Vs = +15v, Rs = 1.0K
Ω)
.
Average power detection is obtained at power levels below approximately –13 dBm.
For best pulse response the supply pins should be bypassed with an additional
1.0 µF capacitor. The unit contains 0.01 µF internal capacitors.

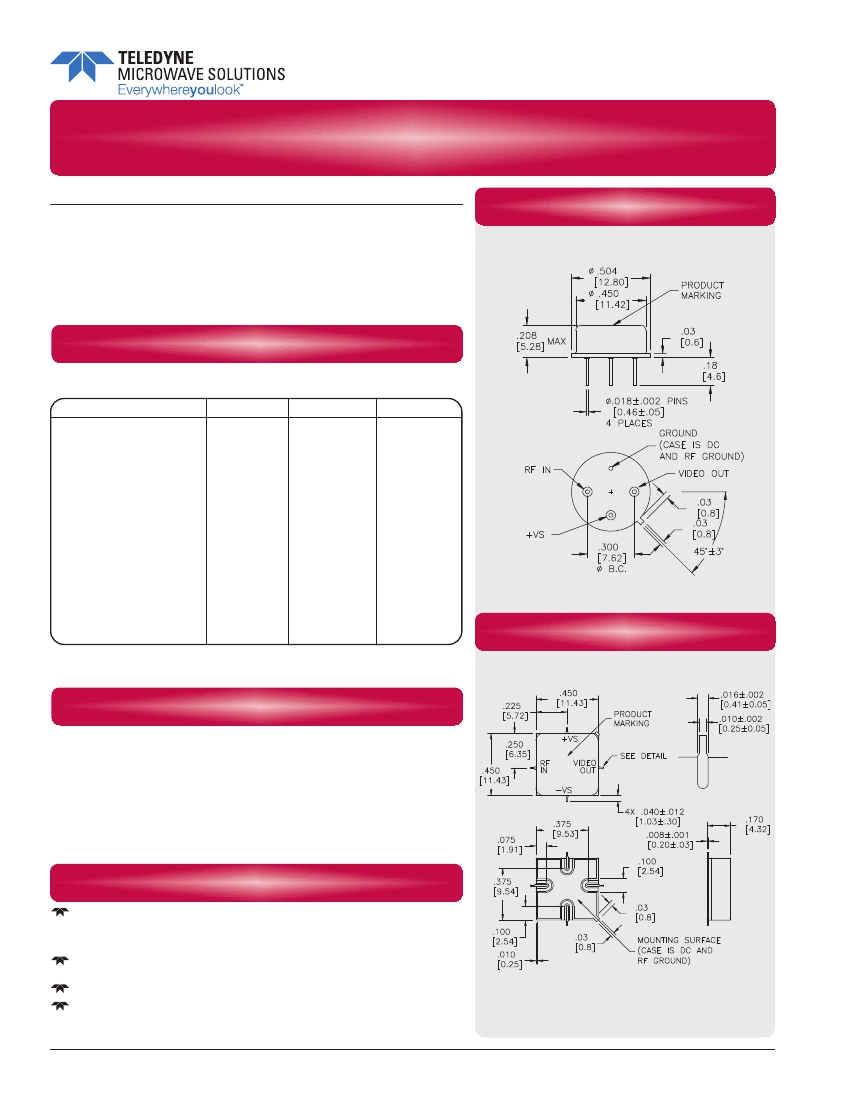

DIMENSIONS ARE IN INCHES [MILLIMETERS]
650-691-9800 • Fax: 650-962-6845 • Updates: www.teledynemicrowave.com • microwave@teledyne.com
DAC4101

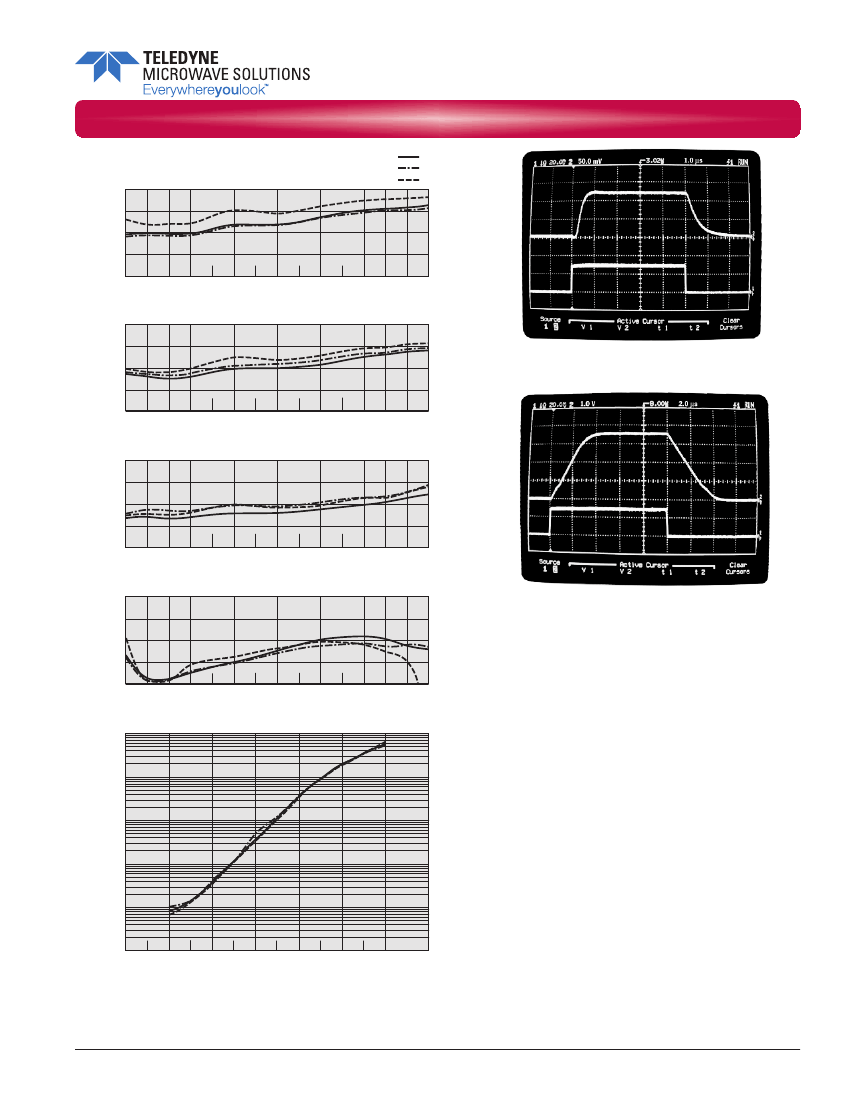

TYPICAL PERFORMANCE
Input Flatness @ Vo = 100 mV
KEY: +25 C
+85 C
-55 C
INPUT POWER - dBm
-14.0
-15.0
-16.0
-17.0
-18.0
0.01 0.06 0.1
.6
INPUT POWER - dBm
-2.0
-3.0
-4.0
-5.0
-6.0
Input Flatness @ Vo = 1.0 V
1.1
1.6
2.1
FREQUENCY - GHz
2.6
3.1
3.6
4.1
Pulse Response @ Pin = –15 dBm
0.01 0.06 0.1
.6
INPUT POWER - dBm
6.0
5.0
4.0
3.0
2.0
Input Flatness @ Vo = 3.0 V
1.1
1.6
2.1
FREQUENCY - GHz
2.6
3.1
3.6
4.1
0.01 0.06 0.1
.6
2.00
1.75
VSWR
1.50
1.25
Input VSWR @ Pin = -15 dBm
1.1
1.6
2.1
FREQUENCY - GHz
2.6
3.1
3.6
4.1
Pulse Response @ Pin = 5 dBm
1.00
0.01 0.06 0.1
.6
10.0
Transfer Curve @ 1.0 GHz
1.1
1.6
2.1
FREQUENCY - GHz
2.6
3.1
3.6
4.1
1.0
OUTPUT VOLTAGE - VOLTS
0.1
0.01
0.001
0.0001
-50
-40
-30
-20
-10
INPUT POWER - dBm
0
10
20
650-691-9800 • Fax: 650-962-6845 • Updates: www.teledynemicrowave.com • microwave@teledyne.com
