DTC6014 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DTC6014

DTC6014: DescriptionThreshold Detector, 100MHz Min, 6000MHz Max, 20dBm Input Power-Max, TO-8, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size287KB，2 Pages; ManufacturerTeledyne Technologies Incorporated; Websitehttp://www.teledyne.com/

Download Datasheet Parametric Compare View All

DTC6014 Overview

Threshold Detector, 100MHz Min, 6000MHz Max, 20dBm Input Power-Max, TO-8, 4 PIN

DTC6014 Parametric

Parameter Name	Attribute value
Maker	Teledyne Technologies Incorporated
package instruction	TO-8, 4 PIN
Reach Compliance Code	compliant
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	20 dBm
Minimum input power (CW)	-10 dBm
Maximum operating frequency	6000 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	THRESHOLD DETECTOR
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

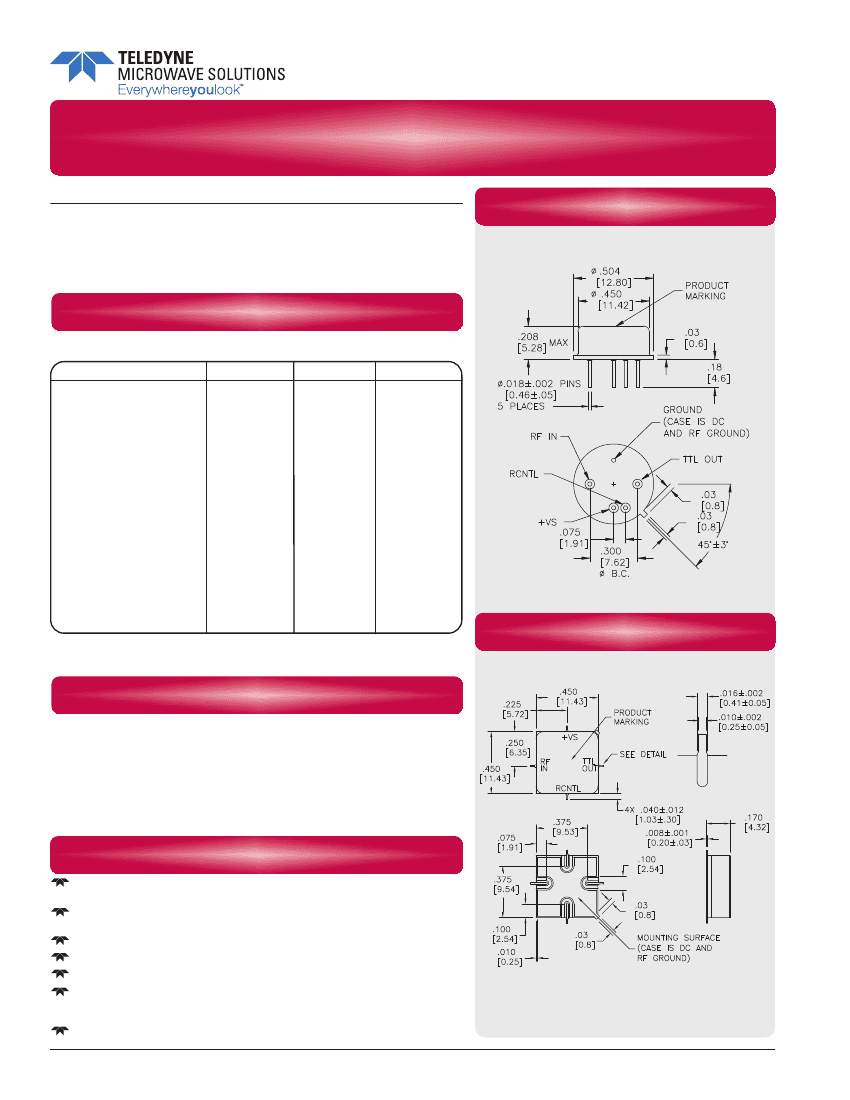

Rev. 7/10

DTS6014

Typical Values @ +25 °C

0.1 TO 6.0 GHz

THRESHOLD DETECTOR

DTS6014

Wide Frequency Range

. . . . . . . . . . . . . . . . . . . . . . . . .

0.05 to 8.0 GHz

Wide Power Range

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

-12.0 to +12.0 dBm

Fast Response Time

. . . . . . . . . . . . . . . . . . . . . . . . . . .

800

sec

TTL Output Compatibility

External Adjustable Threshold Level, Low Drift

Standard SMTO-8 Package

DTC6014

TO-8 Package for Detectors

SPECIFICATIONS

Parameter

Frequency (Min.)

Input Power Range (Min.)

VSWR (Max.)

Power Flatness (Max.)

Threshold Temperature Stability

(Max.)

@ -10 dBm Input Power

@ 0 dBm Input Power

@ +10 dBm Input Power

Pulse Response (Max.)

Rise Time (10% DC to 90% DC)

Fall Time (90% DC to 10% DC)

Total Response Time

(50% RF to 10% or 90% DC)

Supply Current (Max.)

(no RF)

Supply Current (Max.)

Pin = +5.0 dBm

Threshold Hysteresis

@ -10 to -1 dBm Input Power

@ 0 to +10 dBm Input Power

Control Terminate Current (Max.)

Output Compatibility

Typical

0.05-8.0 GHz

-12 to +12 dBm

1.5:1

±0.5 dB

±0.75 dB

±0.5 dB

±0.3 dB

360

ηsec^

800

ηsec^

2 mA

±1.0 dB†

±0.3 dB†

0.3 mA

TTL

Guaranteed

0 to 50 °C

-55 to +85 °C

0.1-6.0 GHz

-10 to +10 dBm

2.0:1

±0.75 dB

±1.0 dB

±0.75 dB

±0.6 dB

700

ηsec^

150

ηsec^

1500

ηsec^

4 mA

±1.5 dB†

±1.0 dB†

1.0 mA

TTL

0.1-6.0 GHz

-10 to +10 dBm

2.0:1

±0.75 dB

±1.0 dB

±0.75 dB

1000

ηsec^

200

ηsec^

2000

ηsec^

5 mA

±2.0 dB†

±1.5 dB†

1.0 mA

TTL

*Measured in a 50 Ohm system at +5.0 Vdc. R

=120 to 2800 Ohm unless otherwise specified.

1 MOhm

8pF

output load. ^ Input change

≥3

dBm above P threshold and applied for entire dynamic

range. † Apply for both resistance and voltage control.

DTS6014

SMTO-8 for Detectors

MAXIMUM RATINGS

DC Voltage

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Continuous RF Input Power

. . . . . . . . . . . . . . . . . . . . .

Operating Case Temperature

. . . . . . . . . . . . . . . . . . . .

Storage Temperature

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Burn-In Temperature

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Detector Thermal Resistance

(θjc) . . . . . . . . . . . . . . .

Temperature Rise @ 10 dBm

(Tjc) . . . . . . . . . . . . . . . .

Thermal

+20 V

+20.0 dBm

-55 °C to +125 °C

-65 °C to +150 °C

+150 °C

+800 °C/Watt

+8 °C

resistance is based on RF input power. Ratings based on +25 °C.

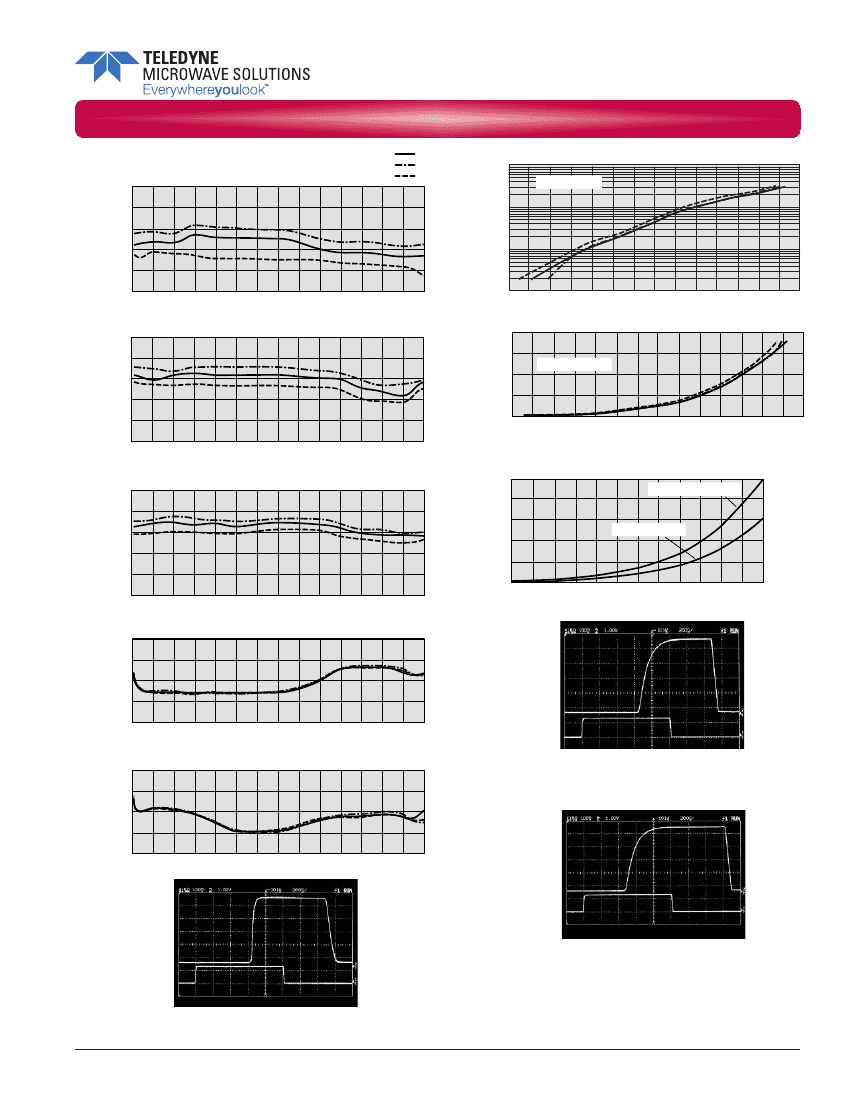

APPLICATION NOTES

DTS6014 is a sensitive microwave threshold detector which provides efficient and accurate

RF level measurement.

DTS6014 is configured using two Schottky diode detectors, high precision comparator, and

a compensated voltage reference to provide excellent temperature stability.

DTS6014 is specifically designed for system built-in test and channel RF activity monitoring.

The output of this unit is derived from a comparator, a true TTL logic device.

Average power detection is obtained at power levels below approximately 0 dBm.

DTS6014 contains open-collector comparator with internal 5.1 KOhm pull-up resistor. Pulse

response (Low-to-Hi state) can be sped up by using external pull-up resistor. Max sink cur-

rent is 6.0 mA.

Connect external threshold resistor from Rcntl port to ground.

DIMENSIONS ARE IN INCHES [MILLIMETERS]

650-691-9800 • Fax: 650-962-6845 • Updates: www.teledynemicrowave.com • microwave@teledyne.com
