LSM315G

Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 15V V(RRM), Silicon, DO-215AB, DO-215AB, 2 PIN
CategoryDiscrete semiconductor    diode
File Size101KB,2 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric Compare View All

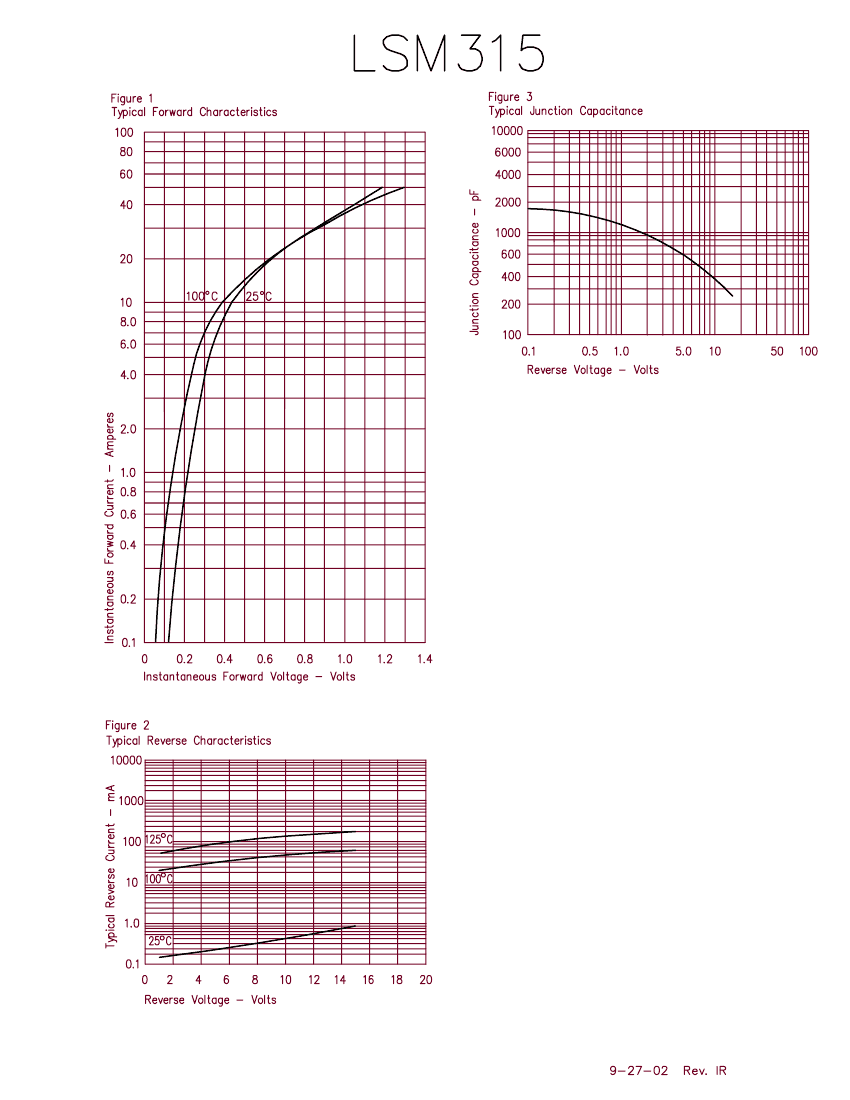

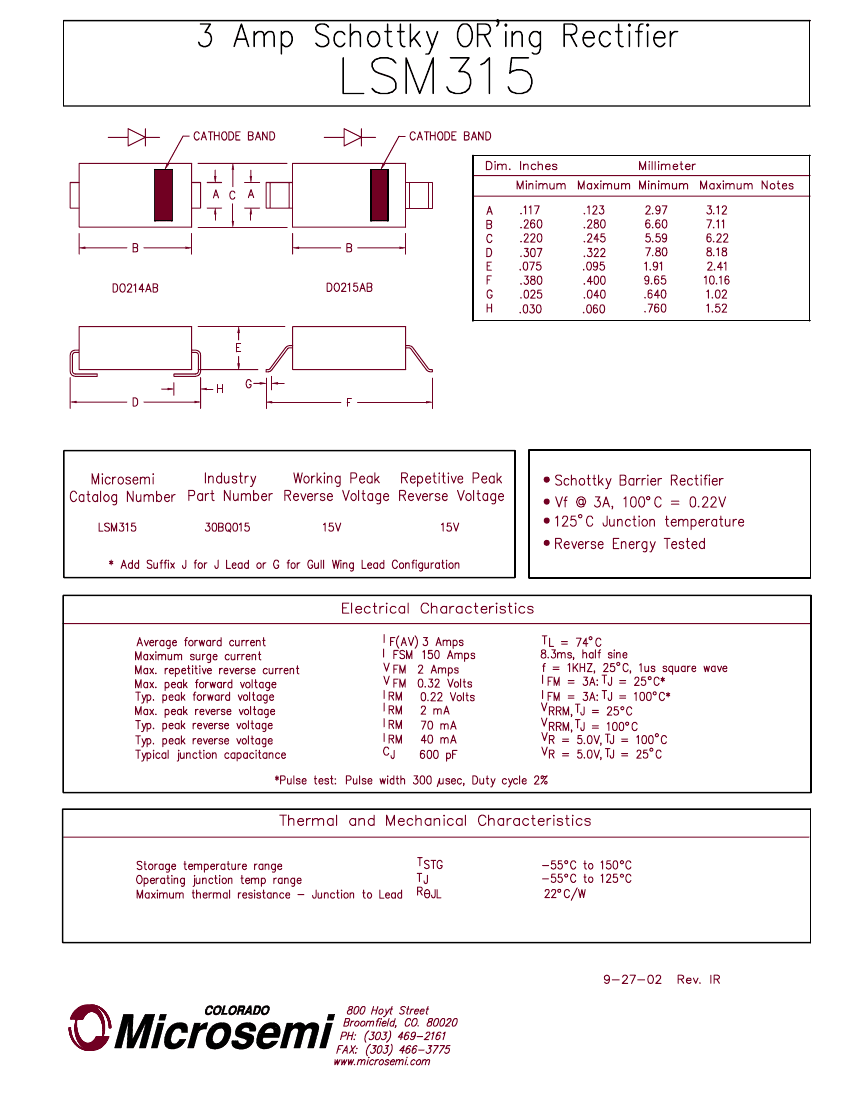

LSM315G Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 15V V(RRM), Silicon, DO-215AB, DO-215AB, 2 PIN

LSM315G Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMicrosemi
Parts packaging codeDO-215AB
package instructionDO-215AB, 2 PIN
Contacts2
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresREVERSE ENERGY TESTED
applicationGENERAL PURPOSE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.32 V
JEDEC-95 codeDO-215AB
JESD-30 codeR-PDSO-G2
JESD-609 codee0
Maximum non-repetitive peak forward current150 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Maximum output current3 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum repetitive peak reverse voltage15 V
surface mountYES
technologySCHOTTKY
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED

LSM315G Related Products

LSM315G LSM315J
Description Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 15V V(RRM), Silicon, DO-215AB, DO-215AB, 2 PIN Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 15V V(RRM), Silicon, DO-214AB, DO-214AB, 2 PIN
Is it lead-free? Contains lead Contains lead
Is it Rohs certified? incompatible incompatible
Maker Microsemi Microsemi
Parts packaging code DO-215AB DO-214AB
package instruction DO-215AB, 2 PIN DO-214AB, 2 PIN
Contacts 2 2
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Other features REVERSE ENERGY TESTED REVERSE ENERGY TESTED
application GENERAL PURPOSE GENERAL PURPOSE
Configuration SINGLE SINGLE
Diode component materials SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 0.32 V 0.32 V
JEDEC-95 code DO-215AB DO-214AB
JESD-30 code R-PDSO-G2 R-PDSO-C2
JESD-609 code e0 e0
Maximum non-repetitive peak forward current 150 A 150 A
Number of components 1 1
Phase 1 1
Number of terminals 2 2
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Maximum output current 3 A 3 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 15 V 15 V
surface mount YES YES
technology SCHOTTKY SCHOTTKY
Terminal surface TIN LEAD TIN LEAD
Terminal form GULL WING C BEND
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
