DS0874 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DS0874

DS0874: DescriptionSP4T, 0MHz Min, 2000MHz Max, 1 Func, 3.5dB Insertion Loss-Max, GAAS,; CategoryWireless rf/communication Radio frequency and microwave; File Size262KB，6 Pages; ManufacturerDAICO; Websitehttp://www.daico.com/

Download Datasheet Parametric Compare View All

DS0874 Overview

SP4T, 0MHz Min, 2000MHz Max, 1 Func, 3.5dB Insertion Loss-Max, GAAS,

DS0874 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	DAICO
package instruction	QUAD14,.3X.77
Reach Compliance Code	unknown
1dB compression point	10 dBm
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	20.97 dBm
Maximum insertion loss	3.5 dB
Minimum isolation	30 dB
JESD-609 code	e0
Installation features	THROUGH HOLE MOUNT
Number of functions	1
Number of terminals	14
on time	0.055 µs
Maximum operating frequency	2000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	QUAD14,.3X.77
port termination	ABSORPTIVE
power supply	+-5 V
RF/Microwave Device Types	SP4T
surface mount	NO
technology	GAAS
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	2

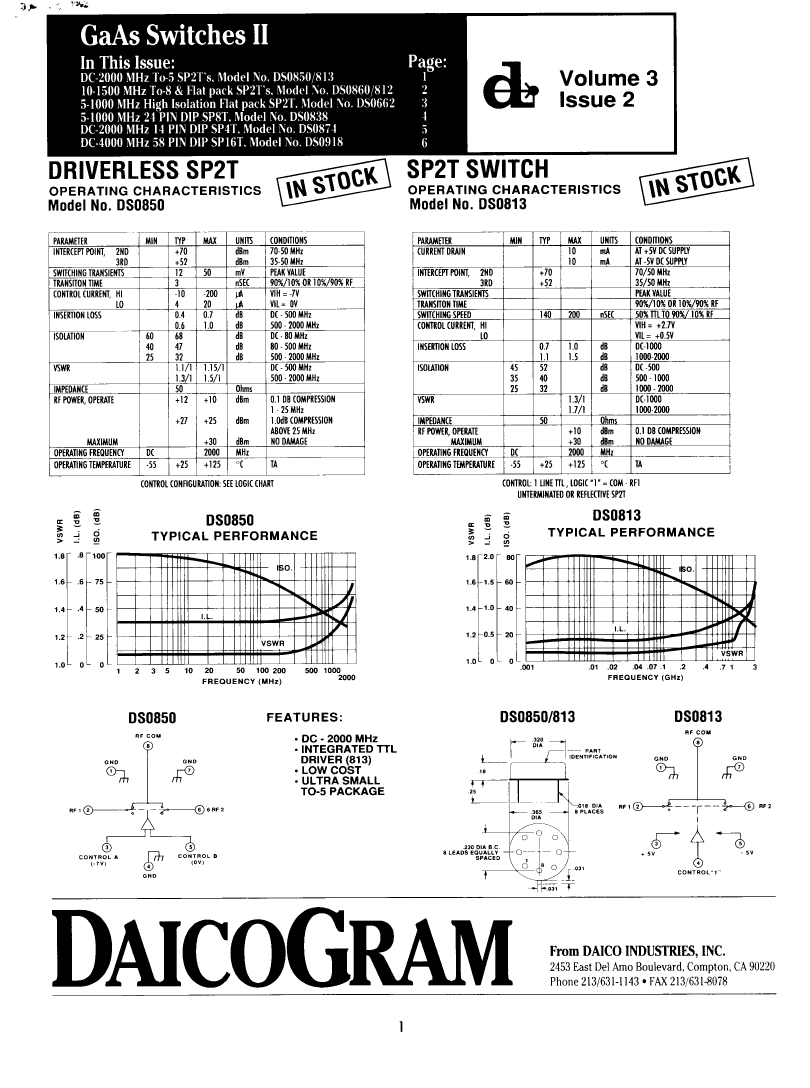

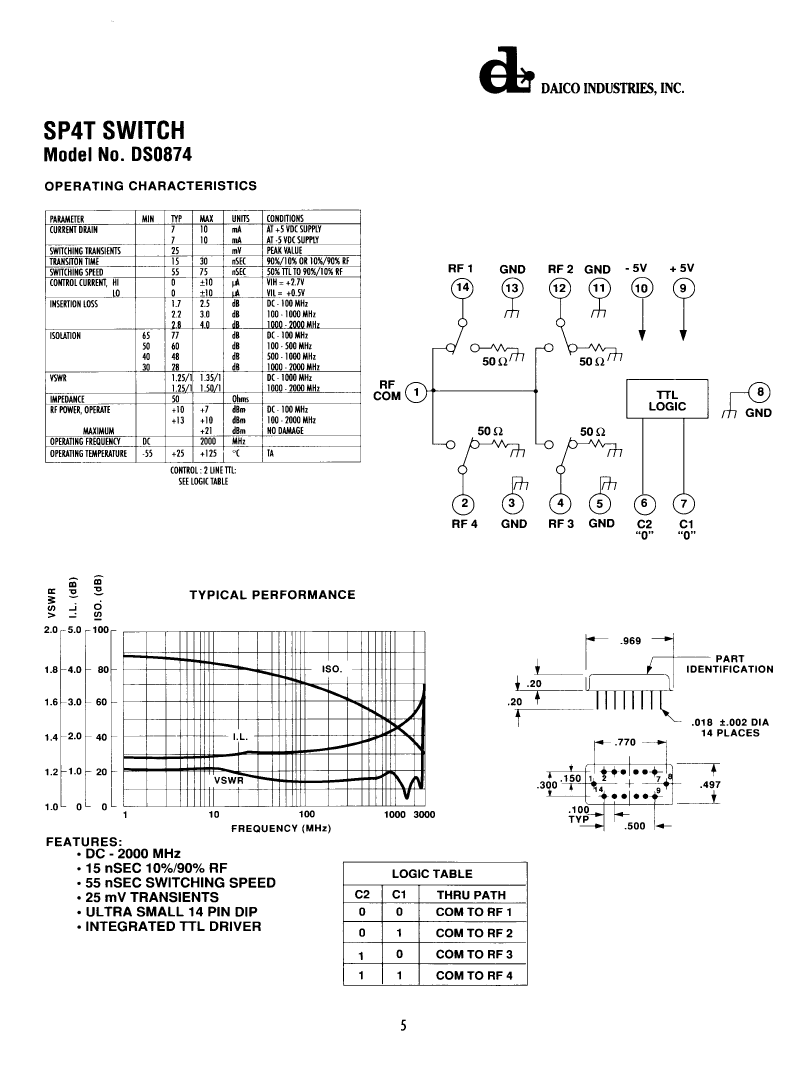

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer
