DB567K-CT: DescriptionBase Station/Broadcast Transmission Antenna, 869MHz Min, 894MHz Max, 19.15dB Gain, 60deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size114KB，1 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

DB567K-CT Overview

Base Station/Broadcast Transmission Antenna, 869MHz Min, 894MHz Max, 19.15dB Gain, 60deg 3dB Beamwidth

DB567K-CT Parametric

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
bandwidth	25 MHz
Beam Width-E	6 deg
Beamwidth-H	60 deg
Characteristic impedance	50 Ω
front to back ratio	25 dB
Gain	19.15 dB
Omnidirectional	NO
Maximum operating frequency	894 MHz
Minimum operating frequency	869 MHz
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W
Maximum voltage standing wave ratio	1.5
Commentary	100 mph

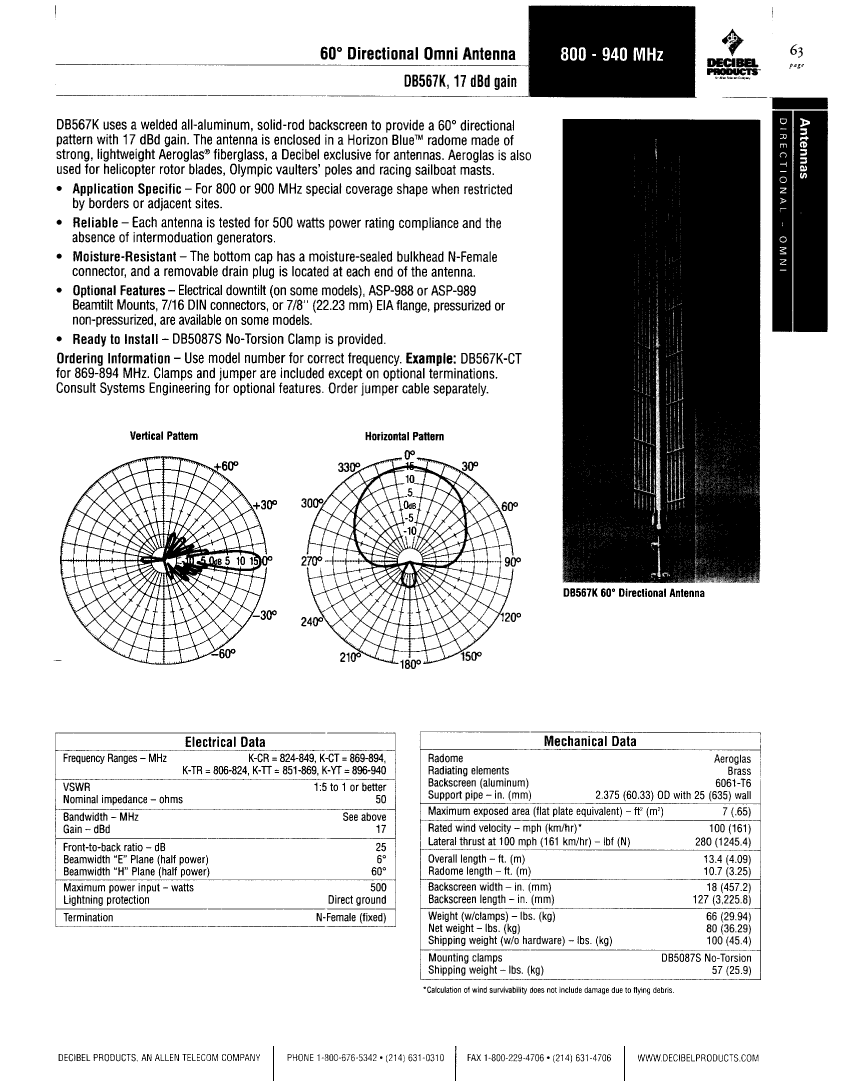

Preview

Download Datasheet

View All

DB567K-CT Related Products

	DB567K-CT	DB567K-YT	DB567K-TR	DB567K-TT	DB567K-CR
Description	Base Station/Broadcast Transmission Antenna, 869MHz Min, 894MHz Max, 19.15dB Gain, 60deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 896MHz Min, 940MHz Max, 19.15dB Gain, 60deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 806MHz Min, 824MHz Max, 19.15dB Gain, 60deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 851MHz Min, 869MHz Max, 19.15dB Gain, 60deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 824MHz Min, 849MHz Max, 19.15dB Gain, 60deg 3dB Beamwidth
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
bandwidth	25 MHz	44 MHz	18 MHz	18 MHz	25 MHz
Beam Width-E	6 deg	6 deg	6 deg	6 deg	6 deg
Beamwidth-H	60 deg	60 deg	60 deg	60 deg	60 deg
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
front to back ratio	25 dB	25 dB	25 dB	25 dB	25 dB
Gain	19.15 dB	19.15 dB	19.15 dB	19.15 dB	19.15 dB
Omnidirectional	NO	NO	NO	NO	NO
Maximum operating frequency	894 MHz	940 MHz	824 MHz	869 MHz	849 MHz
Minimum operating frequency	869 MHz	896 MHz	806 MHz	851 MHz	824 MHz
polarization	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W	500 W	500 W	500 W	500 W
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5	1.5
Commentary	100 mph	100 mph	100 mph	100 mph	100 mph
Maker	CommScope Inc	-	CommScope Inc	CommScope Inc	CommScope Inc
