LPT53-M datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LPT53-M

Preview

LPT53-M: Description3-OUTPUT 50W AC-DC REG PWR SUPPLY MODULE, ROHS COMPLIANT PACKAGE-8; CategoryPower/power management The power supply circuit; File Size199KB，3 Pages; ManufacturerEmerson Embedded Power

Download Datasheet Parametric Compare View All

LPT53-M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LPT53-M	-	-	View	Buy Now

LPT53-M Overview

3-OUTPUT 50W AC-DC REG PWR SUPPLY MODULE, ROHS COMPLIANT PACKAGE-8

LPT53-M Parametric

Parameter Name	Attribute value
Maker	Emerson Embedded Power
Parts packaging code	MODULE
package instruction	,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	IT OPERATES FROM AN AC SPLY OF 90V TO 264V; +/ TO 15V OUT ALSO AVAILABLE
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	300 V
Minimum input voltage	127 V
JESD-30 code	R-XXMA-X8
Maximum load regulation	2%
Number of functions	1
Output times	3
Number of terminals	8
Maximum operating temperature	50 °C
Minimum operating temperature
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum total power output	50 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

Embedded Power for

Business-Critical Continuity

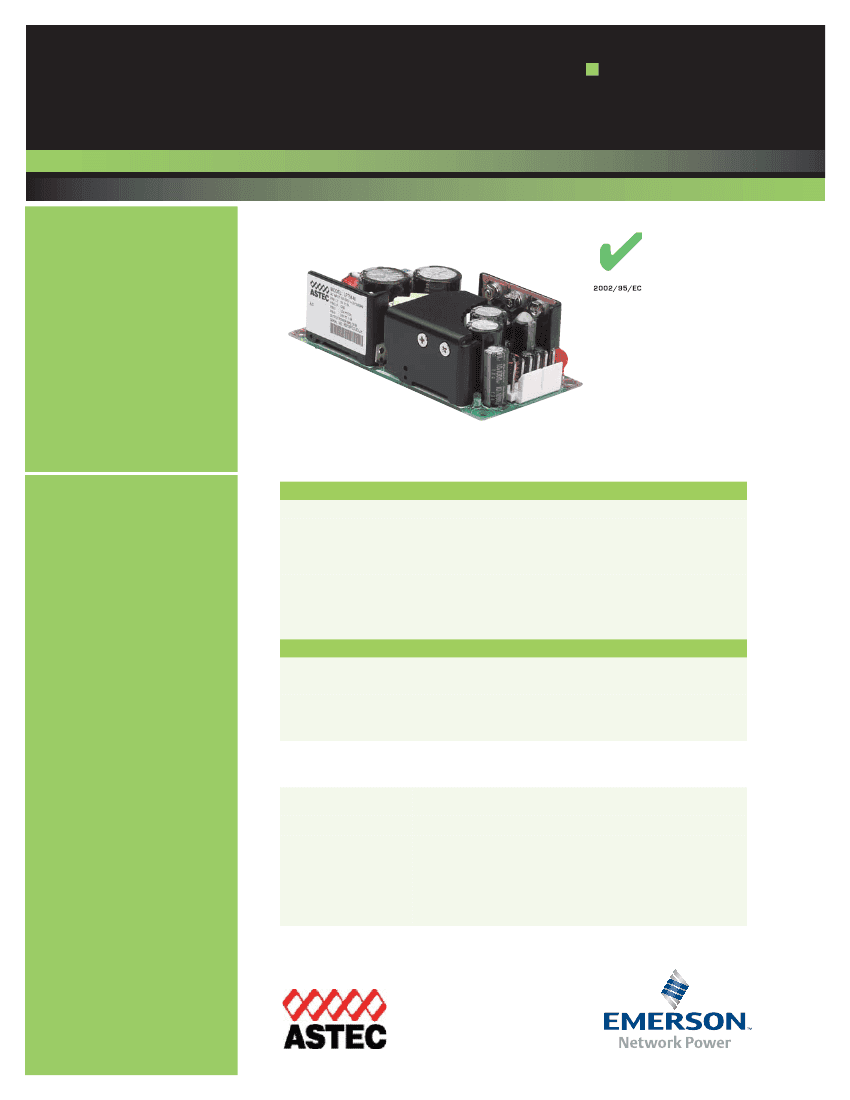

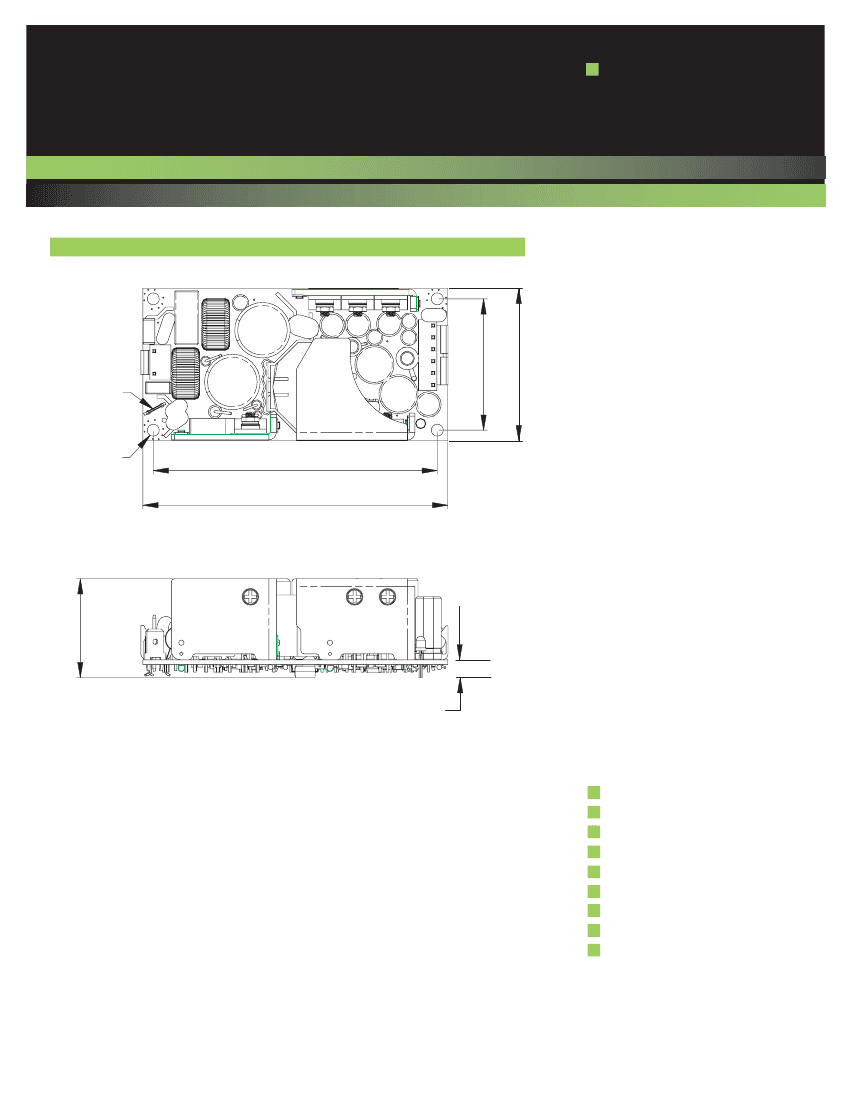

LPT50-M Series

50 Watts

Total Power:

Input Voltage:

# of Outputs:

47 - 50 Watts

90-264 VAC

127-300 VDC

Triple

Rev. 03.26.07

LPT50-M Series

1 of 3

RoHS

Electrical Specifications

Input

Special Features

• Medical Safety Approvals

• Universal input

• 2" x 4" footprint

• Less than 1U high

• Overpower and short circuit

protection

• High efficiency

• High MTBF

• Built in EMI filter

(CISPR 22 Class B)

• LED power good indicator

• Input power <74 watts

• Complies with EN61000 -3-2

• UL Class I approved

• LPX50 enclosure kit available

Input range

Frequency

Inrush current

Efficiency

EMI RFI

Safety ground

leakage current

90-264 VAC (wide range) 127-300 VDC

47-440 Hz

<60 A peak @ 230 VAC, cold start @ 25°C

80% typical at full load

FCC Class B conducted; CISPR 22 Class B conducted: EN55022

Class B conducted, EN60601-1-2

275uA @ 50/60 Hz, 264 VAC input

Output

Maximum power

50W for convection (LPT51, 47.4W)

Hold-up time

10/20 ms 115/230 VAC input line

Overpower protection Short circuit protection on all outputs

Case overpower protected @ 110 -160% of normal rating

Overvoltage protection 30-50% above nominal output

Environmental Specifications

Safety

UL

CSA

VDE

CE

UL 60601-1

CSA-C22.2 No. 601.1-M90

EN60601-1

LVD

Operating temperature: 0° to 50°C ambient. Derate each output 2.5% per degree

from 50° to 70°C. -20°C start up

Storage temperature:

-40°C to +85°C

Electromagnetic

Designed to meet EN61000-4; -2, -3, -4, -5, -6, -8, -11 Level 3

susceptibility:

Humidity:

Vibration:

MTBF demonstrated:

Operating; non-condensing 10% to 95% RH

IEC68-2-6 to the levels of IEC721-3-2

>550,000 hours at full load and 25°C ambient conditions

LPT53-M Related Products

	LPT53-M	LPT52-M	LPT54-M
Description	3-OUTPUT 50W AC-DC REG PWR SUPPLY MODULE, ROHS COMPLIANT PACKAGE-8	3-OUTPUT 50W AC-DC REG PWR SUPPLY MODULE, ROHS COMPLIANT PACKAGE-8	3-OUTPUT 50W AC-DC REG PWR SUPPLY MODULE, ROHS COMPLIANT PACKAGE-8
Maker	Emerson Embedded Power	Emerson Embedded Power	Emerson Embedded Power
Parts packaging code	MODULE	MODULE	MODULE
Contacts	8	8	8
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	IT OPERATES FROM AN AC SPLY OF 90V TO 264V; +/ TO 15V OUT ALSO AVAILABLE	IT OPERATES FROM AN AC SPLY OF 90V TO 264V; +/ TO 12V OUT ALSO AVAILABLE	IT OPERATES FROM AN AC SPLY OF 90V TO 264V; 12V &24V OUT ALSO AVAILABLE
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	300 V	300 V	300 V
Minimum input voltage	127 V	127 V	127 V
JESD-30 code	R-XXMA-X8	R-XXMA-X8	R-XXMA-X8
Maximum load regulation	2%	2%	2%
Number of functions	1	1	1
Output times	3	3	3
Number of terminals	8	8	8
Maximum operating temperature	50 °C	50 °C	50 °C
Nominal output voltage	5 V	5 V	5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Maximum total power output	50 W	50 W	50 W
Fine-tuning/adjustable output	NO	NO	NO
