FQA-FREQ1-SR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> FQA-FREQ1-SR

FQA-FREQ1-SR: DescriptionSeries - Fundamental Quartz Crystal, 11.0592MHz Min, 12MHz Max; CategoryPassive components Crystal/resonator; File Size272KB，1 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

FQA-FREQ1-SR Overview

Series - Fundamental Quartz Crystal, 11.0592MHz Min, 12MHz Max

FQA-FREQ1-SR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
Reach Compliance Code	compliant
ECCN code	EAR99
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.01%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Maximum operating frequency	12 MHz
Minimum operating frequency	11.0592 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L6XB3.5XH1.2 (mm)
Series resistance	80 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

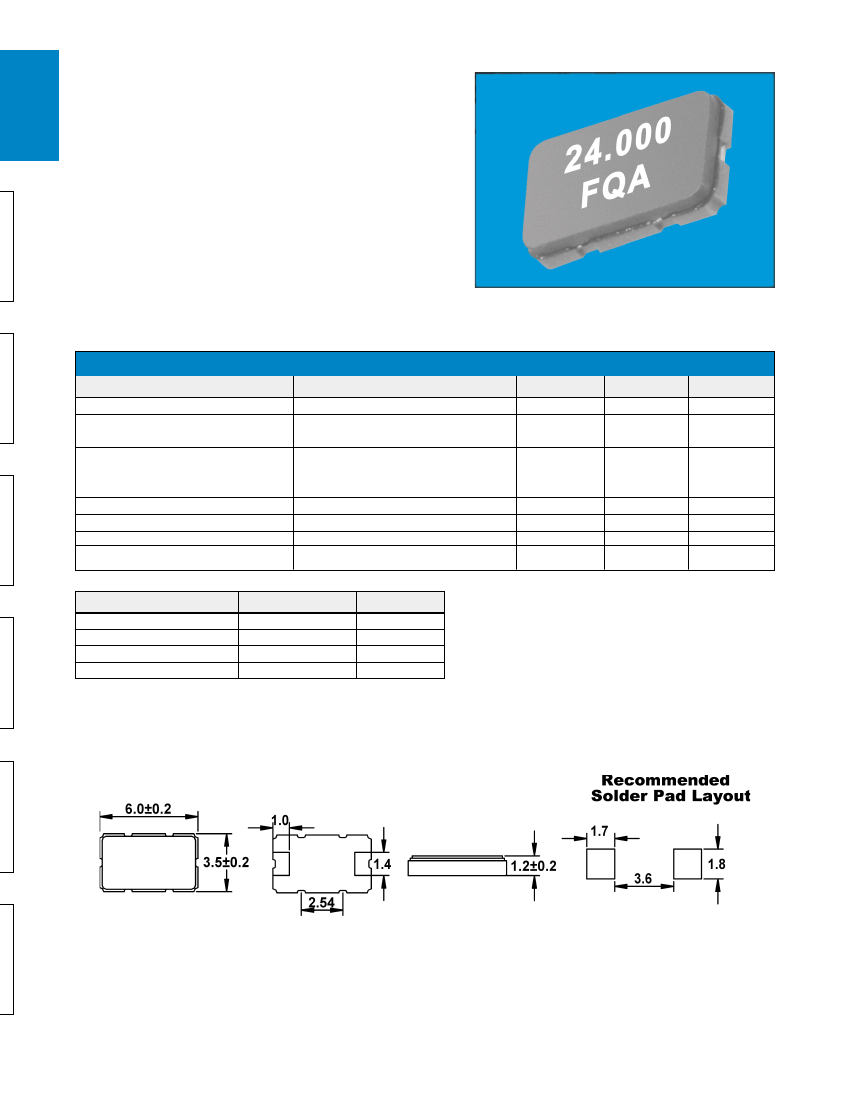

ULTRA MINIATURE CERAMIC SMD CRYSTAL

CRYSTALS

FQA

The FQA provides an ultra miniature crystal in a low cost, resin

sealed ceramic package. A fundamental mode up to 40MHz allows

ease of circuit design.

FEATURES

Low Cost

Ultra Miniature Package

1.4mm Height Max

Fundamental to 40MHz

Tape and Reel (2,000 pcs. STD)

Resin Sealed

• FQA STANDARD SPECIFICATIONS *

PARAMETERS

Frequency Range

Frequency Stability

Temperature Range

Operating

Storage

Shunt Capacitance

Load Capacitance

Drive Level

Aging

OPR

)

STG

)

(Co)

)

CONDITIONS

Ta = -10ºC ~ +60ºC

Inclusive of Tolerance at 25ºC

MIN

11.0592

-100

-10

-30

Customer Specified

Ta = 25ºC; per year

Operating Mode

Fundamental

3rd OT

Max ESR

10.0

-5.0

MAX

67.000

+100

+60

+85

7.0

Series

0.1

+5.0

UNITS

MHz

PPM

ºC

PPM

Frequency Range (MHz)

11.0592 ~ 12.000

12.000+ ~ 16.000

16.000+ ~ 40.000

40.000+ ~ 67.000

* Other stabilities & operating temperature ranges available.

Consult Fox Customer Service for specific requirements, or use crystal order form on page 6.

All specifications subject to change without notice. Rev. 05/03/00

All dimensions are in millimeters.

See page 31 for tape and reel specifications.

FOXElectronics

5570 Enterprise Parkway

Fort Myers, Florida 33905

941-693-0099

FAX 941-693-1554

http://www.foxonline.com

FQA-FREQ1-SR Related Products

	FQA-FREQ1-SR	FQA-FREQ2-SR	FQA-FREQ3-SR	FQA-FREQ-3OT-SR	FQA-FREQ-CL	FQA-FREQ-3OT-CL
Description	Series - Fundamental Quartz Crystal, 11.0592MHz Min, 12MHz Max	Series - Fundamental Quartz Crystal, 12MHz Min, 16MHz Max	Series - Fundamental Quartz Crystal, 16MHz Min, 40MHz Max	Series - 3Rd Overtone Quartz Crystal, 40MHz Min, 67MHz Max	Parallel - Fundamental Quartz Crystal, 11.0592MHz Min, 40MHz Max	Parallel - 3Rd Overtone Quartz Crystal, 40MHz Min, 67MHz Max
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Ageing	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL	SERIES - FUNDAMENTAL	SERIES - FUNDAMENTAL	SERIES - 3RD OVERTONE	PARALLEL - FUNDAMENTAL	PARALLEL - 3RD OVERTONE
Drive level	100 µW	100 µW	100 µW	100 µW	100 µW	100 µW
frequency stability	0.01%	0.01%	0.01%	0.01%	0.01%	0.01%
JESD-609 code	e4	e4	e4	e4	e4	e4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	12 MHz	16 MHz	40 MHz	67 MHz	40 MHz	67 MHz
Minimum operating frequency	11.0592 MHz	12 MHz	16 MHz	40 MHz	11.0592 MHz	40 MHz
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
physical size	L6XB3.5XH1.2 (mm)	L6XB3.5XH1.2 (mm)	L6XB3.5XH1.2 (mm)	L6XB3.5XH1.2 (mm)	L6XB3.5XH1.2 (mm)	L6XB3.5XH1.2 (mm)
surface mount	YES	YES	YES	YES	YES	YES
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Series resistance	80 Ω	60 Ω	40 Ω	70 Ω	-	-
