REVISION B
'F'
"D"
.226 5.74 (REF)
"C" EQ. SPCS @ .1575 .0050 [4.001 0.127]
= "D"
C
No. OF POSITIONS (PER ROW)
-01: 1 POSITION (SEE NOTE 5)
"D"
-02: 2 POSITIONS
-04: 4 POSITIONS
-06: 6 POSITIONS
-08: 8 POSITIONS
* -10: 10 POSITIONS
.080 2.03 (REF)
(*=NOT TOOLED)
LEAD STYLE
-05.0: SEE TABLES 1, 4 & 5
IJ5-XX-05.0-X-X-X-TR
PACKAGING
-TR: TAPE & REEL
(SEE NOTE 3)
TAIL OPTIONS
-1: .062" THICK BOARD
ROW
-S: SINGLE ROW
-D: DOUBLE ROW
(SEE NOTE 5)
B
ITJ5-05.0-X-X (TYP)
DO NOT
SCALE FROM
THIS PRINT
B
.1575 .0050 [4.001 0.127] (REF)
"B" (REF)
"A" (REF)
"F" (REF)
"A"
IJ-XX-05.0-S-GP
.055 1.38 (REF)
PLATING OPTIONS
-L: 10µ" SELECTIVE GOLD IN
CONTACT AREA,
MATTE TIN ON TAIL
.256 6.50 (REF)
.296 7.52 (REF)
.238 6.05 (REF)
C
"E"
"B"
"A"
"B"
C
.114 2.89
0°±.5° SWAY
(EITHER DIRECTION)
.052 1.32
(REF)
.035 0.89
(REF)
"C" EQ. SPCS @ .1575 .0050 [4.001 0.127]
= "D"
C
(IJ5-04-05.0-L-S-X-GP SHOWN)
FIG 1
PIN 1 INDICATOR
PARTIAL VIEW "D"-"D"
SCALE 3 : 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [MILLIMETERS]
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
TOLERANCES ARE:
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSH OUT FORCE .5 LBS. [0.23 Kg.]
3. FOR QUANTITIES UP TO 49 PCS., NO LEADER, TRAILER OR REEL WILL BE SUPPLIED,
FOR QUANTITIES OF 50 TO 124 PCS., NO LEADER OR TRAILER WILL BE SUPPLIED.
4. GUIDE POST NOT AVAILABLE WHEN USED TO MAKE A ASSEMBLED
7MM STACK HEIGHT ASSEMBLY. (SEE SHEET 2, FIG. 3)
5. -1 POSITION NOT AVAILABLE WITH -D ROW OPTION.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0030 [.076]
MATERIAL:
DECIMALS
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
BODY: HIGH TEMP NYLON, COLOR: BLACK
SHIELD: COPPER ALLOY
CONTACT: COPPER ALLOY
DIELECTRIC: LCP, COLOR: BLACK
F:\DWG\MISC\MKTG\IJ5-XX-05.0-X-X-X-TR-MKT.SLDDRW

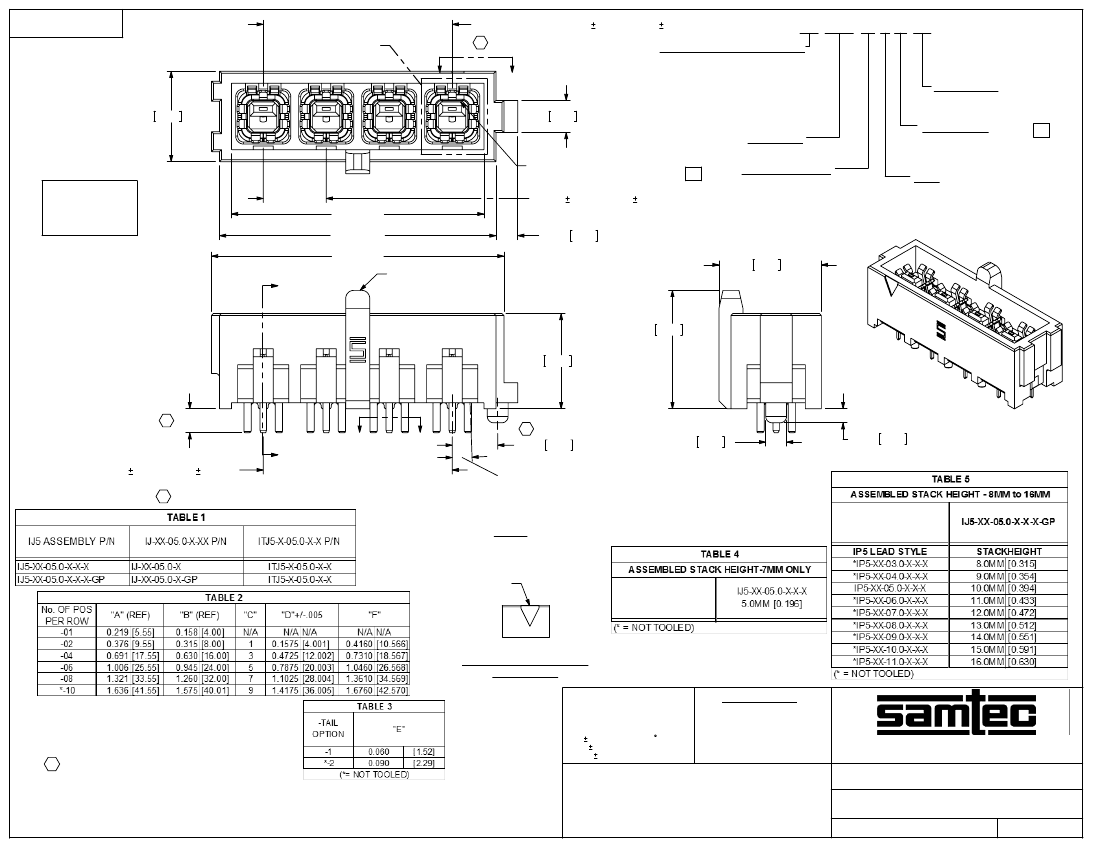

CONTACT ARRAY ASSEMBLY, IJ5 CONNECTOR
DWG. NO.
DESCRIPTION:
IJ5-XX-05.0-X-X-X-TR
11/20/2007
SHEET
1
OF
2
BY:
PIERCE
REVISION B
.031 0.80 (TYP)
(REF)
.0160 0.41 SQ.
(REF)
IJ-XX-05.0-X
.060 1.52
(REF)
ITJ5-05.0-X-X (TYP)
.078 1.99 (REF)
.226 5.74 (REF)
.060 1.52
(REF)
.018 0.46
(REF)
.130 3.30 (REF)
.018 0.46
(REF)

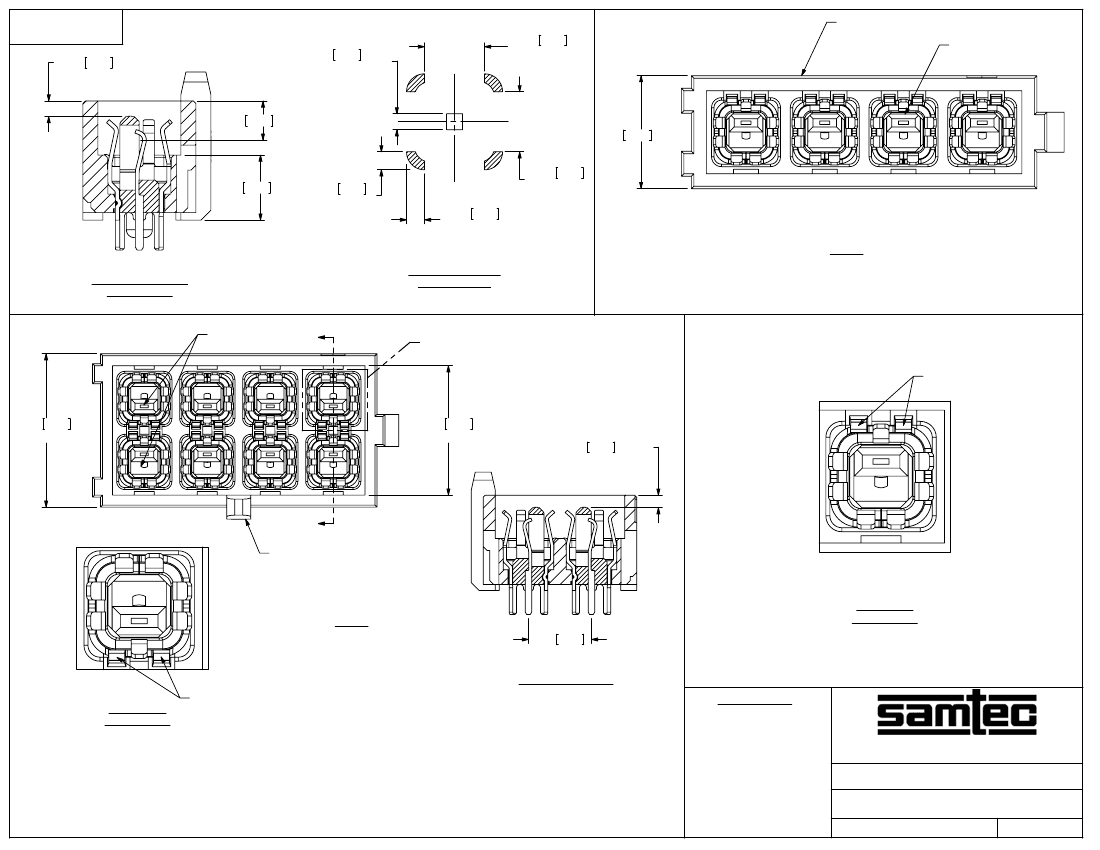

SECTION "A"-"A"
SCALE 5 : 1
ITJ5-05.0-X-X
"C"
SECTION "B"-"B"
SCALE 10 : 1
(IJ5-04-05.0-X-S-X SHOWN)
(NO GUIDE POST - SEE NOTE 4)
(SAME AS FIG 1 EXCEPT AS SHOWN)
FIG 3
'E'
LATCH SIDE
.383 9.74
(REF)
.323 8.22
(REF)
.031 0.80 (TYP)
(REF)
"C"
IJ-XX-05.0-D-GP
(IJ5-04-05.0-X-D-X-GP SHOWN)
(SAME AS FIG.1 EXCEPT AS SHOWN)
FIG.2
DETAIL 'F'
SCALE 8 : 1
.157 4.00
(REF)
SECTION "C"-"C"
DETAIL 'E'
SCALE 8 : 1
LATCH SIDE
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
CONTACT ARRAY ASSEMBLY, IJ5 CONNECTOR
DWG. NO.
DESCRIPTION:
IJ5-XX-05.0-X-X-X-TR
11/20/2007
SHEET
2
OF
2
F:\DWG\MISC\MKTG\IJ5-XX-05.0-X-X-X-TR-MKT.SLDDRW
BY:
PIERCE
