M83513/09-B03

Description
D MICROMINIATURE CONNECTOR
CategoryThe connector    The connector
File Size122KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

M83513/09-B03 Overview

D MICROMINIATURE CONNECTOR

M83513/09-B03 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8000663660
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL8.68
Other featuresSTANDARD: MIL-DTL-83513
body width0.208 inch
subject depth0.195 inch
body length0.928 inch
Body/casing typeRECEPTACLE
Cable typeSTRANDED
Connector typeD MICROMINIATURE CONNECTOR
Contact arrangementS15P0
Contactor designPREASSEM CONN
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeSTAGGERED
Contact resistance8 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Durability500 Cycles
Electromagnetic interference shieldingNO
empty shellYES
Filter functionNO
IEC complianceNO
maximum insertion force2.78 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialPOLYPHENYLENE SULFIDE
MIL complianceNO
Power Connector Ratings115/230VAC
Plug contact pitch0.05 inch
Match contact row spacing0.043 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1HOLE .096
Installation typeCABLE
Number of connectorsONE
Number of ports1
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Panel mountingNO
Plating thickness50u inch
Rated current (signal)3 A
GuidelineMIL
Housing sizeB
Terminal length18 inch
Termination typeCRIMP
Total number of contacts15
Maximum wire diameter24 AWG
Minimum wire diameter26 AWG
Evacuation force-minimum value0.139 N
This browser does not have Java enabled.
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
Have a Question?
Chat with a Product
Information Specialist
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center

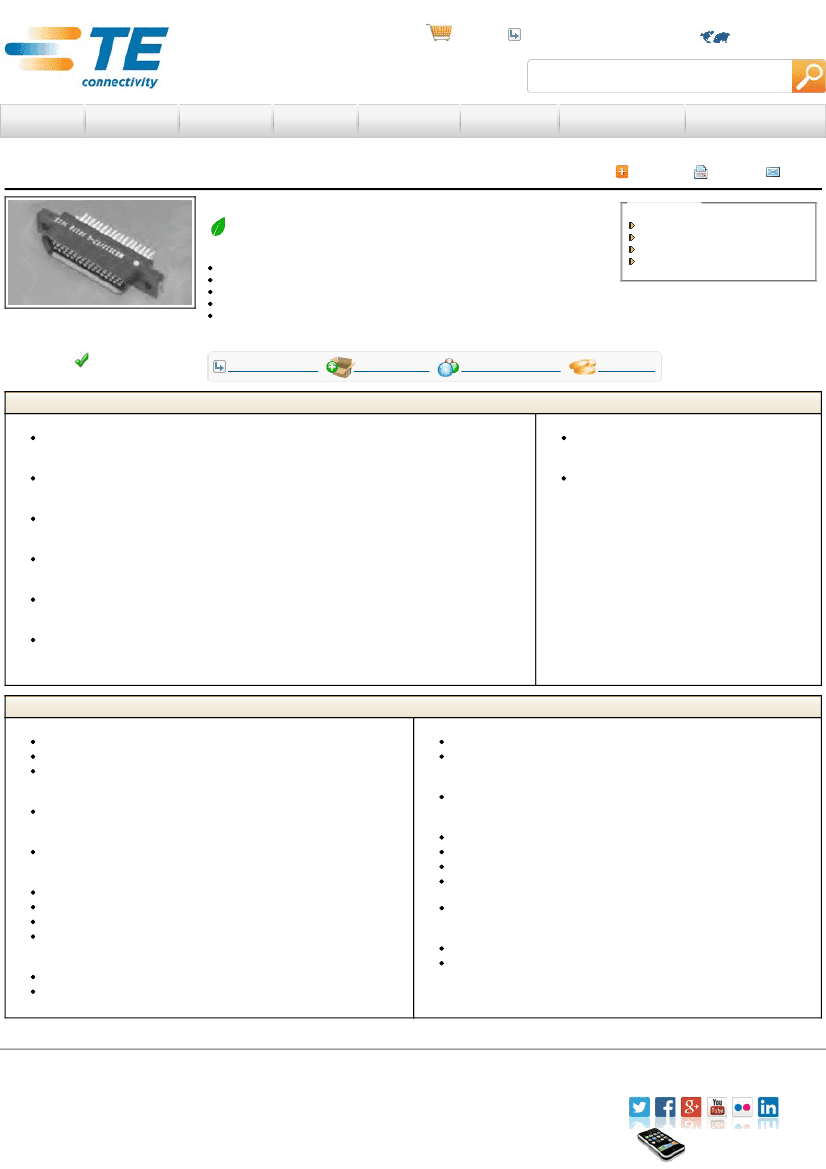

Home > Products > Pin & Socket Connectors > Product Feature Selector > Product Details
M83513/09­B03 Product Details
Microminiature D Connectors

Always EU RoHS/ELV Compliant
 (
Statement of Compliance
)
Product Highlights:
Connector
Connector Design = Cable Connector
Connector Style = Receptacle
Contact Type = Socket
Product Series = MCD (All Plastic)
View all Features
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
M83513/09­B03
(3­1532021­8)
TE Internal Number: 3­1532021­8
 Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Product Drawings:
MCD PER MIL­PRF­83513 (PDF, English)
Catalog Pages/Data Sheets:
None Available
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files:
None Available
Additional Information:
Product Line Information
Related Products:
Tooling
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Product Type = Connector
Connector Design = Cable Connector
Product Series = MCD (All Plastic)
Mechanical Attachment:
Mounting Hardware = None
Dimensions:
Lead Length (mm [in]) = 457.20 [18.000]
Body Features:
Wire Size (AWG/CM) = 26 AWG
Wire Type = 19 strand per MIL­C­22759/11
Mount Type = Screw
Insulation Color = 10 solid color repeating per M­85513
Contact Features:
Contact Type = Socket
Contact Style = Wire Termination
Housing Features:
Connector Style = Receptacle
Housing Material = Polyphenylene Sulfide (PPS)
Configuration Features:
Number of Positions = 15
Industry Standards:
Government/Industry Qualification = Yes
Government/Industry Part Number = M83513/09­B03
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Wave solder capable to 240°C, Wave
solder capable to 260°C, Wave solder capable to 265°C
RoHS/ELV Compliance History = Always was RoHS compliant
Other:
Brand = Microdot
Comment = Also available in commercial grade.
