DGP30W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DGP30W

DGP30W: DescriptionDAMPER SINTERED GLASS JUNCTION PLASTIC RECTIFIER VOLTAGE:1500V CURRENT: 3.0A; CategoryDiscrete semiconductor diode; File Size139KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Parametric View All

DGP30W Overview

DAMPER SINTERED GLASS JUNCTION PLASTIC RECTIFIER VOLTAGE:1500V CURRENT: 3.0A

DGP30W Parametric

Parameter Name	Attribute value
Maker	Gulf Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	unknow
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	1500 V
Maximum reverse current	5 µA
Maximum reverse recovery time	1 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

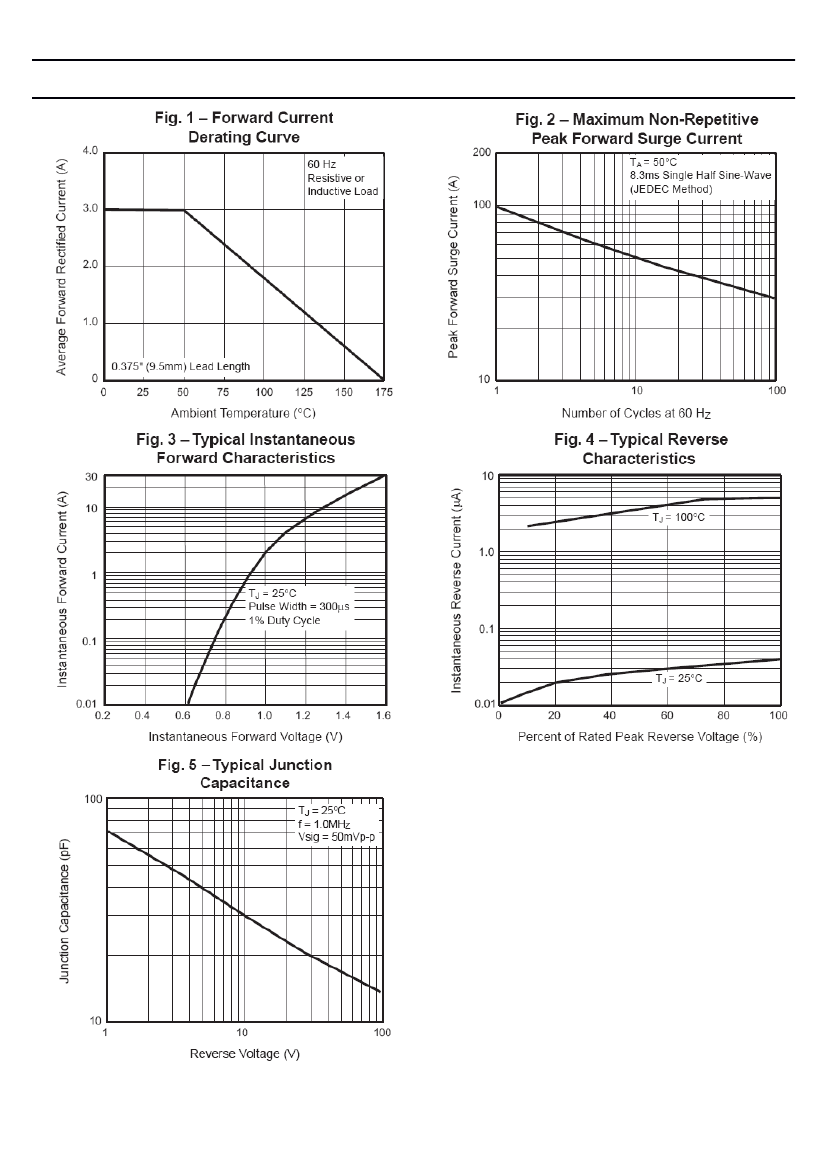

DGP30W

DAMPER SINTERED GLASS JUNCTION

PLASTIC RECTIFIER

VOLTAGE:1500V

CURRENT: 3.0A

FEATURE

Specially designed for clamping circuits, horizontal deflection

systems and damper applications

High temperature metallurgically bonded construction

3.0 ampere operation at Ta=50℃ with no thermal runaway

Sintered glass cavity free junction

Capable of meeting environmental standard of MIL-S-19500

High temperature soldering guaranteed

350°C /10sec/0.375”lead length at 5 lbs tension

Operate at Ta

=55°C

with no thermal run away

Typical Ir<0.1µA

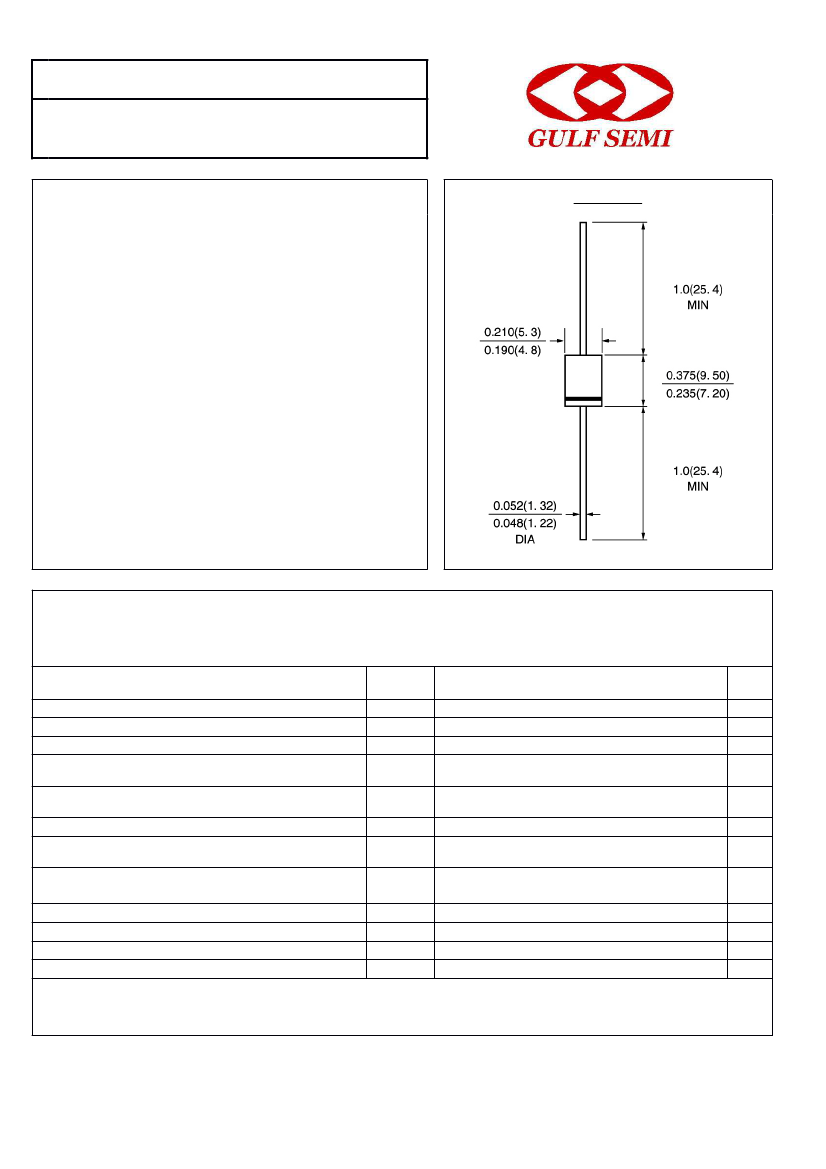

DO-201AD

MECHANICAL DATA

Terminal: Plated axial leads solderable per

MIL-STD 202E, method 208C

Case: Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity: color band denotes cathode

Mounting position: any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated,

for capacitive load, derate current by 20%)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified Current 3/8”lead

length at Ta =50℃

Peak Forward Surge Current 8.3ms single Half sine-

wave superimposed on rated load at Ta=50℃

Maximum Instantaneous Forward Voltage at 3.0A

Maximum full load reverse current full cycle average

0.375”(9.5mm) lead length at Ta=70℃

Maximum DC Reverse Current

Ta =25℃

at rated DC blocking voltage

Ta =100℃

Typical Reverse Recovery Time

(Note 1)

Typical Junction Capacitance

(Note 2)

Typical Thermal Resistance

(Note 3)

Storage and Operating Junction Temperature

Note:

1. Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

2. Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

3. Thermal Resistance from Junction to Ambient at 0.375”(9.5mm) lead length, with leads attached to heat sink

DGP30W

1500

1050

1500

3.0

100.0

1.2

200.0

5.0

100.0

1.0

40.0

20.0

-65 to +175

units

µA

µS

℃/W

℃

Vrrm

Vrms

Vdc

If(av)

Ifsm

Ir(av)

Trr

Rth(ja)

Tstg, Tj

Rev.A1

www.gulfsemi.com
