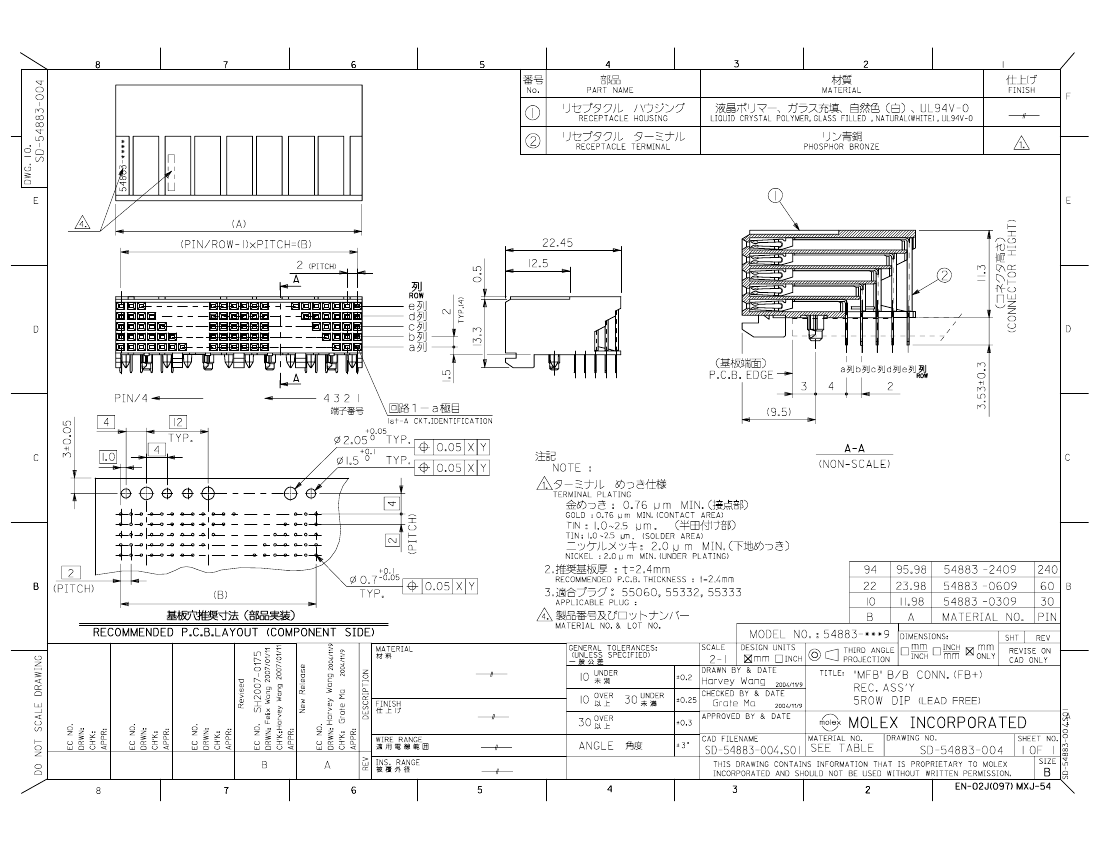

Board Connector, 240 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE
| Parameter Name | Attribute value |
| Maker | Molex |
| package instruction | LEAD FREE |
| Reach Compliance Code | unknown |
| Board mount options | PEG |
| body width | 0.524 inch |
| subject depth | 0.884 inch |
| body length | 3.779 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 50 mΩ |
| DIN compliance | NO |
| Dielectric withstand voltage | 1050VAC V |
| Durability | 250 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 1.0008 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | NATURAL |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| MIL compliance | NO |
| Manufacturer's serial number | 54883 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 5 |
| Number of rows loaded | 5 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.139 inch |
| Terminal pitch | 2 mm |
| Termination type | SOLDER |
| Total number of contacts | 240 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .139 N |
| 54883-2409 | 54883-0609 | |
|---|---|---|
| Description | Board Connector, 240 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE | Board Connector, 60 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE |
| package instruction | LEAD FREE | LEAD FREE |
| Reach Compliance Code | unknown | unknown |
| Board mount options | PEG | PEG |
| body width | 0.524 inch | 0.524 inch |
| subject depth | 0.884 inch | 0.884 inch |
| body length | 3.779 inch | 0.944 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI | NOT SPECIFIED |
| Contact completed and terminated | TIN OVER NICKEL | TIN OVER NICKEL |
| Contact point gender | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR |
| Contact resistance | 50 mΩ | 50 mΩ |
| DIN compliance | NO | NO |
| Dielectric withstand voltage | 1050VAC V | 1050VAC V |
| Durability | 250 Cycles | 250 Cycles |
| Filter function | NO | NO |
| IEC compliance | NO | NO |
| maximum insertion force | 1.0008 N | 1.0008 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω |
| Insulator color | NATURAL | NATURAL |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER |
| MIL compliance | NO | NO |
| Manufacturer's serial number | 54883 | 54883 |
| Plug contact pitch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch |
| Mixed contacts | NO | NO |
| Installation option 1 | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD |
| Number of connectors | ONE | ONE |
| PCB row number | 5 | 5 |
| Number of rows loaded | 5 | 5 |
| Maximum operating temperature | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm |
| Plating thickness | 30u inch | 30u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 1 A | 1 A |
| Guideline | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.139 inch | 0.139 inch |
| Terminal pitch | 2 mm | 2 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 240 | 60 |
| UL Flammability Code | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .139 N | .139 N |
