GBU10A THRU
GBU10M
SINGLE PHASE GLASS
PASSIVATED BRIDGE RECTIFIER
Voltage: 50
to
1000V
Current: 10.0A
Features
Ideal for printed circuit board
Glass passivated chip junction
High case dielectric strength
High surge overload rating
This series is UL listed under Recognized Component Index,
file number E230084
GBU
Mechanical Data
Terminal: Plated leads solderable per MIL-STD 202E, method
208C
Case: UL-94 Class V-0 recognized Flame Retardant Epoxy
Polarity: Polarity symbol marked on body

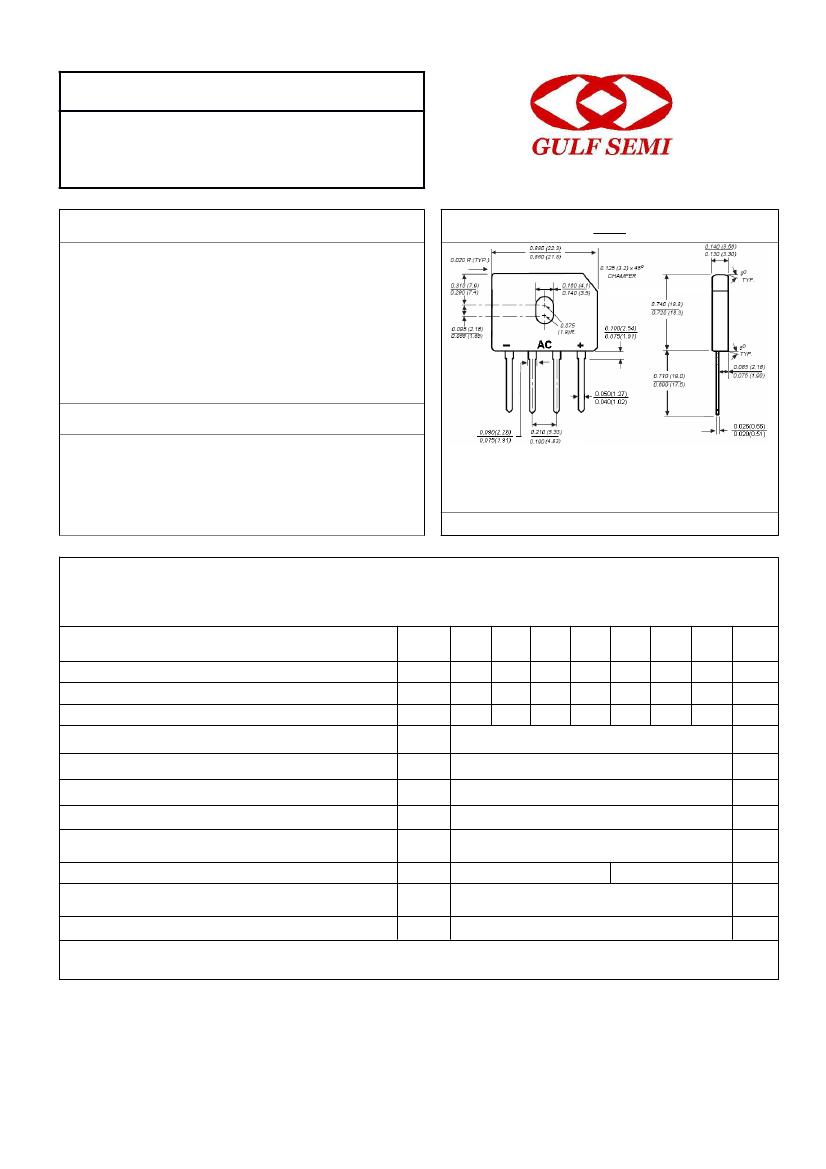

Dimensions in millimeters
MAXIMUM
RATINGS AND ELECTRICAL
CHARACTERISTICS
(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated,
for capacitive load, derate current by 20%)
Symbol
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified output current at Tc =
100℃
(Note 1)
Peak forward surge current single sine-wave superimposed
on rated load (JEDEC Method)
Maximum instantaneous forward voltage drop per leg at 5A
Rating for fusing (t < 8.3ms)
Maximum DC reverse current at
rated DC blocking voltage per leg
Typical junction capacitance per leg at 4V,1MHz
Maximum thermal resistance per leg
Operating junction and storage temperature range
(Note1)
(Note2)
Ta = 25°
C
Ta = 125°
C
Vrrm
Vrms
Vdc
If(av)
Ifsm
Vf
I
2
t
Ir
Cj
Rth(ja)
Rth(jc)
Tj, Tstg
211
21
2.0
-55 to +150
GBU
10A
50
35
50
GBU
10B
100
70
100
GBU
10D
200
140
200
GBU
10G
400
280
400
10.0
220
1.0
200
5.0
500
94
GBU
10J
600
420
600
GBU
10K
800
560
800
GBU
10M
1000
700
1000
units
V
V
V
A
A
V
A
2
Sec
µA
pF
℃/W
℃

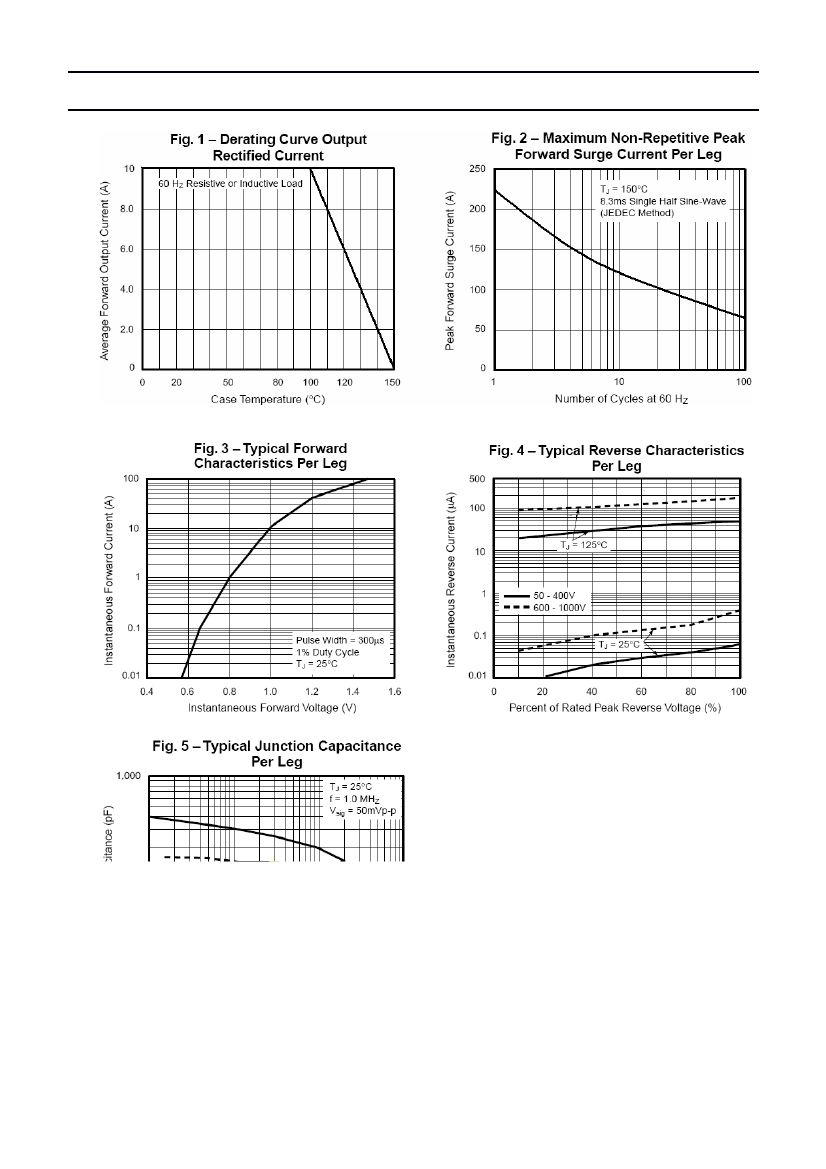

Note:
1. Unit mounted in free air no heat sink on P.C.B. 0.5 x 0.5” (12 x12 mm) copper pads, 0.375”(9.5mm) lead length
2. Device mounted on 4 x 6 x 0.25" Al-plate heatsink
Rev.A1
www.gulfsemi.com
