LLD01: DescriptionSINGLE PHASE GLASS PASSIVATED SURFACE MOUNT FLAT BRIDGE RECTIFIER VOLTAGE: 50 TO 1000V CURRENT: 0.8A; File Size186KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Compare View All

LLD01 Overview

SINGLE PHASE GLASS PASSIVATED SURFACE MOUNT FLAT BRIDGE RECTIFIER VOLTAGE: 50 TO 1000V CURRENT: 0.8A

Preview

Download Datasheet

View All

LLD005 THRU LLD10

SINGLE PHASE GLASS PASSIVATED

SURFACE MOUNT FLAT BRIDGE RECTIFIER

VOLTAGE: 50 TO 1000V

CURRENT: 0.8A

FEATURE

Low profile space

Ideal for automated placement

Glass passivated chip

Low forward voltage drop

Low leakage current

High forward surge capability

High temperature soldering:260℃/10 seconds at terminals

LDF

MECHANICAL DATA

Terminal: Plated leads solderable per

MIL-STD 202E, method 208C

Case:UL-94 Class V-0 recognized Flame Retardant Epoxy

Polarity: Polarity symbol marked on body

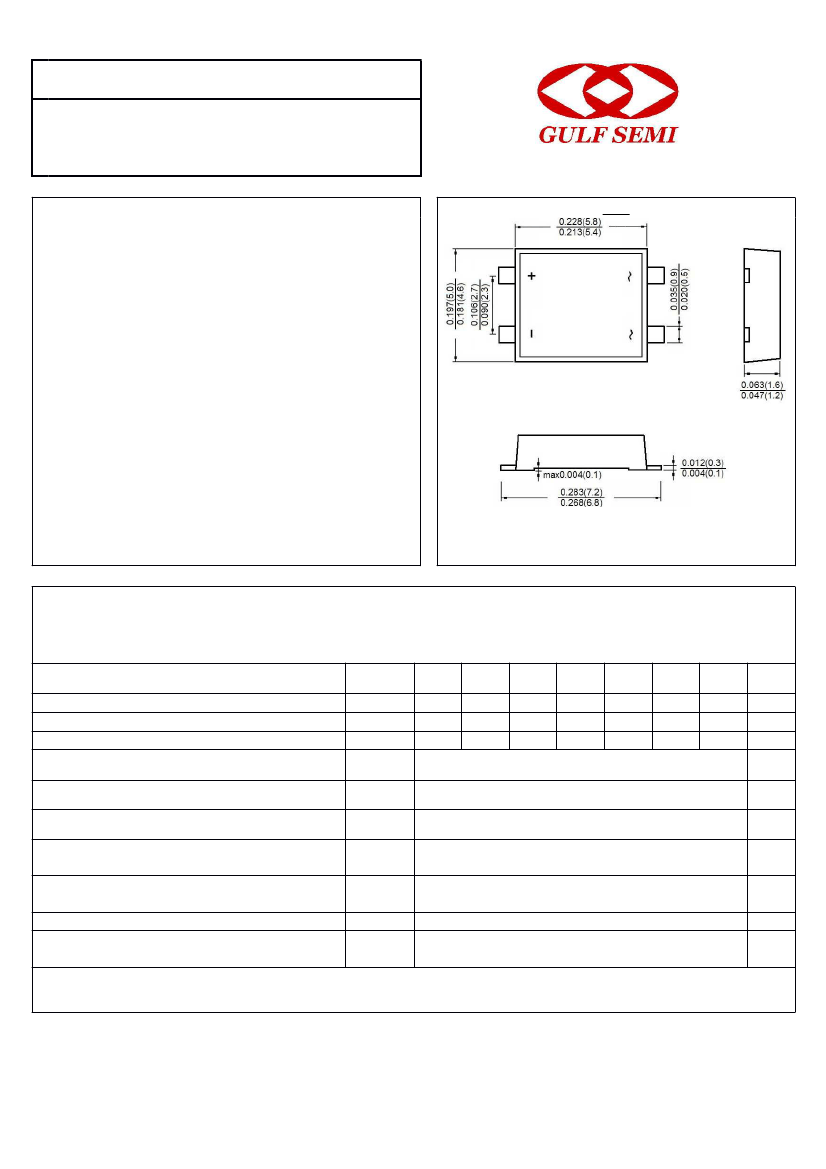

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated,

for capacitive load, derate current by 20%)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified Current at

Ta =40°C

Peak Forward Surge Current 8.3ms single half

sine-wave superimposed on rated load

Maximum Instantaneous Forward Voltage at

forward current 0.4A

Maximum DC Reverse Current

Ta =25°C

at rated DC blocking voltage

Ta =125°C

Typical Thermal resistance

(Note1)

Vrrm

Vrms

VDC

If(av)

Ifsm

Rth(ja)

Rth(jl)

Tstg, Tj

LLD

005

LLD

100

LLD

200

140

200

LLD

400

280

400

0.8

35.0

1.0

5.0

100.0

15.0

-55 to +150

LLD

600

420

600

LLD

800

560

800

LLD

1000

700

1000

Units

µA

°C/W

°C

Typical Junction Capacitance

(Note2)

Storage and Operating Junction Temperature

Range

Note:

1. On aluminum substrate P.C.B. with an area of 0.8”×0.8”(20×20mm) mounted on 0.05×0.05”(1.3×1.3mm) solder pad

2. Measured at 1.0 MHz and applied voltage of 4.0 volt

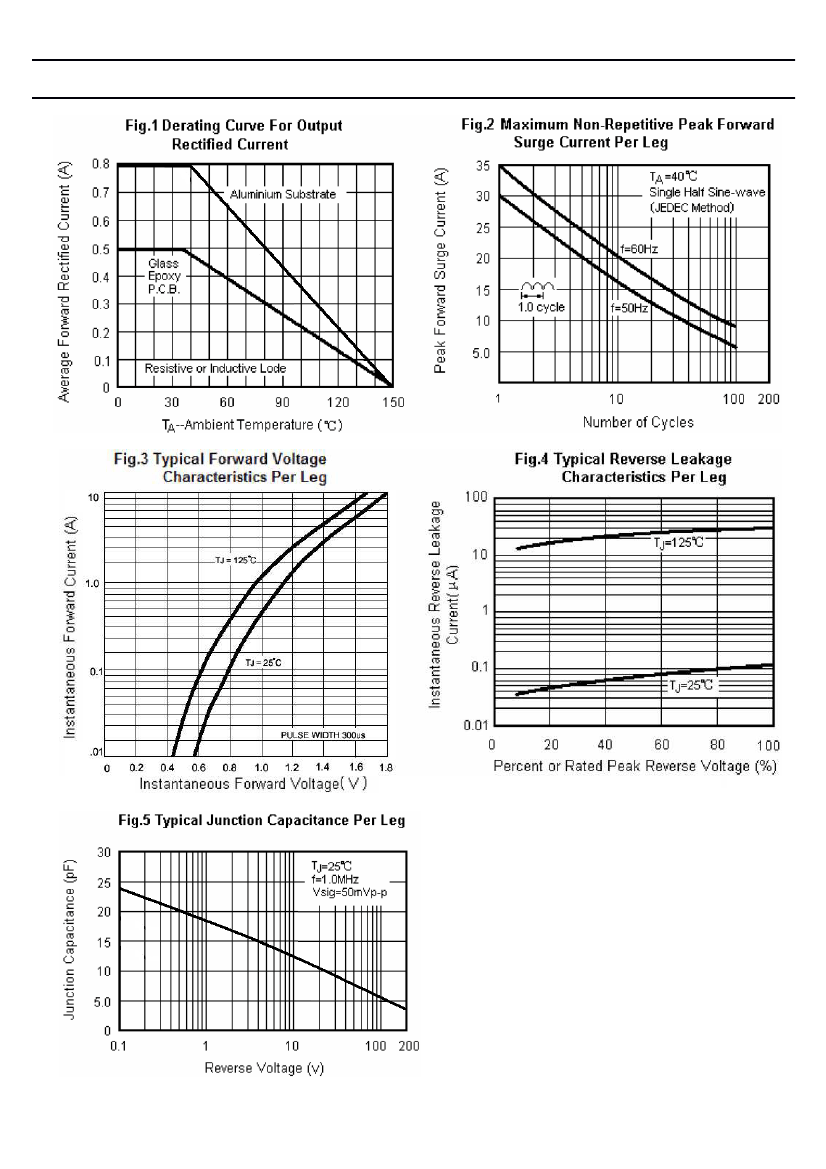

Rev.A2

www.gulfsemi.com
