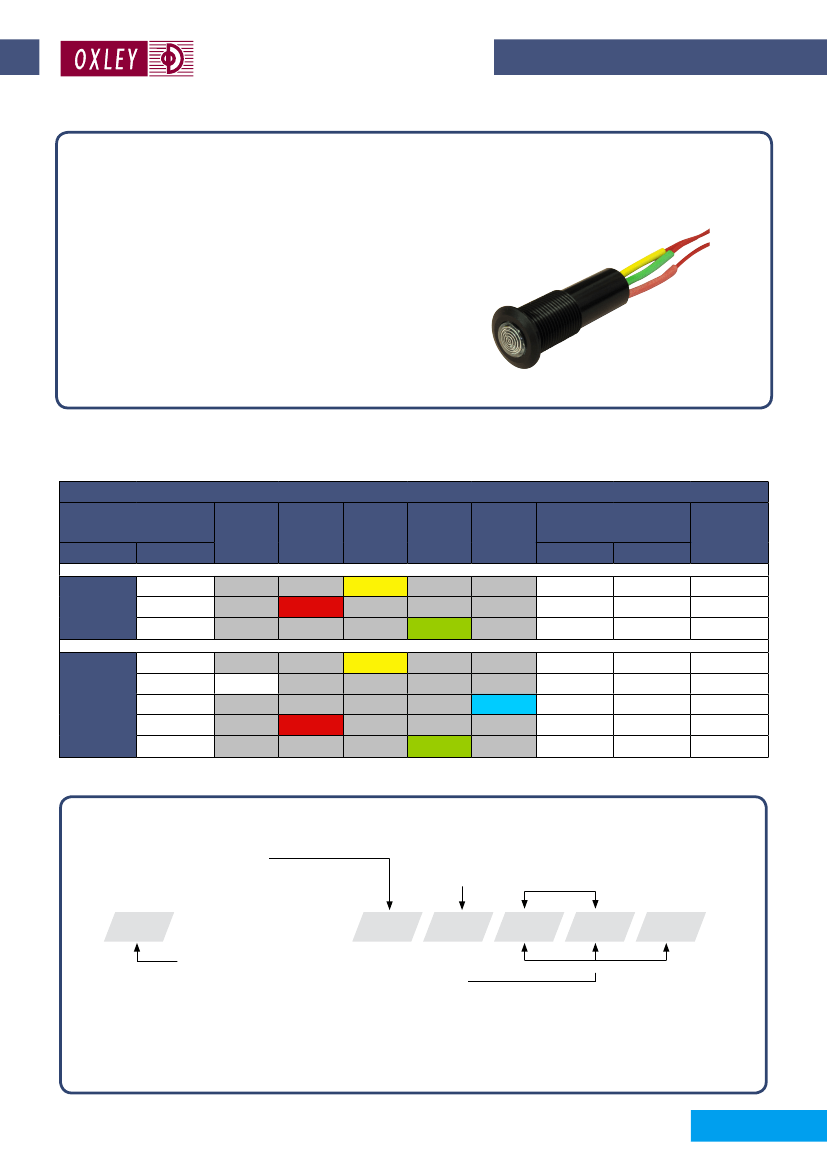

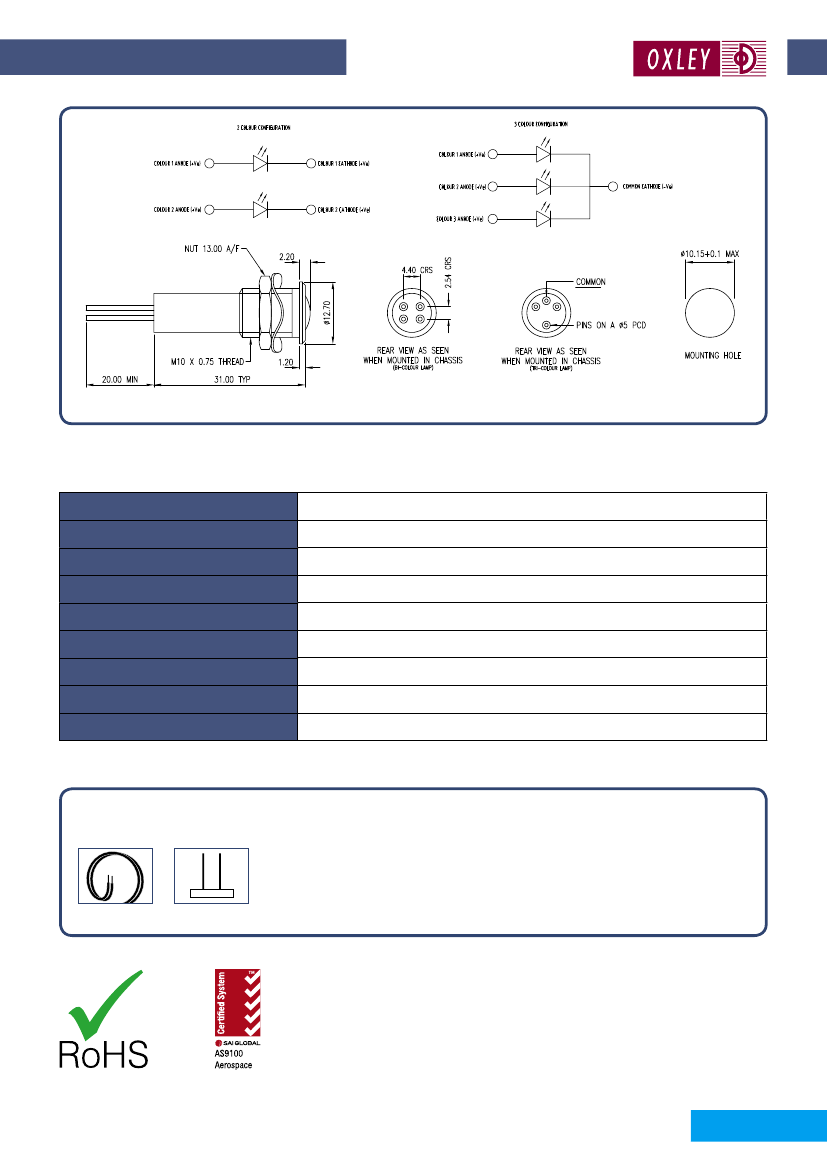

2 & 3 OXL/CLH/100 Series

Bi or Tri Colour Fresnel Lens

[

Key Characteristics

Functional

• 10mm mounting

• 80° viewing angle

• Replaces two or three single indicators

• Independent LED indication

Resilient

• IP66 sealed

• -40 to 85°C operating temp

• -40 to 100°C storage temp

Adaptable

• Full colour range

• Customer specials on request

[

Specifications

COLOURS

Luminous Intensity

mcd

25

30

35

1000

1200

1250

White

Red

Yellow

Green

Blue

Voltage

Forward

Reverse

5

Current

(mA)

20

x

P

x

P

x

P

x

P

x

P

x

P

x

P

x

P

x

2.2

1.9

2.2

3.6

1.9

3.6

[

Ordering Information

Terminations

Blank - Spills

FLXX - Flying Leads (XX Length in cm)

Example: 2OXL/CLH/100/FL30/H/AR/BE - Bi Colour, 10mm Mounted, 30cm Flying Leads, High Intensity Amber and Blue

Example: 3OXL/CLH/100/H/RD/GN/YW - Tri Colour, 10mm Mounted, High Intensity Red, Green and Yellow

Telephone: +44 (0)1229 483226 • sales@oxleygroup.com • www.oxleygroup.com

STD

High Intensity

Intensity

Blank - Standard

H - High Intensity

2 colour

OXL/CLH/100 /

Bi or Tri Segment

2 - Bi Coloured

3 - Tri Coloured

/

Colours

RD - Red

GN - Green

YW - Yellow

AR - Amber

/

3 colour

/

BE - Blue (High Intensity Only)

WE - White (High Intensity Only)
