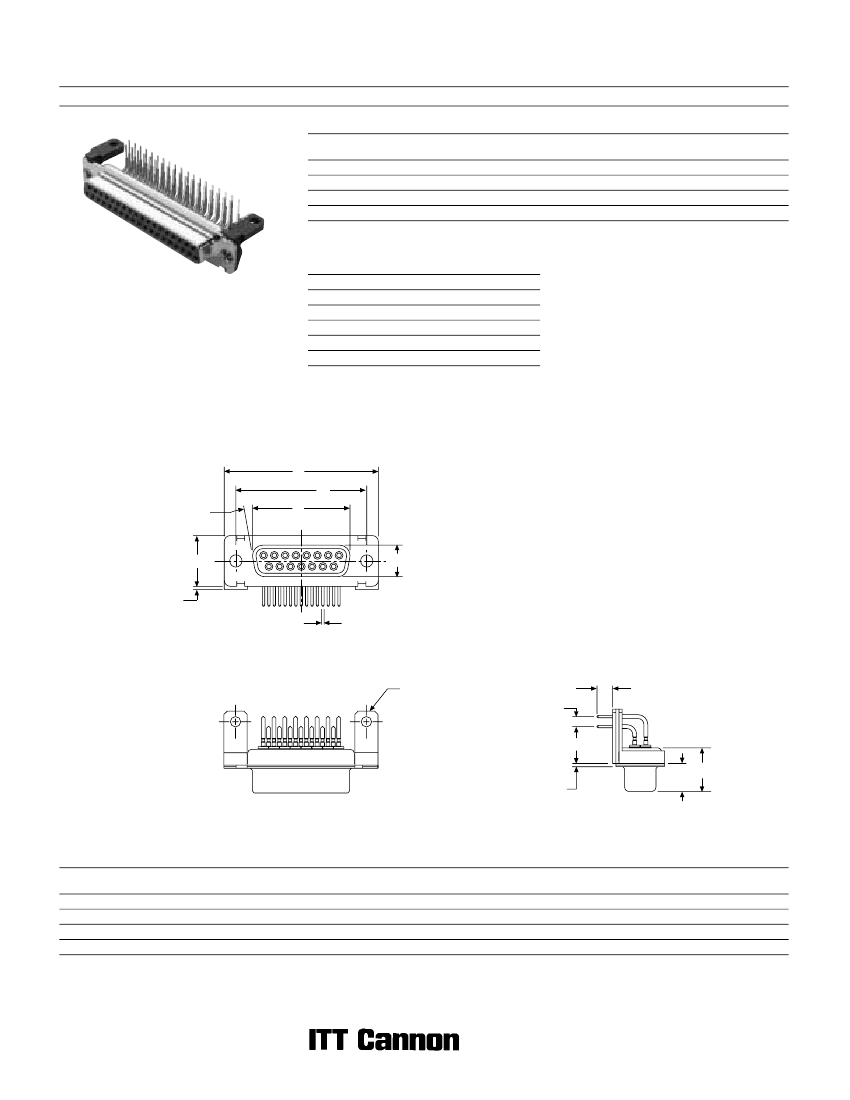

D Subminiature
D*JK — 90° PC Tails and Plastic Brackets — European Footprint 10,2 or 9,4 mm
Receptacle
Part Numbers
Bushing with
Through Hole
DEJK9S*-1A5N
DAJK15S*-1A5N
DBJK25S*-1A5N
DCJK37S*-1A5N
Captive Nut
#4-40 UNC
DEJK9S*-1AUN
DAJK15S*-1AUN
DBJK25S*-1AUN
DCJK37S*-1AUN
Captive Nut
M3
DEJK9S*-1ATN
DAJK15S*-1ATN
DBJK25S*-1ATN
DCJK37S*-1ATN
Post
#4-40 UNC
DEJK9S*-1A6N
DAJK15S*-1A6N
DBJK25S*-1A6N
DCJK37S*-1A6N
Filter D
Post
M3
DEJK9S*-1APN
DAJK15S*-1APN
DBJK25S*-1APN
DCJK37S*-1APN
* Insert filter designator. Example: DEJK9S4-1A5N (for 1000 pF filter capacitance)
Notes: For performance class 1 add -A190. Example: DEJK9S1-1A5N-A190
For pushfit/boardlocks add -146. Example: DEJK9S1-1A5N-A190-146
Reader’s Resource
For contact cavity arrangements,
see page 224.
For P.C. hole patterns, see page 273.
For panel cutouts, see page 221.
For hardware views (European),
see page 227.
For pushfit/boardlock configuration,
see page 225.
Filter Designator*
1
2
3
4
5
For electrical data, see page 106.
Filter Capacitance
330 pF
470 pF
680 pF
1000 pF
1500 pF
Engaging Face
A
C
10°
B
8
1
9
E
15
D
1,00 (.039)
Ø 0,60 (.024)
BRACKET,
PLASTIC
2,54 (.100)
3,70 (.146)
9,40 (.370)
F
L
W
Dimensions
Shell Size
DE
DA
DB
DC
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
B
±0,13
(.005)
16,33 (.643)
24,66 (.971)
38,38 (1.511)
54,84 (2.159)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0,13
(.005)
7,90 (.311)
7,90 (.311)
7,90 (.311)
7,90 (.311)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,90 (.429)
10,90 (.429)
10,90 (.429)
10,90 (.429)
W
±0,38
(.015)
6,94 (.273)
6,94 (.273)
6,94 (.273)
6,94 (.273)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,76 (.030)
0,76 (.030)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
Dimensions are shown in mm (inch)
Dimensions subject to change
