TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA 66
FLAMMABILITY RATING: UL94-V0
COLOR: GREEN
CONTACT PIN: BRASS (CuZn)
SURFACE OF SOLDER TAIL PLATING: TIN
5
A
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
STANDARD
CERTIFIED E315414
MECHANICAL
PITCH: 3.81mm
SOLDERING
JEDEC LEAD FREE WAVE SOLDERING PROCESS
PACKAGING
BOX
UL
10A
300VAC
1.6KV
20 mOhm MAX
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
06-JUL-15
14-JUN-10
DATE
UPDATE
PDF
FILE
AK
JP
BY
APPROVAL: FBr
SCALE:
SHEET: 1/2
DRAW: MARVIN
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM

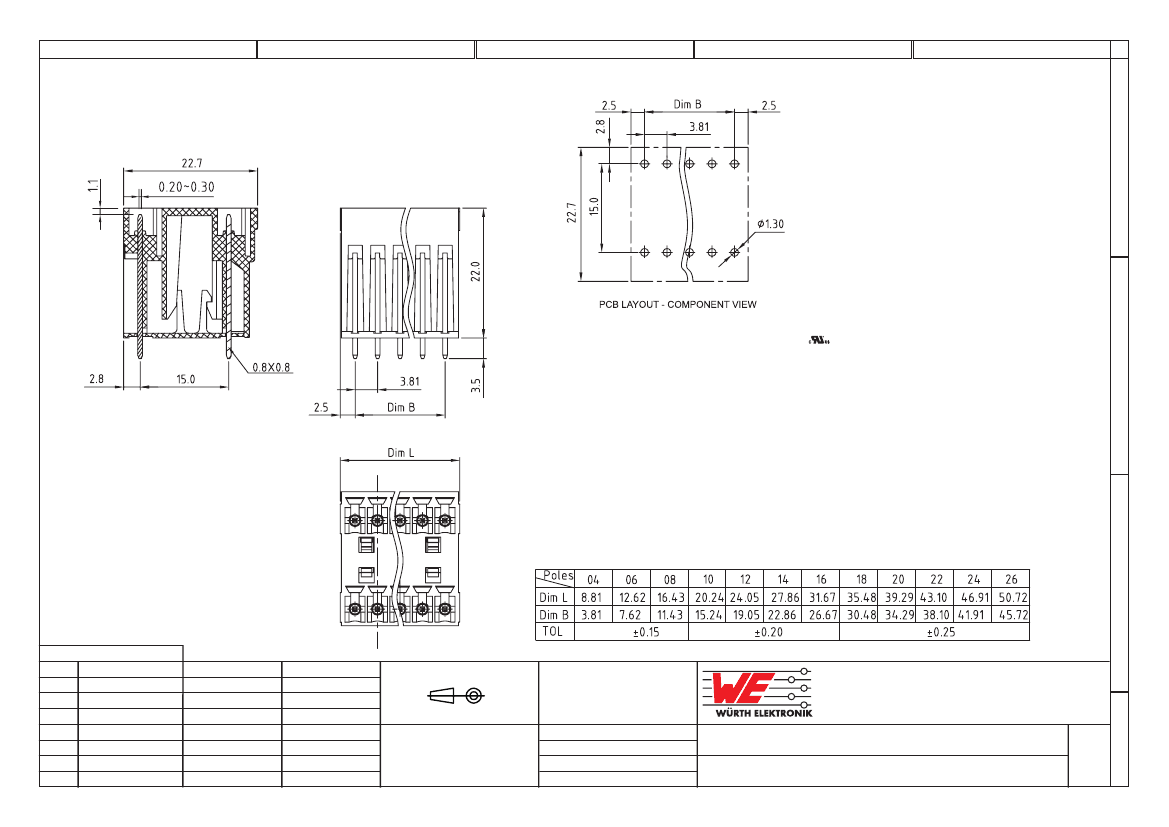

DESCRIPTION: SERIE 3293 - 3.81MM DOUBLE LEVEL VERTICAL MALE
PCB HEADER WITH FLANGES TYPE WR-TBL
WERI PART NO: 691 329 300 0xx
SIZE
A4
D
1
2
3
4
5
