PA4–5SJTB
Connectors
Power Cable to
Chassis
MISC.
PA-PA

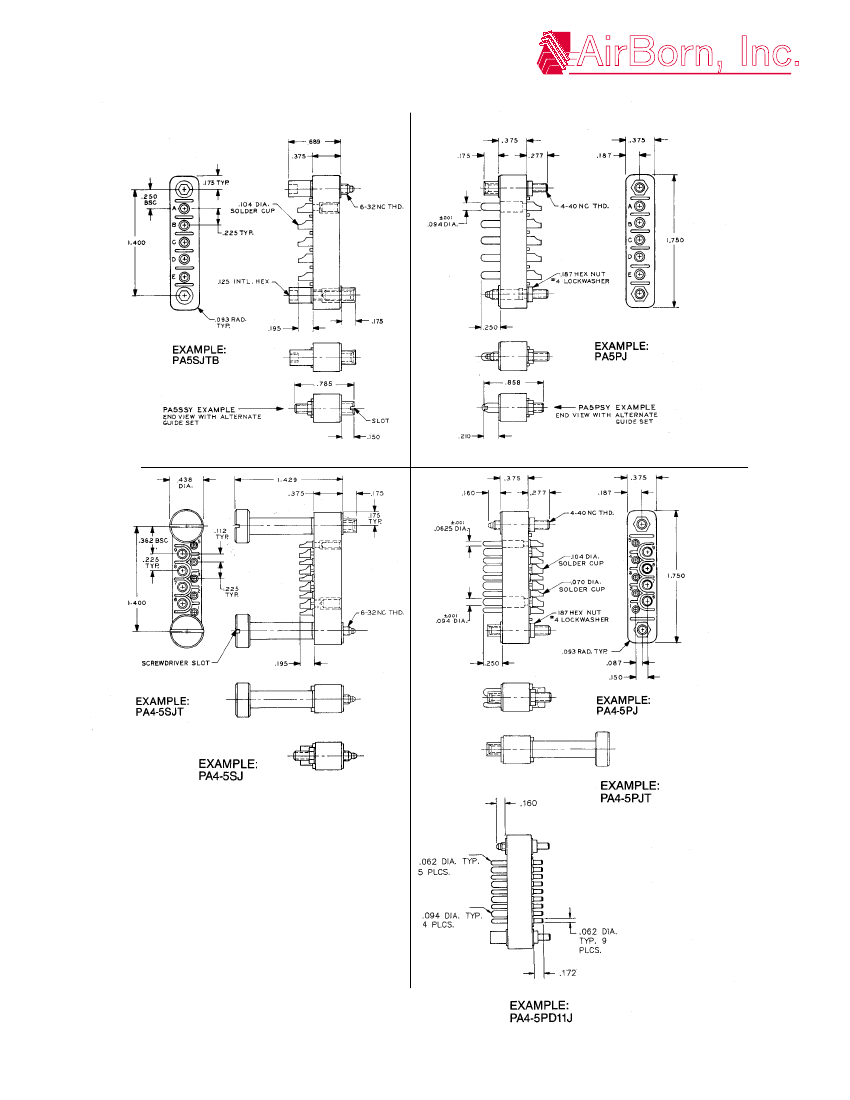

PA4–5PJ
PLUG:
RECEPTACLE:
PA
PA
Examples:
4-5
4-5
S
P
JTB
J
PLUG
RECEPTACLE
SERIES
• Molded bodies: PA4 and PA4-5: Diallyl phthalate per MIL-M-14 (GDI-30F or SDG-F). PA10: Polyphenylene sulfide
PA
= Power connectors
PA
= Power connectors
NUMBER OF CONTACTS
5
4-5
10
= 5 #12 pin contacts
= 4 #12 and 5 #16 pin contacts
= 10 #12 pin contacts
5
4-5
10
= 5 #12 pin contacts
= 4 #12 and 5 #16 pin contacts
= 10 #12 pin contacts
TYPE OF CONTACTS
• Contact Rating: #12 contacts = 23 amps; #16 contacts = 13 amps.
• Socket Contacts: Phosphor bronze, gold plated.
• Pin Contacts: Brass, gold plated.
• Nominal au plating thickness is 20 micro-inches on mating surfaces.
P
= Pin, straight, solder cup
S
PD11 = Pin, straight, dip solder, .172
S
= Socket, straight, open entry,
solder cup
P
PD11
= Socket, straight, open entry, solder cup
• WARNING:
When interchanging contacts, position of male and female hardware is automatically reversed.
= Pin, straight, solder cup
= Pin, straight, dip solder, .172
TYPE OF HARDWARE
• For hood strain relief, add “H” to “JTL” hardware; Example: PA5SJTLH. See “Options” below.
SY
JT
JTB
= Guide set
= Turning jackset, 1.054
= Hex turning jackset, .314
SY
J
= Guide set
= Fixed jackset
OPTIONS
• Hood PA5H for use with PA5 and PA4-5 connectors. Specify JTL hardware when using hood.
