PT
hermetic

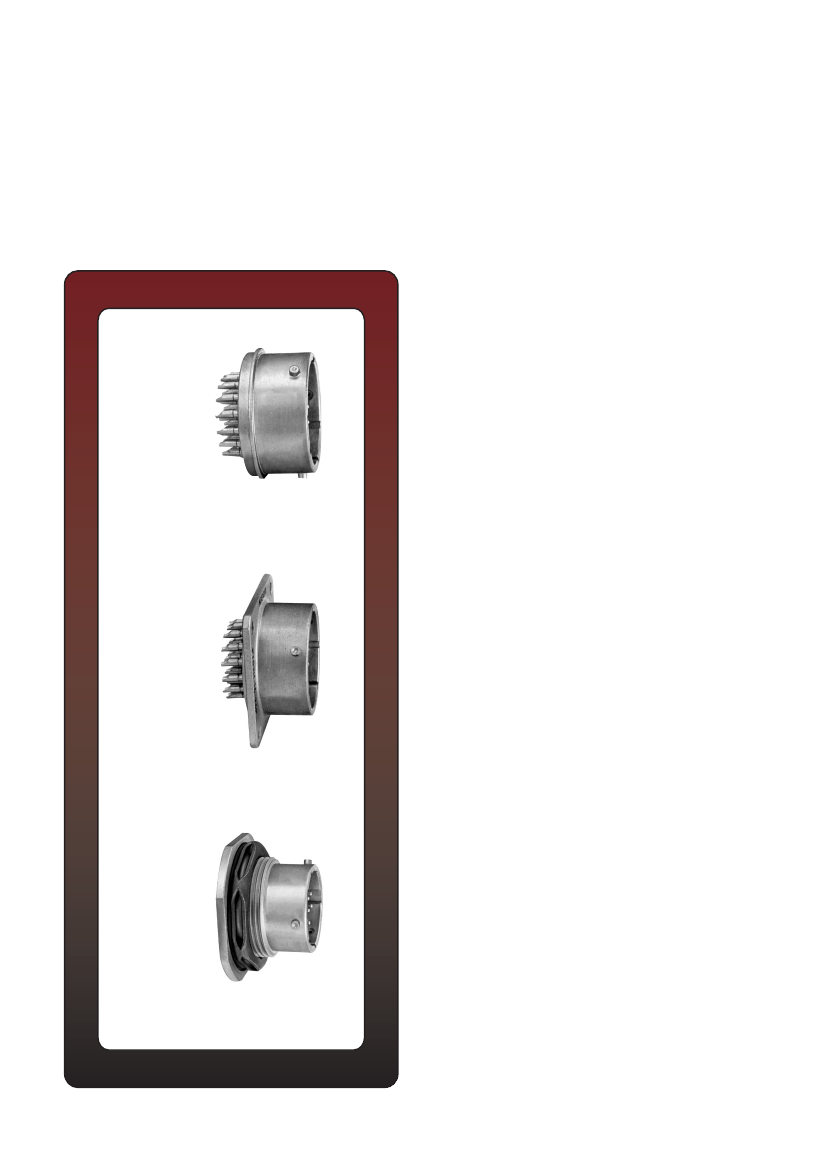

Three shell styles are available in the hermetic PT
bayonet series:
• PTIH (MS3113H)
• PT02H
• PT07H (MS3114H)
These hermetic connectors are only available with solder cup or
flat eyelet pin contacts in the MS/PT version. Socket contacts
are available in some proprietary PT versions. Other design
characteristics of the PT hermetic connector series are as
follows:
Shell sizes: 8 through 24 (tin plated)
Contact count: 2 through 61. Refer to pages 4 and 5 for insert
availability for hermetics.
Current:
5.0 amp each #20 contact
10 amp each #16 contact
17 amp each #12 contact
solder
mounting
receptacle
Contacts are tin plated for PT; gold is optional
Dielectric Withstanding Voltage (sea level):
1500 volts (RMS) 60 cps, Service Rating I
2300 volts (RMS) 60 cps, Service Rating II
Compression glass inserts, permanently lettered
box
mounting
receptacle
Helium Leakage: Less than 1.0 X 10
-6
cc/sec.
at 15 psi differential
Physical Shock: 100 G’s
Vibration:
Thermal Shock:
Exceeds MIL-E-5272 Procedure II
Intermateability: Mates with MS3116 and PT06
Refer to pages 4-10 for insert arrangement availability.
No deterioration or failure after 5 cycles
at –55°F to +257°F
jam nut
receptacle
21
PTIH (MS3113H)
hermetic solder mounting receptacle
G
L
W
A
N
.031 +.006
–.005
Z
*
**
**
†
††
††
PTIH-XX-XXX
PTIY-XX-XXX
MS3113H-XXCXXX
PTIH-XX-XXX (100)
PTIY-XX-XXX (100)
MS3113H-XXYXXX
To complete part number see how to order on page 25.
* Solder cup pin contacts without interfacial seal
** Solder cup pin contacts with interfacial seal
† Flat eyelet pin contacts without interfacial seal
†† Flat eyelet pin contacts with interfacial seal
Recept.
Front View
Shell
Size
G
Dia.
Max.
A Dia.
+.001
–.005
L
+.025
–.016
Receptacle
Side View
N Dia.
+.001
–.005
W
+.011
–.010
Z
Max.
6
8
10
12
14
16
18
20
22
24
.511
.636
.761
.855
.980
1.105
1.229
1.323
1.449
1.574
.348
.473
.590
.750
.875
1.000
1.125
1.250
1.375
1.500
.447
.447
.447
.447
.447
.447
.447
.509
.509
.542
.438
.562
.672
.781
.906
1.031
1.156
1.250
1.375
1.500
.094
.094
.094
.094
.094
.094
.094
.094
.125
.125
.386
.386
.386
.386
.386
.386
.386
.386
.418
.418
All dimensions for reference only.
22
PT02H
hermetic box mounting receptacle
(TP)
S
R
PT
.120 ± .005 Dia.
(.147 ± .005 Dia., size 24)
SP
.150 ± .005 Dia.
L
W
R S
(TP)
4 Holes
A
N
U
Z
*
**
†
††
PT02H-XX-XXX
PT02Y-XX-XXX
PT02H-XX-XXX (100)
PT02Y-XX-XXX (100)
To complete part number see how to order on page 25.
* Solder cup pin contacts without interfacial seal
** Solder cup pin contacts with interfacial seal
† Flat eyelet pin contacts without interfacial seal
†† Flat eyelet pin contacts with interfacial seal
n
(MMC) located within .0025 of (TP)
Receptacle Front View
Shell
Size
R
(TP)
S
±.016
A Dia.
+.001
–.005
K
±.015
Receptacle Side View
L
+.025
–.015
N Dia.
+.001
–.005
U
+.011
–.010
Z
Max.
6
8
10
12
14
16
18
20
22
24
.469
.594
.719
.812
.906
.969
1.062
1.156
1.250
1.375
.688
.812
.938
1.031
1.125
1.219
1.312
1.438
1.562
1.688
.348
.473
.590
.750
.875
1.000
1.125
1.250
1.375
1.500
.047
.047
.047
.047
.047
.047
.047
.047
.079
.079
.494
.494
.494
.494
.494
.494
.494
.556
.556
.588
.438
.562
.672
.781
.906
1.031
1.156
1.250
1.375
1.500
.062
.062
.062
.062
.062
.062
.062
.062
.062
.062
.344
.344
.344
.344
.344
.344
.344
.344
.377
.377
All dimensions for reference only.
23
PT07H (MS3114H)
hermetic jam nut receptacle
S
H
M
Z
S
A
R
P
K
*
**
**
†
††
††
To complete part number see how to order on page 25.
* Solder cup pin contacts without interfacial seal
** Solder cup pin contacts with interfacial seal
† Flat eyelet pin contacts without interfacial seal
†† Flat eyelet pin contacts with interfacial seal
Receptacle Front
View
Shell
Size
S
+.016
H Hex
+.017
–.016
A
+.001
–.005
K
+.043
–.016
PT07H-XX-XXX
PT07Y-XX-XXX
MS3114H-XXCXXX
PT07H-XX-XXX (100)
PT07Y-XX-XXX (100)
MS3114H-XXYXXX
Receptacle Side View
M
+.031
–.000
P Panel Thickness
Max.
Min.
R
Thread
Class 2A
Z
Max.
6
8
10
12
14
16
18
20
22
24
.812
.938
1.062
1.250
1.375
1.500
1.625
1.812
1.938
2.062
.625
.750
.875
1.062
1.188
1.312
1.438
1.562
1.688
1.812
.348
.473
.590
.750
.875
1.000
1.125
1.250
1.375
1.500
.094
.094
.094
.094
.094
.094
.094
.125
.125
.125
.696
.696
.696
.696
.696
.696
.696
.884
.884
.917
.125
.125
.125
.125
.125
.125
.125
.250
.250
.250
.062
.062
.062
.062
.062
.062
.062
.062
.062
.062
.4375-28 UNEF
.5625-24 NEF
.6875-24 NEF
.8750-20 UNEF
1.0000-20 UNEF
1.1250-18 NEF
1.2500-18 NEF
1.3750-18 NEF
1.5000-18 NEF
1.6250-18 NEF
.206
.206
.206
.206
.206
.206
.206
.081
.081
.048
All dimensions for reference only.
