MG200C-LRG28H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MG200C-LRG28H

MG200C-LRG28H: DescriptionDual Color LED, Red/green, T-1 3/4, 5.1mm,; CategoryLED optoelectronic/LED photoelectric; File Size274KB，3 Pages; ManufacturerDDP Engineered LED Solutions

Download Datasheet Parametric View All

MG200C-LRG28H Overview

Dual Color LED, Red/green, T-1 3/4, 5.1mm,

MG200C-LRG28H Parametric

Parameter Name	Attribute value
Maker	DDP Engineered LED Solutions
Reach Compliance Code	unknown
color	RED/GREEN
Configuration	COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Maximum forward current	0.018 A
Nominal luminous intensity	90.0/40.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	1
Optoelectronic device types	DUAL COLOR LED
method of packing	BULK
peak wavelength	660/565 nm
shape	ROUND
size	5.1 mm
surface mount	NO
T code	T-1 3/4
perspective	60 deg

Preview

Download Datasheet

View All

Data Display Products

T-1

SUB-MINIATURE LAMP

Single-Chip

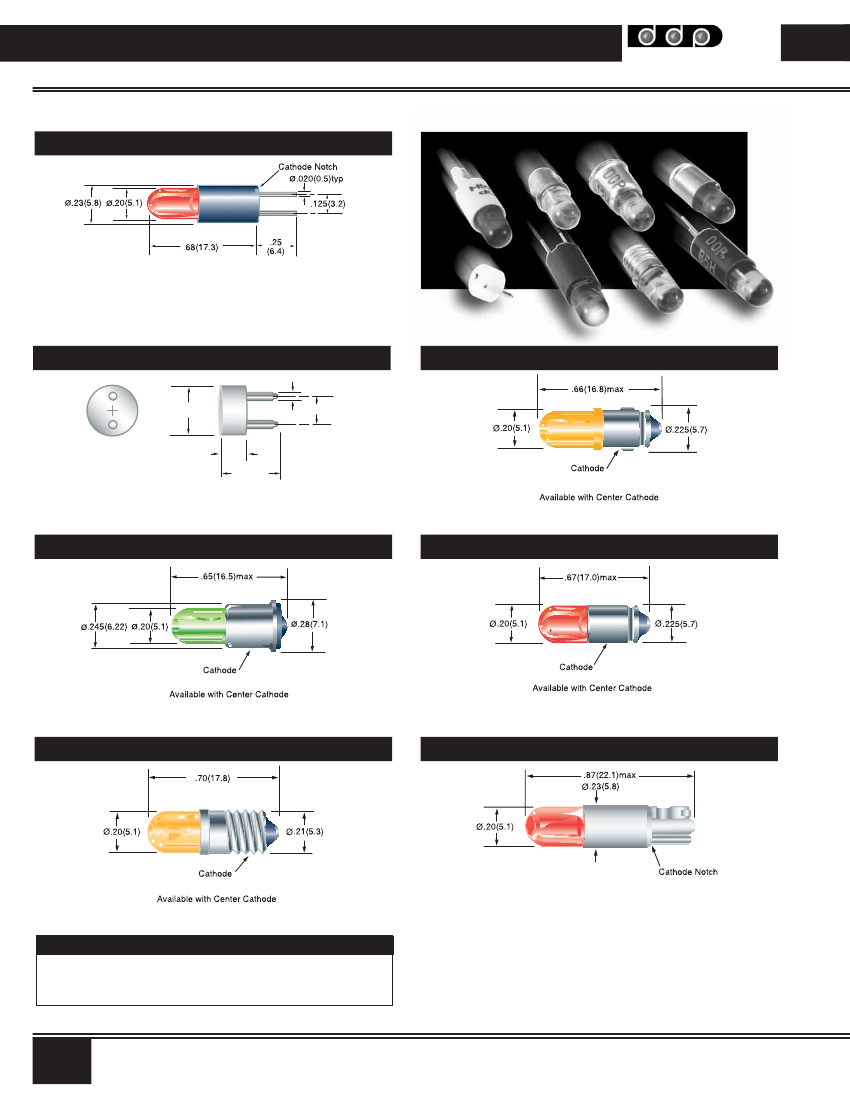

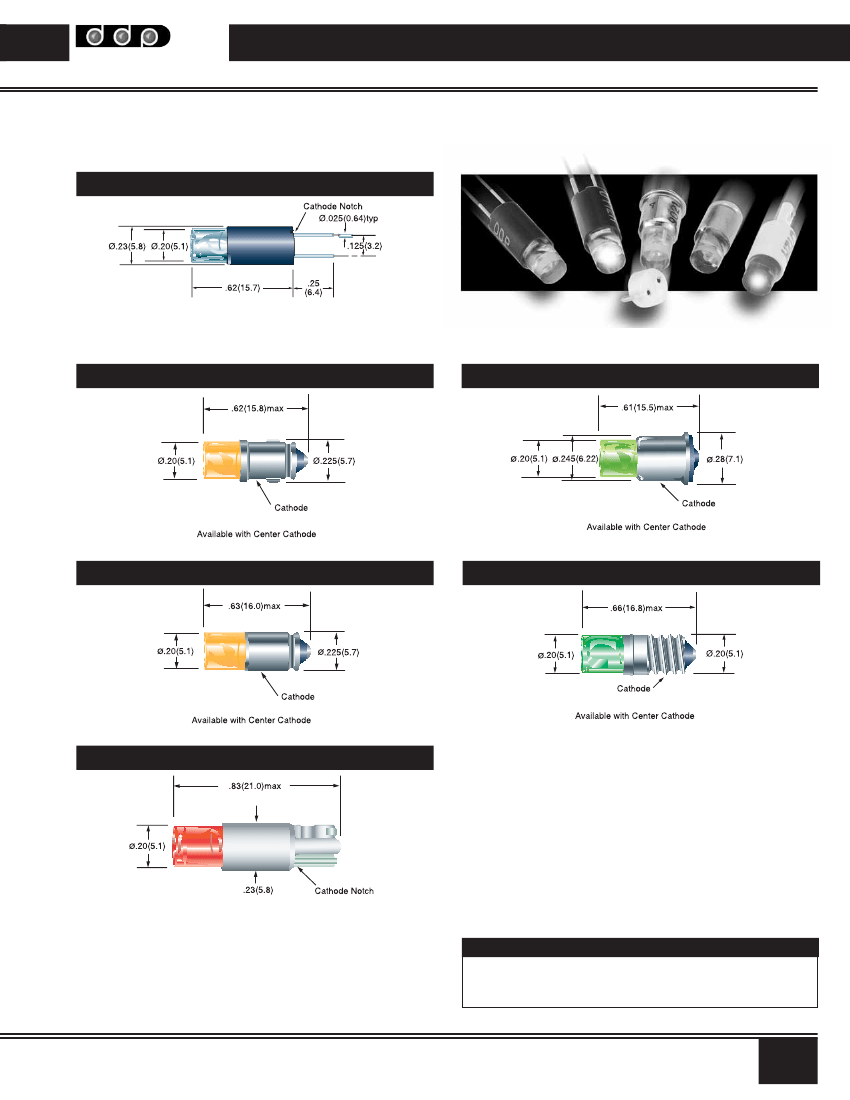

– For Detailed LED Data, See Discrete Section, MODEL 200

Model

[1]

BP202

[5]

MB200

MF200

[6]

MG200

MS200

WB201

Bi-Pin

Bayonet

Flange

Groove

Screw

Wedge

TO ORDER, FOLLOW THE EXAMPLE:

Select one

BOLD

component from each SHADED column in the tables below.

LED

Model

-BCG

Voltage

WB201

12H

➜

Part Number

WB201-BCG12H

Voltage/Current

Design

Max

Vf/If

V/C Table I

5V/22mA

5.5V/28mA

6V/21mA

7V/27mA

12V/20mA

14V/25mA

15V/24mA

16.5V/28mA

24V/17mA

26V/20mA

28V/16.5mA

30V/18mA

Voltage/Current

Design

Max

Vf/If

V/C Table II

5V/15mA

5.5V/23mA

6V/15mA

7V/25mA

12V/15mA

14V/20mA

15V/15mA

16.5V/18mA

24V/15mA

26V/18mA

28V/15mA

30V/17mA

λpk

[2]

(mcd)

Viewing

LED

-BCR

-BCA

-BCG

MEDIUM INTENSITY - TINTED ENCAPSULATION

V/C

Table

[3]

Color

RED

AMB

GRN

(nm)

Angle

Voltage

[4]

12H

15H

24H

28H

635

583

565

120

100

HIGH INTENSITY- WATERCLEAR ENCAPSULATION

LED

-NWR

-NWO

-NWA

-NWG

-NWB

-NWW

-NKR

-NKO

-NKA

-NKG

-NKB

-NKW

λpk

Color

RED

ORG

AMB

GRN

BLU

WHT

RED

ORG

AMB

GRN

BLU

WHT

(nm)

[2]

(mcd)

Viewing

V/C

Table

[3]

Angle

634

605

592

520

465

634

605

592

520

465

2800

2000

2800

2400

700

1560

3600

8000

3600

10000

3000

5600

WIDE ANGLE/FLAT-TOPPED-WATERCLEAR ENCAPSULATION

LED

-NFR

-NFA

-NFG

-NFB

-NFW

λpk

Color

RED

AMB

GRN

BLU

WHT

(nm)

[2]

(mcd)

Viewing

V/C

Table

[3]

Angle

634

592

520

465

780

600

780

168

280

SPECIALTY LEDs

LED

-RLP

[7]

-ALP

[7]

-GLP

[7]

-LRG

λpk

Color

RED

AMB

GRN

RED/GRN

(nm)

[2]

(mcd)

Viewing

V/C

Table

[3]

Angle

Description

Low Power

Bi-Color, Red Cathode

635

583

565

660/565

2.3

2.1

2.3

90/40

[1] All Models are center anode (note cathode notch for BP202, BP203 and WB201). Insert C after

Model for center cathode (e.g. MF200C).

[2] Iv = typical luminous intensity @ If = 20mA (Ta=25°C). Low Power LEDs = 2mA.

[3] See Voltage/Current table for design specifications. Design current for low power LEDs = 2mA.

[4] Ta = 25°C. Voltage 2 indicates external resistor required. Voltages 5H through 28H are VDC.

For AC operation, insert D after Voltage (e.g. 24HD). D indicates built-in rectifier: not required for

5H.

[5] Optional Socket available. See Model BPS-1 (pg. 72).

[6] Optional Socket available. See Model MFS1-B (pg. 74).

[7] Omit "H" Voltage designation (e.g. MG200-RLP12).

Continued…
