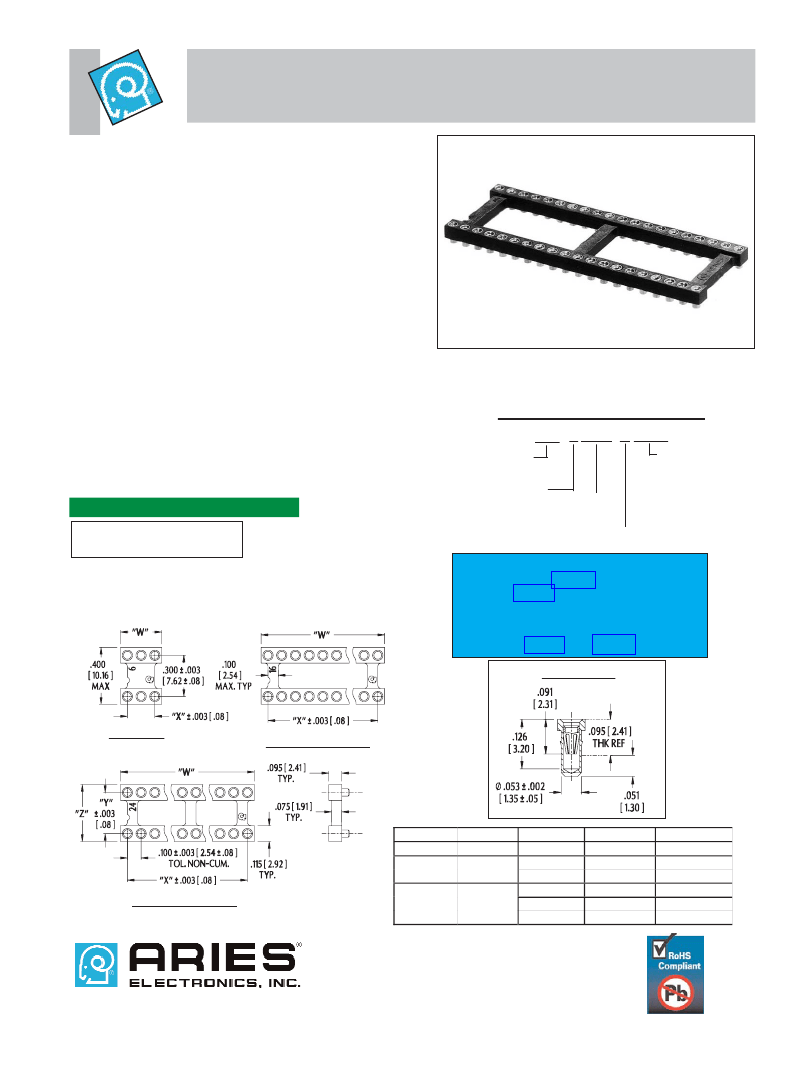

Series 518 Surface Mount
Open Frame Collet Sockets
FEATURES:
• Open frame allows for more ef ficient utilization of board space
and better cooling.
• Compatible with automatic insertion equipment.
• Side-to-side and end-to-end stackable.
SPECIFICATIONS:
• Body material is black UL 94V-0 Glass-Filled 4/6 Nylon.
• Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-
B16-00.
• Pin body plating is either 200
μ
[5.08μm] min. 93/7 Tin/Lead per
ASTM B545 or 200μ [5.08μm] min. Tin per ASTM B545 Type 1
over 100μ [2.54μm] min. Nickel per SAE-AMS-QQ-N-290.
• 4-fingered collet contact is Beryllium Copper Alloy per
UNS C17200 ASTM-B194-01.
• Contact plating is 10μ [.25μm] Gold per MIL-G-45204 over 50
μ
min. [1.27μm] Nickel per SAE-AMS-QQ-N-290.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
• Contact current rating=3 Amps.
configurations can be furnished, depending on quantities. Aries reserves the
• Operating temperature= -67°F to 221°F [-55°C to 105°C].
right to change product specifications without notice.
• Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin;
Normal Force=140 grams/pin; based on a .018 [.46] dia. test
ORDERING INFORMATION
lead.
XX-X518-0XXX
• Accepts leads .015-.025 [.38-.64] in diameter, .100-.125 [2.54-
Plating:
3.18] long.
No. of pins
0=Gold collet/Tin
MOUNTING CONSIDERATIONS:
(see table)
shell
•Suggested PCB pad size=.063 [1.60] dia.
Row-to-row spacing:
0TL=Gold Collet/
Series
3: “Y”=.300 [7.62]
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
Tin-Lead Shell
4: “Y”=.400 [10.16]
1=Gold
6: “Y”=.600 [15.24]
All tolerances ± .005 [.13]
0=Surface mount collet/Gold shell
unless otherwise specified
“W”=(NO. OF PINS PER ROW) X .100 [2.54]
“X”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Other collet pins are available. Consult
Data Sheet No. 12016 for solder t ail pins
and 12017 for wire wrap pins.
Open Frame Capacitor Sockets also
available. Consult Data Sheet Nos.
12026 and 12027.
PIN DETAIL
STYLE A
STYLE B (2 RIB)
Frame Style No. of Ribs
A
1
B
2
STYLE C (3 RIB)
C
3
Centers “Y ”
.300 [7.62]
.300 [7.62]
.400 [10.16]
.300 [7.62]
.400 [10.16]
.600 [15.24]
Dim. “ Z”
.400 [10.16]
.400 [10.16]
.500 [12.70]
.400 [10.16]
.500 [12.70]
.700 [17.78]
Available Sizes
6
8,14,16,18,20
20,22
24,28
24
24,28,32
12018
REV. F
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
http://www.arieselec.com • info@arieselec.com
Bristol, PA USA
TEL: (215) 781-9956
FAX: (215) 781-9845
