PS1278-100M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PS1278-100M

PS1278-100M: DescriptionGeneral Purpose Inductor, 10uH, 20%, 1 Element, SMD, 4848, CHIP, 4848, ROHS COMPLIANT; CategoryPassive components inductor; File Size117KB，1 Pages; ManufacturerMonolithic Power Systems; Websitehttps://www.monolithicpower.com; Environmental Compliance

Download Datasheet Parametric View All

PS1278-100M Overview

General Purpose Inductor, 10uH, 20%, 1 Element, SMD, 4848, CHIP, 4848, ROHS COMPLIANT

PS1278-100M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	4848
Reach Compliance Code	unknow
ECCN code	EAR99
uppercase and lowercase codes	4848
DC Resistance	0.025 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PS1278
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	9.36 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

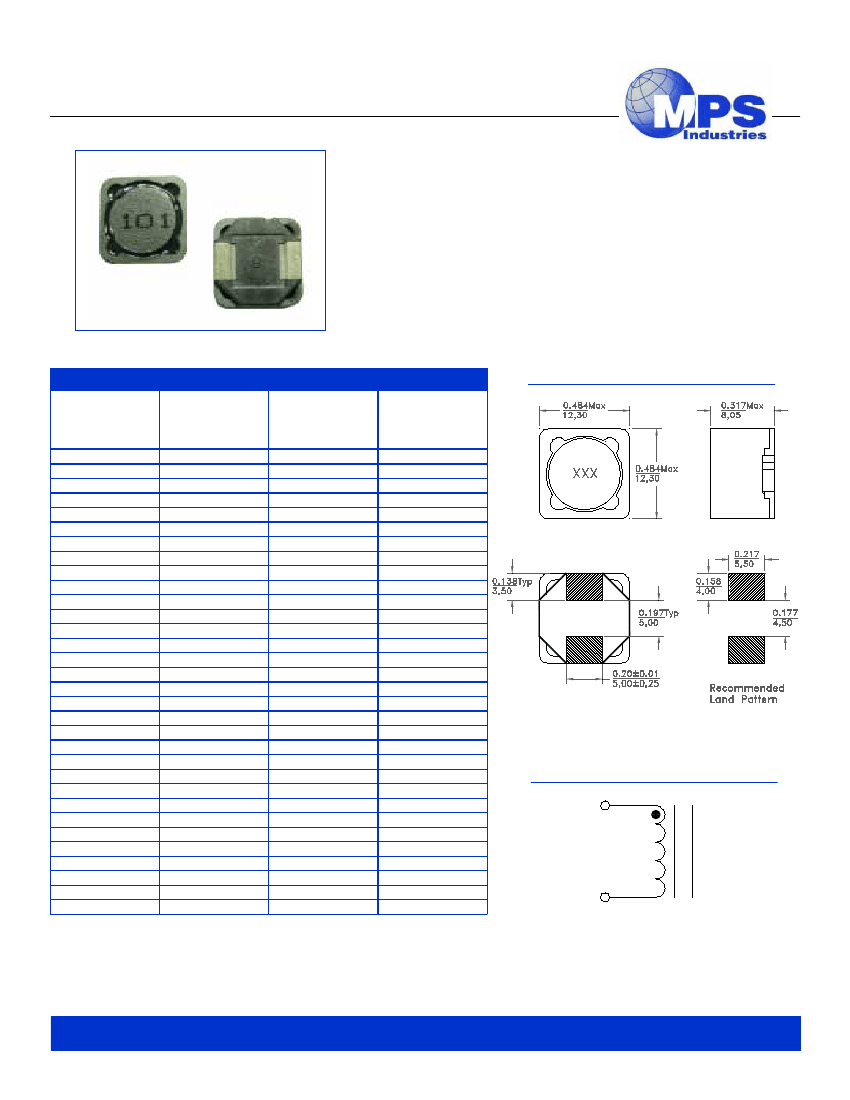

SHIELDED SMD POWER

INDUCTOR

PS1278 SERIES

• RoHS Compliant Product

• Operating Temperature: -40°C to +85°C

• Inductance Tolerance: K=±10%, M=±20%

Add suffix letter for tolerance after the part number

• Package: Tape and Reel

13” machine ready reel, 500 pcs per reel

ELECTRICAL SPECIFICATION @ 25°C

Part No

(µH)

±20%

1.4

4.7

5.6

6.8

8.2

100

±10%

120

150

180

220

270

330

390

470

560

680

820

1000

Mechanical

Rated

(A)

25.2

13.7

12.2

11.3

10.1

9.36

8.84

7.30

6.10

6.00

5.80

5.20

4.68

4.40

4.02

3.40

3.12

2.88

2.62

2.48

2.26

1.96

1.74

1.66

1.52

1.34

1.24

1.16

1.04

0.97

DCR

Max

(W)

0.010

0.016

0.018

0.022

0.023

0.025

0.026

0.031

0.035

0.040

0.050

0.069

0.077

0.081

0.090

0.102

0.140

0.151

0.203

0.241

0.255

0.360

0.462

0.542

0.593

0.787

0.864

1.162

1.296

1.483

PS1278-

1R4M

4R7M

5R6M

6R8M

8R2M

100M

120M

150M

180M

220M

270M

330M

390M

470M

560M

680M

820M

101M

121K

151K

181K

221K

271K

331K

391K

471K

561K

681K

821K

102K

Schematic

• Inductance measured : 100KHz, 0.1V

RMS

• I

RATED

: Typical 10% change in L drop from initial value

Dimensions

Unless otherwise specified, all tolerances are:

inch: .XX : ± 0.015 .XXX : ±0.004

mm: X,X : ± 0,38 X,XX : ±0,10

PS1278-XX

0946JW

Product performance is limited to specified parameter. Data is subject to change without prior notice.

13200 Estrella Ave., Bldg. B

Gardena, CA 90248

Tel: (310) 325-1043

Fax: (310) 325-1044

www.mpsind.com

sales@mpsind.com
