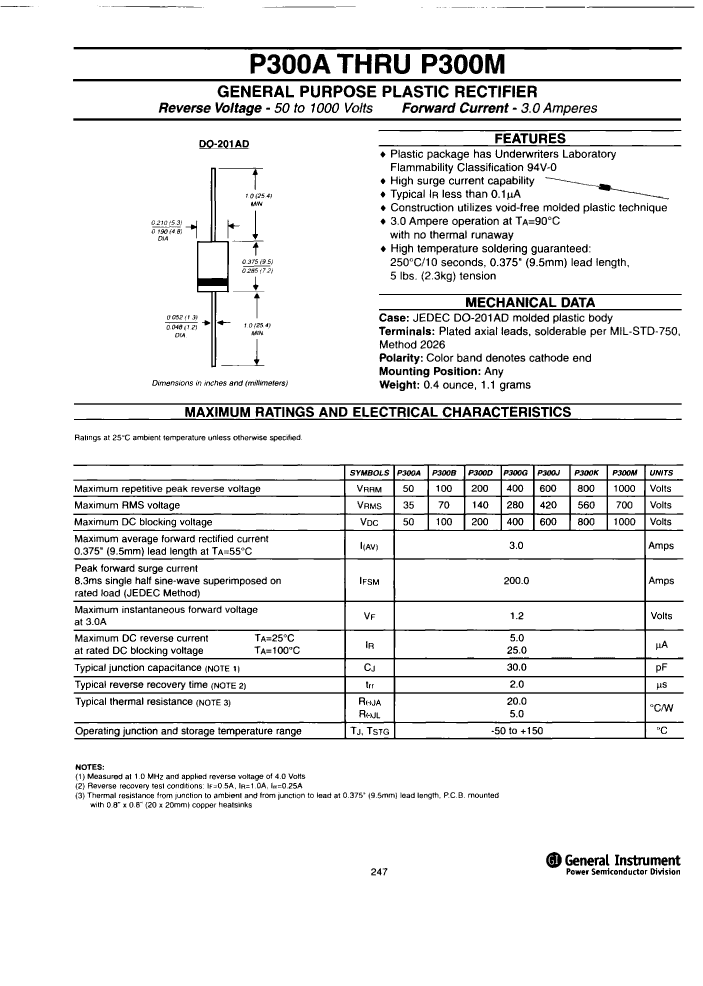

Rectifier Diode, 1 Phase, 1 Element, 3A, 800V V(RRM), Silicon, DO-201AD,

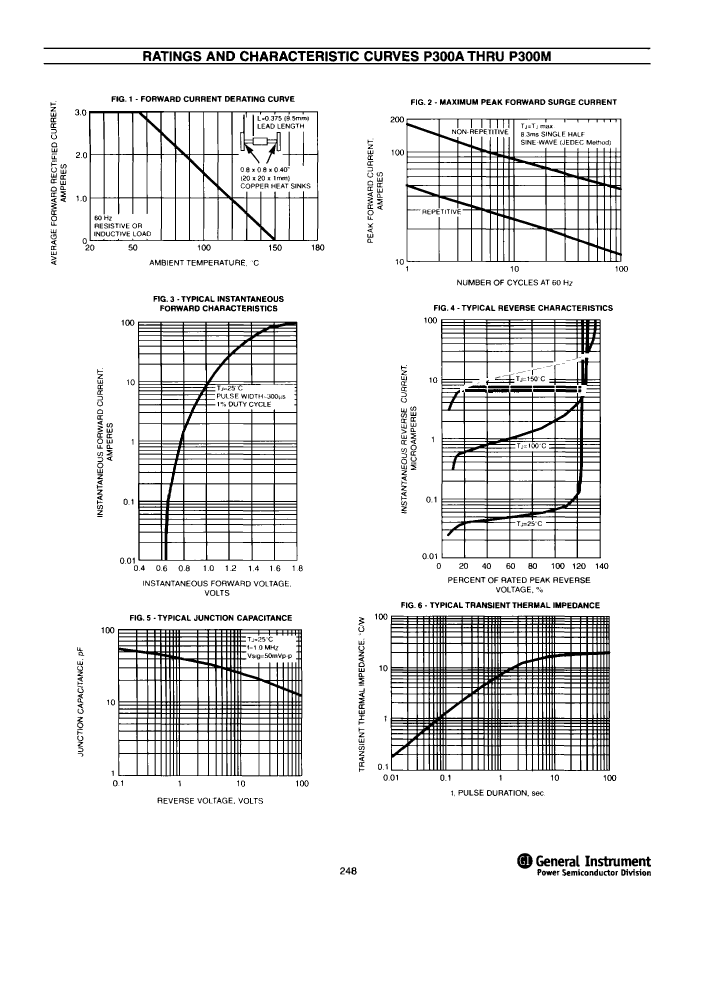

| Parameter Name | Attribute value |
| Maker | General Instrument Corp |
| Reach Compliance Code | unknown |
| application | GENERAL PURPOSE |
| Shell connection | ISOLATED |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.2 V |
| JEDEC-95 code | DO-201AD |
| JESD-30 code | O-PALF-W2 |
| Maximum non-repetitive peak forward current | 200 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -50 °C |
| Maximum output current | 3 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | ROUND |
| Package form | LONG FORM |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V |
| Maximum reverse current | 5 µA |
| Maximum reverse recovery time | 2 µs |
| surface mount | NO |
| Terminal form | WIRE |
| Terminal location | AXIAL |
| P300K | P300B | P300M | P300A | P300D | P300G | P300J | |
|---|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 3A, 800V V(RRM), Silicon, DO-201AD, | Rectifier Diode, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, DO-201AD, | Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, DO-201AD, | Rectifier Diode, 1 Phase, 1 Element, 3A, 50V V(RRM), Silicon, DO-201AD, | Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, DO-201AD, | Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, DO-201AD, | Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, DO-201AD, |
| Maker | General Instrument Corp | General Instrument Corp | General Instrument Corp | General Instrument Corp | General Instrument Corp | General Instrument Corp | General Instrument Corp |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.2 V | 1.2 V | 1.2 V | 1.2 V | 1.2 V | 1.2 V | 1.2 V |
| JEDEC-95 code | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD | DO-201AD |
| JESD-30 code | O-PALF-W2 | O-PALF-W2 | O-PALF-W2 | O-PALF-W2 | O-PALF-W2 | O-PALF-W2 | O-PALF-W2 |
| Maximum non-repetitive peak forward current | 200 A | 200 A | 200 A | 200 A | 200 A | 200 A | 200 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C |
| Maximum output current | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V | 100 V | 1000 V | 50 V | 200 V | 400 V | 600 V |
| Maximum reverse current | 5 µA | 5 µA | 5 µA | 5 µA | 5 µA | 5 µA | 5 µA |
| Maximum reverse recovery time | 2 µs | 2 µs | 2 µs | 2 µs | 2 µs | 2 µs | 2 µs |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL |
