SB340-E: DescriptionSCHOTTKY BARRIER RECTIFIER VOLTAGE: 40 to 60V CURRENT: 3.0A; CategoryDiscrete semiconductor diode; File Size90KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Parametric View All

SB340-E Overview

SCHOTTKY BARRIER RECTIFIER VOLTAGE: 40 to 60V CURRENT: 3.0A

SB340-E Parametric

Parameter Name	Attribute value
Maker	Gulf Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW POWER LOSS
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.5 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	500 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

SB340-E THRU SB360-E

SCHOTTKY BARRIER

RECTIFIER

VOLTAGE: 40 to 60V

CURRENT: 3.0A

FEATURE

High current capability, Low forward voltage drop

Low power loss, high efficiency

High surge capability

High temperature soldering guaranteed

250° /10sec/0.375" lead length at 5 lbs tension

C

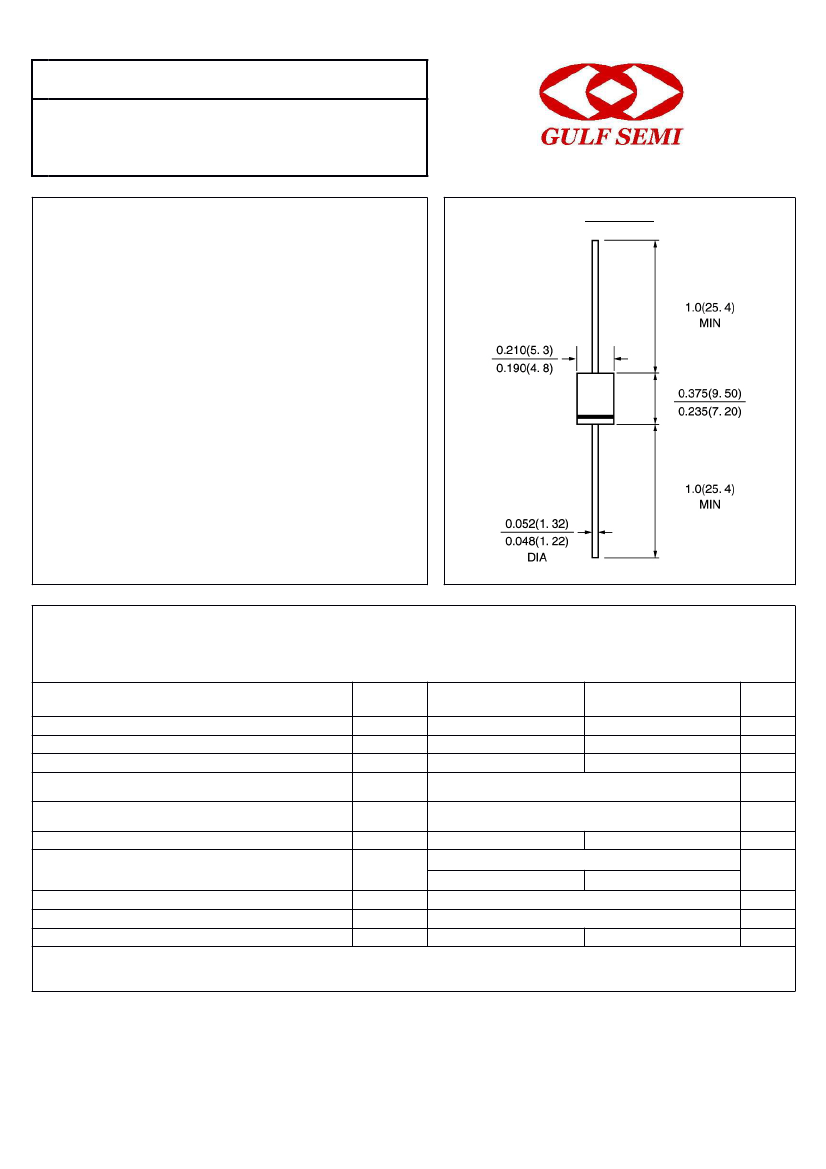

DO-201AD

MECHANICAL DATA

Terminal: Plated axial leads solderable per

MIL-STD 202E, method 208C

Case: Molded with UL-94 Class V-0 recognized Halogen Free

Epoxy

Polarity: color band denotes cathode

Mounting position: any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/8" lead length

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Forward Voltage at 3.0A DC

Maximum DC Reverse Current

at rated DC blocking voltage

Ta =25°

C

Ta =100°

C

Vrrm

Vrms

Vdc

If(av)

Ifsm

Vf

Ir

Cj

Rth(ja)

Tstg, Tj

0.50

0.5

20.0

220.0

30.0

-65 to +125

-65 to +150

10.0

mA

pF

° /W

C

°

C

SB340-E

40

28

40

3.0

100

0.74

SB360-E

60

42

60

units

V

A

V

Typical Junction Capacitance

(Note 1)

Typical Thermal Resistance

(Note 2)

Storage and Operating Junction Temperature

Note:

1. Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

2. Thermal Resistance from Junction to Ambient at 0.5" lead length, vertical P.C. Board Mounted

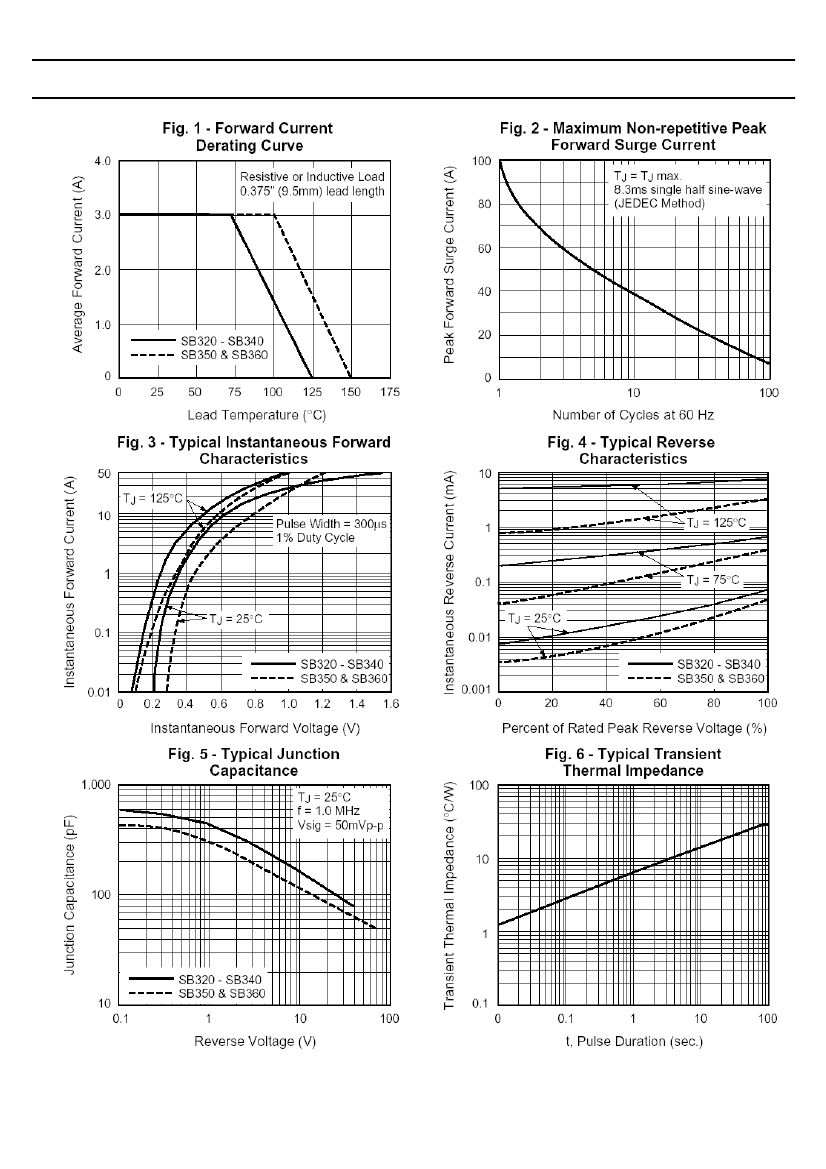

Rev.A1

www.gulfsemi.com
