DM54164J/883 datasheet, PDF - EEWORLD Datasheet

DM54164J/883: DescriptionSerial In Parallel Out, 54 Series, 8-Bit, Right Direction, True Output, TTL, CDIP14, DIP-14; Categorylogic logic; File Size89KB，3 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

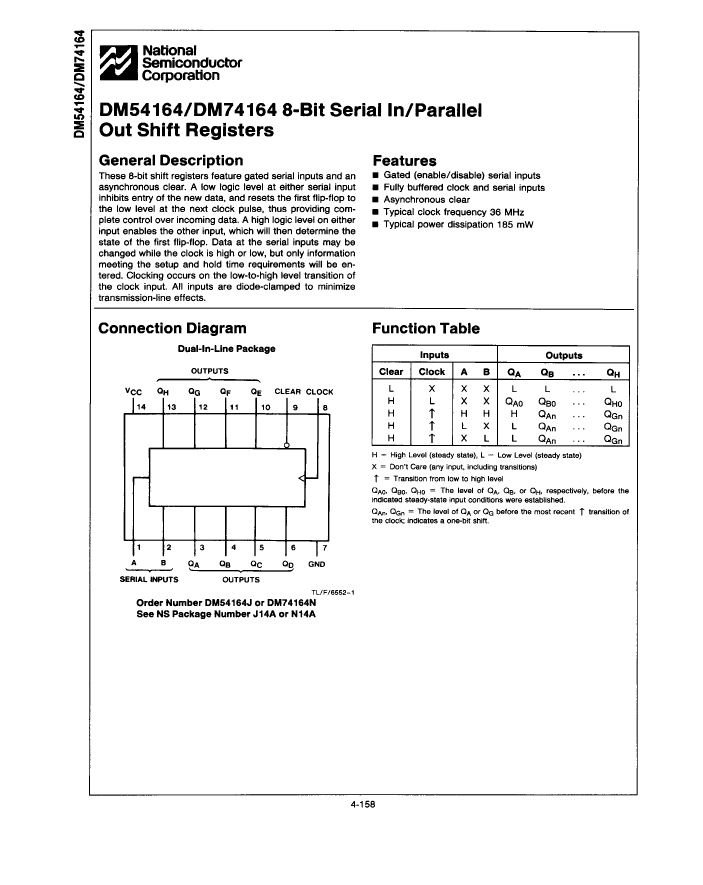

DM54164J/883 Overview

Serial In Parallel Out, 54 Series, 8-Bit, Right Direction, True Output, TTL, CDIP14, DIP-14

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Counting direction	RIGHT
series	54
JESD-30 code	R-GDIP-T14
Logic integrated circuit type	SERIAL IN PARALLEL OUT
Number of digits	8
Number of functions	1
Number of terminals	14

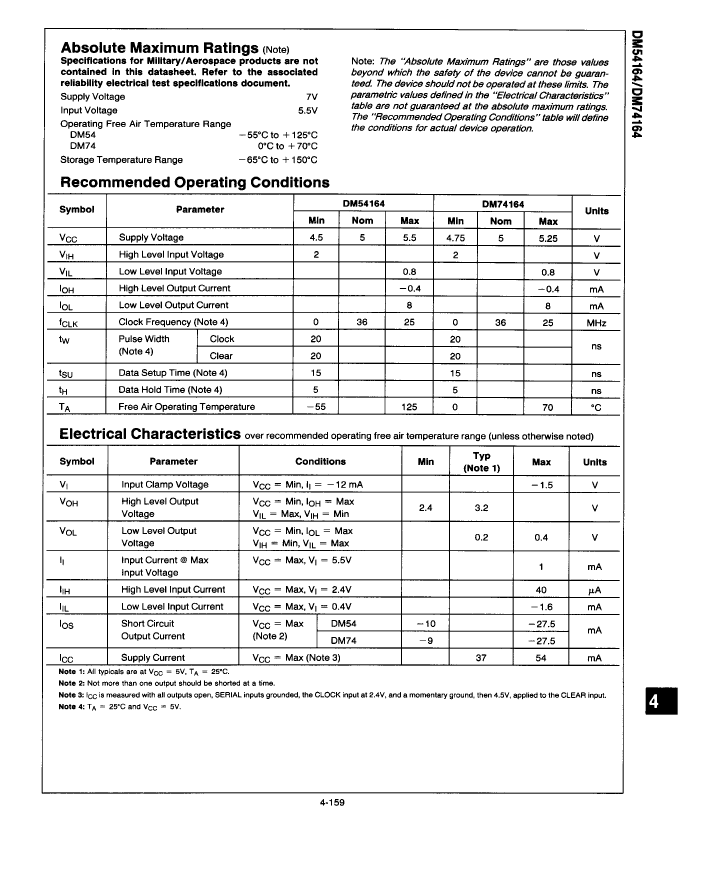

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE

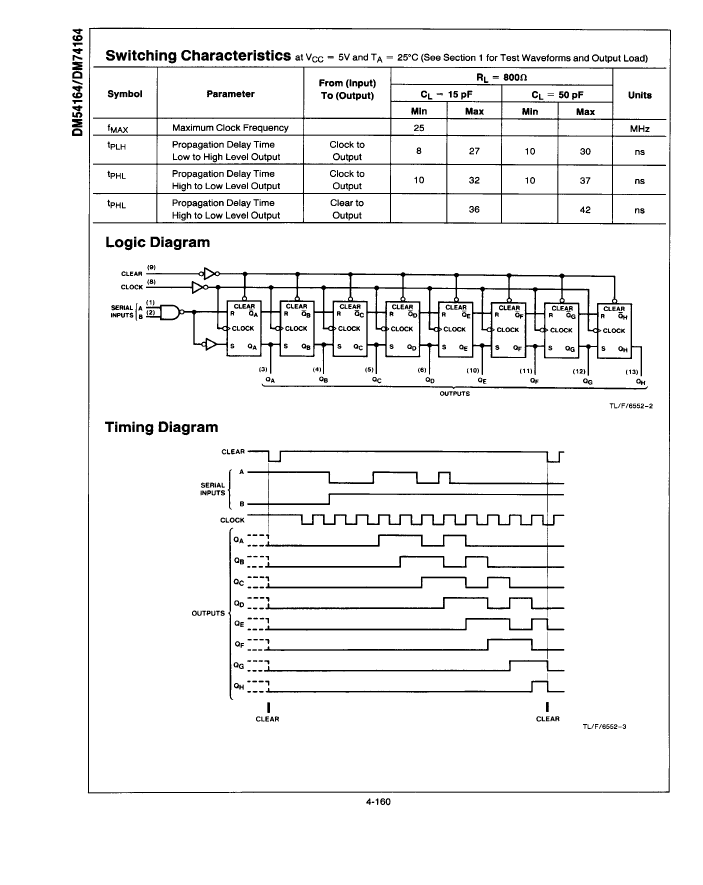

propagation delay (tpd)	37 ns
Filter level	MIL-STD-883
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	25 MHz

This Material Copyrighted By Its Respective Manufacturer

	DM54164J/883	DM54164J
Description	Serial In Parallel Out, 54 Series, 8-Bit, Right Direction, True Output, TTL, CDIP14, DIP-14	Serial In Parallel Out, 54 Series, 8-Bit, Right Direction, True Output, TTL, CDIP14, DIP-14
Maker	Rochester Electronics	Rochester Electronics
package instruction	DIP,	DIP,
Reach Compliance Code	unknown	unknown
Counting direction	RIGHT	RIGHT
series	54	54
JESD-30 code	R-GDIP-T14	R-GDIP-T14
Logic integrated circuit type	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT
Number of digits	8	8
Number of functions	1	1
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output polarity	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
propagation delay (tpd)	37 ns	37 ns
Maximum seat height	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	7.62 mm
minfmax	25 MHz	25 MHz
