DDM-43P2S-1ADN-A191-A197 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DDM-43P2S-1ADN-A191-A197

DDM-43P2S-1ADN-A191-A197: DescriptionD Subminiature Connector, 43 Contact(s), Female, Solder Terminal,; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DDM-43P2S-1ADN-A191-A197 Overview

D Subminiature Connector, 43 Contact(s), Female, Solder Terminal,

DDM-43P2S-1ADN-A191-A197 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	EMI/RFI SHIELDED, PANEL MOUNT
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	DDM
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Termination type	SOLDER
Total number of contacts	43
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

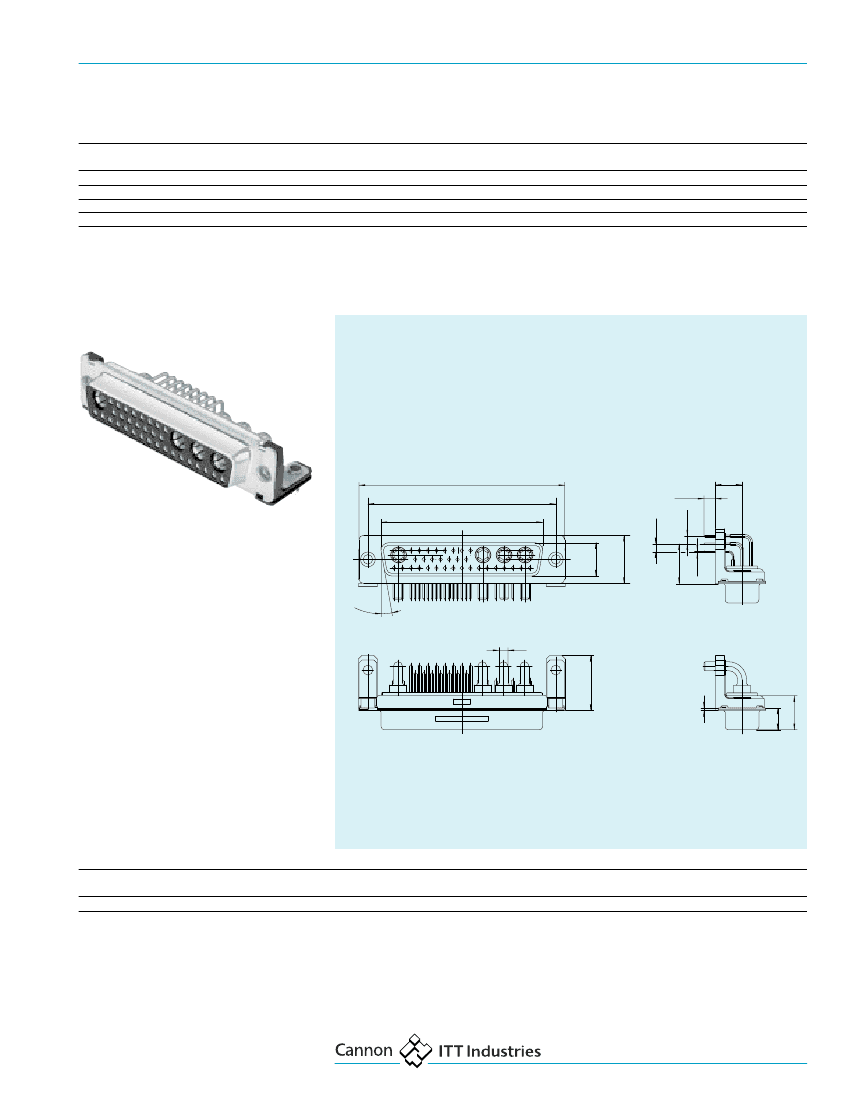

D Subminiature

Part numbers with plastic bracket with

grounding bracket and captive nut M3

Shell Layout

size

P/N without pushfit

P/N with pushfit

Combo D

/European Version

Part numbers with plastic bracket with

grounding bracket with bushing diam. 3,05

P/N without pushfit

P/N with pushfit

40 A High power 90° – European footprint, size DD, with plastic bracket and grounding bracket

Part numbers with plastic bracket with

grounding bracket with post M3

P/N without pushfit

P/N with pushfit

24W7

36W4

43W2

47W1

DDM-24P7S-1AVN-A191-A197

DDM-36P4S-1AVN-A191-A197

DDM-43P2S-1AVN-A191-A197

DDM-47P1S-1AVN-A191-A197

DDM-24P7S-1AVN-A191-A197-146

DDM-36P4S-1AVN-A191-A197-146

DDM-43P2S-1AVN-A191-A197-146

DDM-47P1S-1AVN-A191-A197-146

DDM-24P7S-1ADN-A191-A197

DDM-36P4S-1ADN-A191-A197

DDM-43P2S-1ADN-A191-A197

DDM-47P1S-1ADN-A191-A197

DDM-24P7S-1ADN-A191-A197-146

DDM-36P4S-1ADN-A191-A197-146

DDM-43P2S-1ADN-A191-A197-146

DDM-47P1S-1ADN-A191-A197-146

DDM-24P7S-1AGN-A191-A197

DDM-36P4S-1AGN-A191-A197

DDM-43P2S-1AGN-A191-A197

DDM-47P1S-1AGN-A191-A197

DDM-24P7S-1AGN-A191-A197-146

DDM-36P4S-1AGN-A191-A197-146

DDM-43P2S-1AGN-A191-A197-146

DDM-47P1S-1AGN-A191-A197-146

For performance class 1 replace A191 with A190.

For performance class 3 delete A191.

For post 4-40 UNC thread replace 1AVN with 1AWN and 1AGN

with 1AJN.

For pushfit 90° hole diameter 3,2 mm replace 146

with 162.

Socket

3,7

±0,3

2,54

8,7

±0,15

For contact cavity arrangements, see page 53.

For pcb hole pattern, see page 72 – 75.

For mounting methods, see page 86 – 87.

For panel cut-outs, see our D Subminiature

catalogue.

2,54

ITT

36W4P

13,1

±0,2

CANNON

Ø3

17,8

±0,2

Ø 0,6

Dimensions

Shell

size

0,38

0,13

52,4

0,13

0,25

0,2

0,4

66,95

61,1

10,75

15,4

10,9

0,8

6,95
