SUF2002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SUF2002

SUF2002: DescriptionRECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size349KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SUF2002 Overview

RECTIFIER DIODE

SUF2002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Gulf Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW POWER LOSS
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-204AC
JESD-30 code	O-PALF-W2
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	60 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-50 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

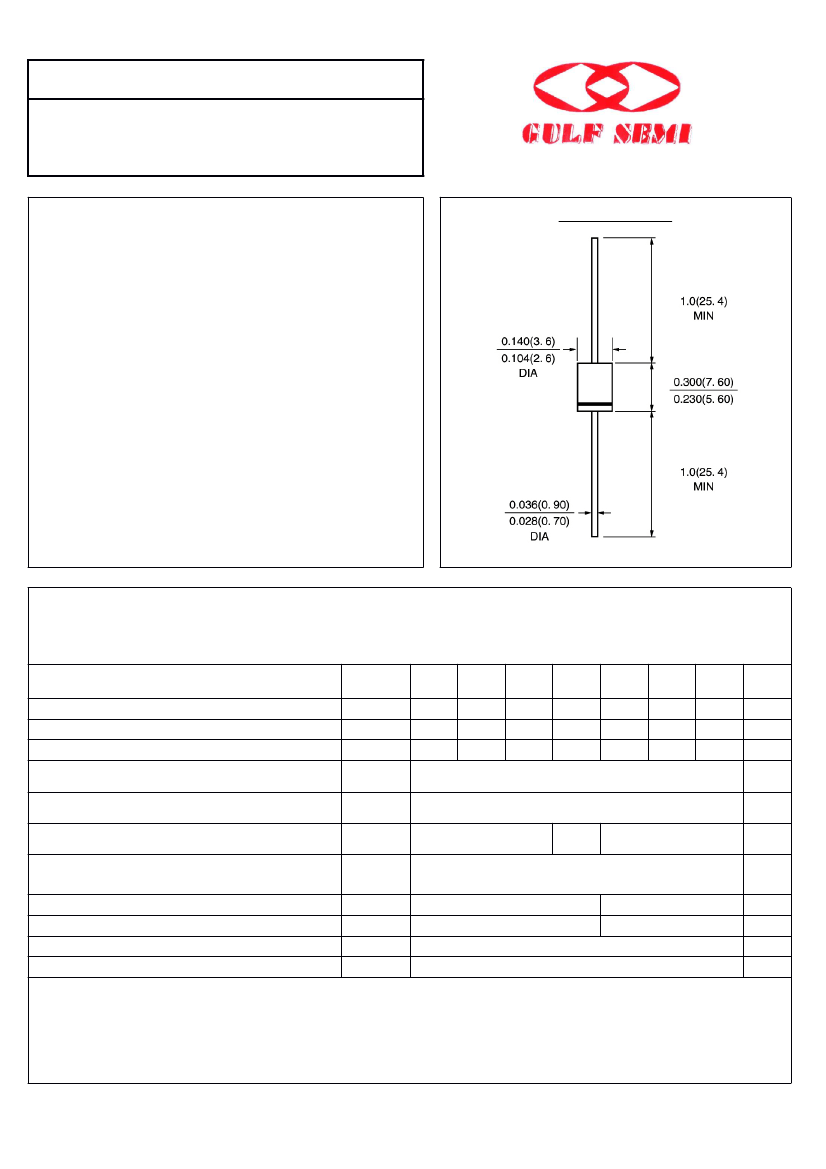

SUF2001 THRU SUF2007

HIGH EFFICIENT

PLASTIC SILICON RECTIFIER

VOLTAGE:50 TO 1000V

CURRENT: 2.0A

FEATURE

Low power loss

High surge capability

Ultrafast recovery time for high efficiency

High temperature soldering guaranteed

250°C/10sec/0.375”lead length at 5 lbs tension

DO-15\DO-204AC

MECHANICAL DATA

Terminal:Plated axial leads solderable per

MIL-STD 202E, method 208C

Case:Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity:color band denotes cathode

Mounting position:any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/8’lead length at Ta =50°C

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Forward Voltage at Forward current

1A Peak

Maximum DC Reverse Current

at rated DC blocking voltage

Ta =25°C

Ta =100°C

Vrrm

Vrms

Vdc

If(av)

Ifsm

SUF

2001

SUF

2002

100

SUF

2003

200

140

200

SUF

2004

400

280

400

2.0

60.0

SUF

2005

600

420

600

SUF

2006

800

560

800

SUF

2007

1000

700

1000

units

1.0

1.4

10.0

100.0

20.0

-50 to +125

1.7

µA

Trr

R(ja)

Tstg,Tj

Maximum Reverse Recovery Time (Note 1)

Typical Junction Capacitance

(Note 2)

Typical Thermal Resistance

(Note 3)

Storage and Operating Junction Temperature

°C/W

°C

Note:

1. Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

2. Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

3. Thermal Resistance from Junction to Ambient at 3/8”lead length, P.C. Board Mounted

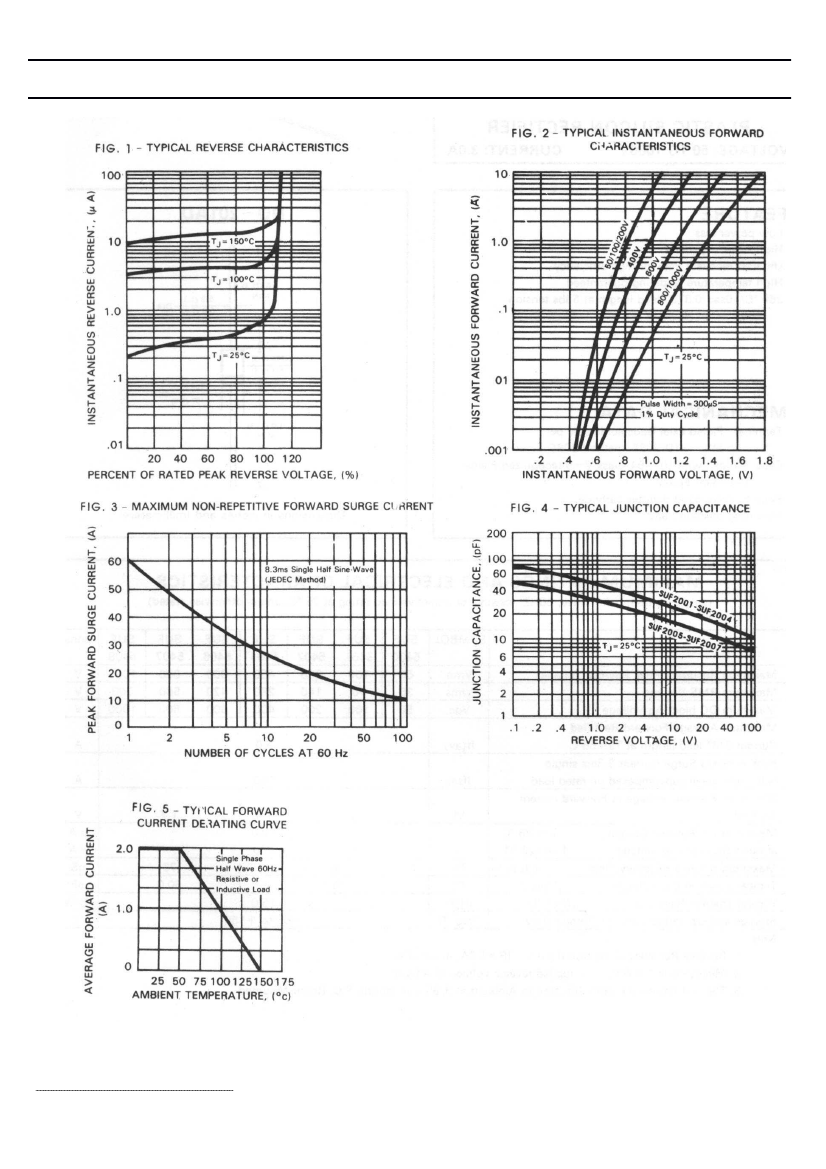

Rev.A4

www.gulfsemi.com

SUF2002 Related Products

	SUF2002	SUF2003	SUF2004	SUF2005	SUF2006
Description	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Gulf Semiconductor	Gulf Semiconductor	Gulf Semiconductor	Gulf Semiconductor	Gulf Semiconductor
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1.4 V	1.7 V	1.7 V
JEDEC-95 code	DO-204AC	DO-204AC	DO-204AC	DO-204AC	DO-204AC
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Humidity sensitivity level	1	1	1	1	1
Maximum non-repetitive peak forward current	60 A	60 A	60 A	60 A	60 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	2 A	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	100 V	200 V	400 V	600 V	800 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.075 µs	0.075 µs
surface mount	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
