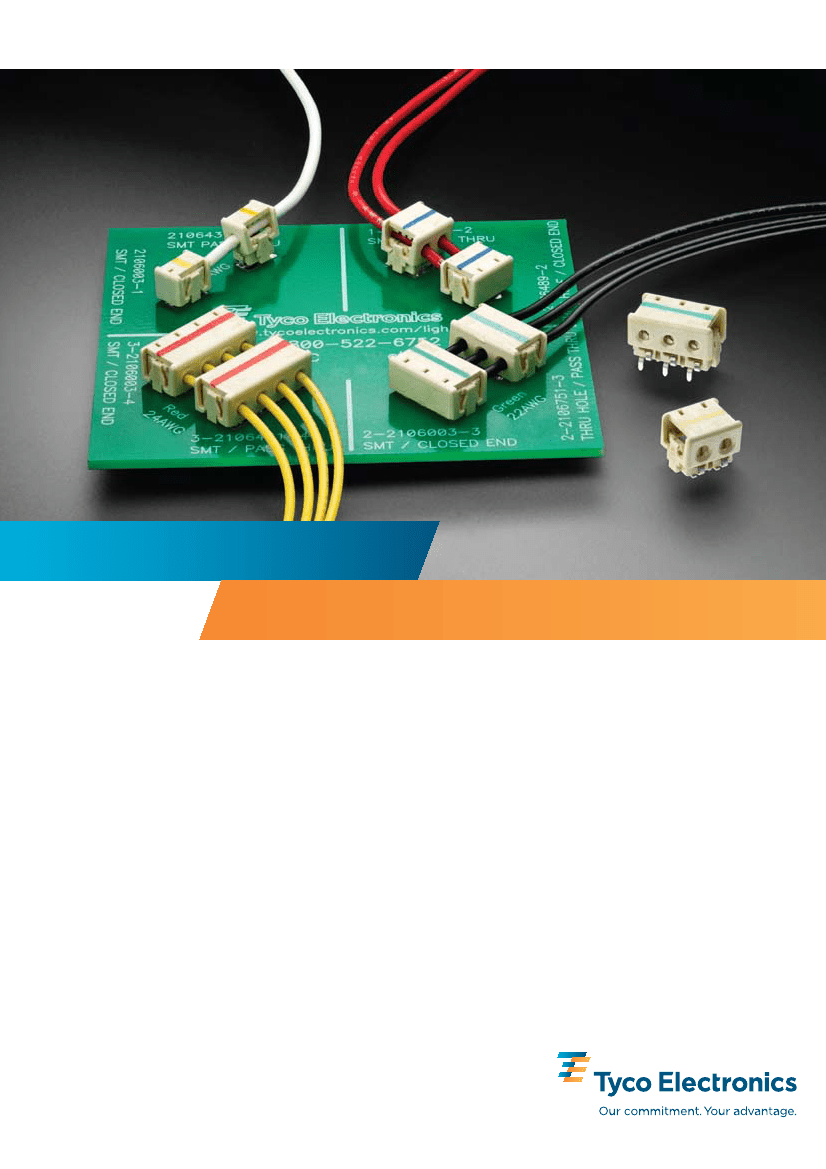

Introducing
IDC SSL Connector
The IDC SSL connector series are insulation displacement (IDC) SMT and thru-hole
wire-to-board connectors designed for quick, tool-less termination of discrete wires
onto LED printed circuit boards. These connectors use Tyco Electronics proven
insulation displacement technology to provide a robust, stable electrical and
mechanical power connection to single or multiple printed circuit boards in
solid state lighting and non-lighting applications.
KEY FEATURES
•
Available in 1, 2, 3 and 4 positions
•

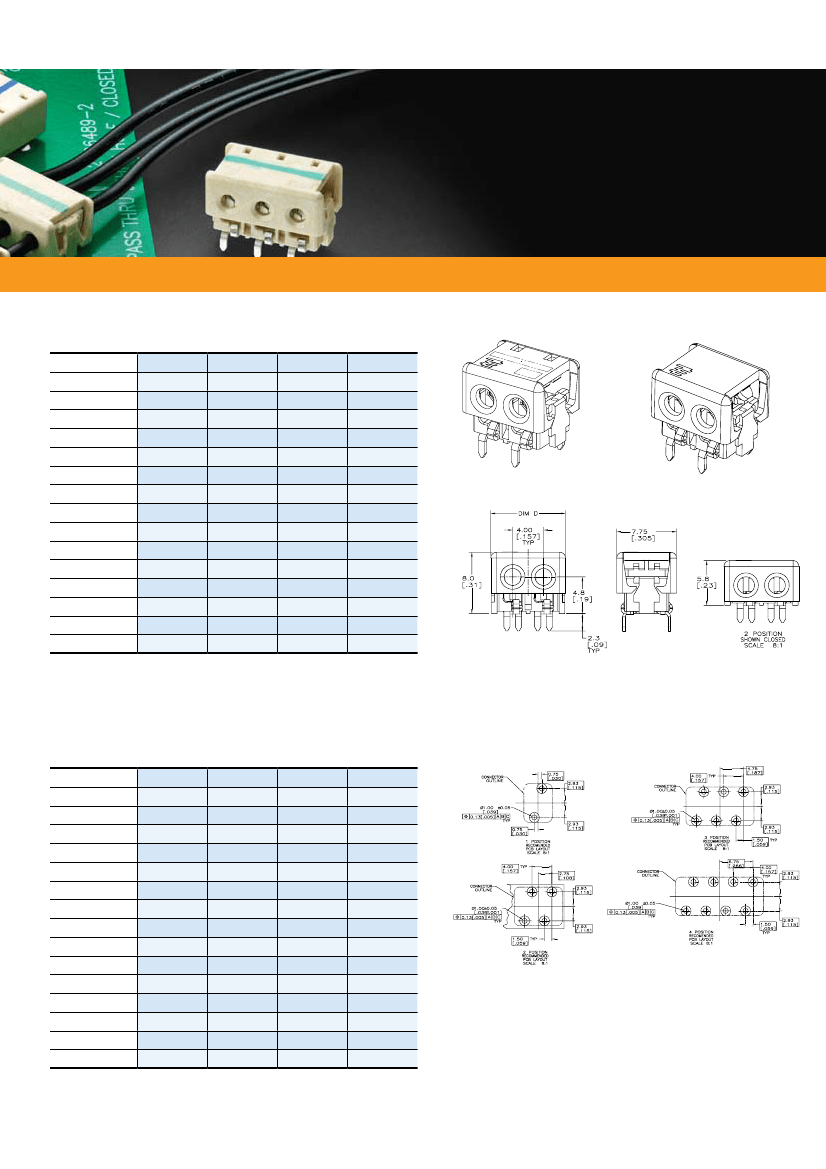

SMT and thru-hole
•

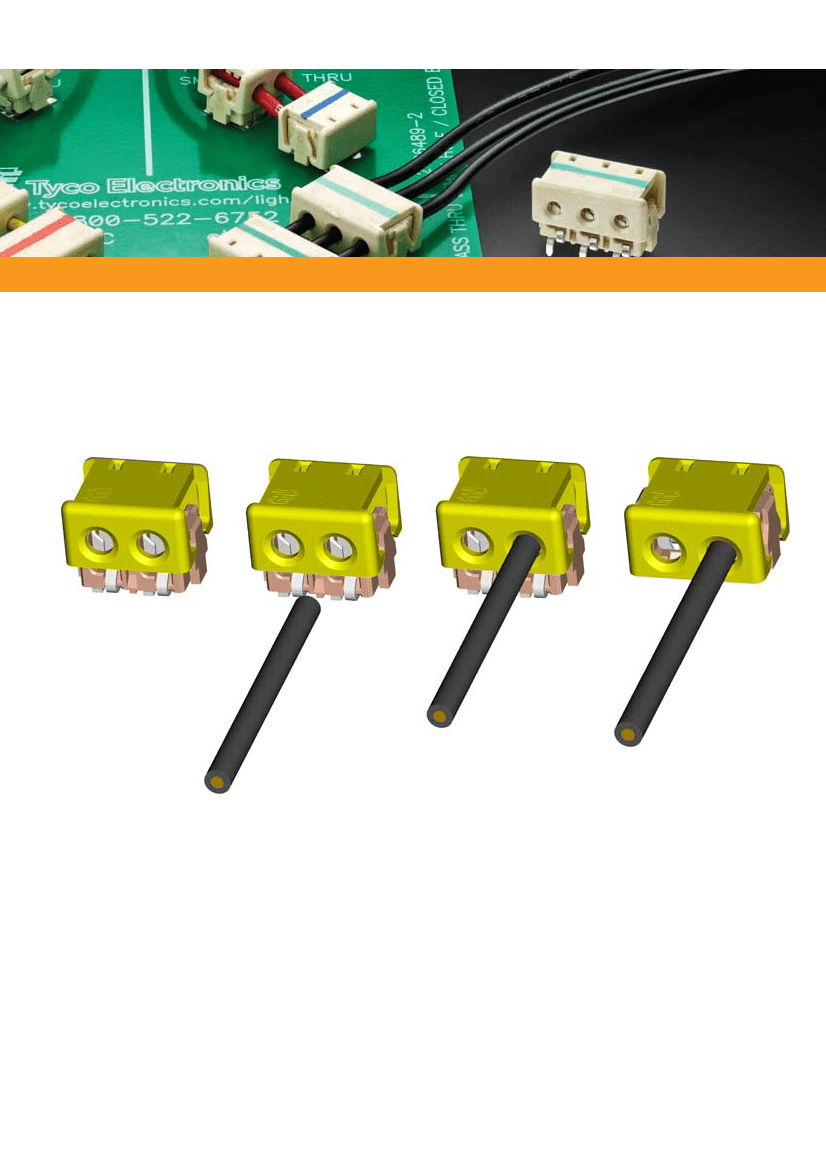

Closed end and feed thru
•
18-24 AWG stranded and solid wire
•
Dual IDC slots for redundancy
•
Wire placement “viewing” window
•
Wire gauge color coded
•
Tool-less termination
APPLICATIONS
•
LED lighting controls
•
General illumination LED fixtures
•
Connecting strings of pcb LED
light modules
•
Non-lighting wire-to-board
applications
IDC SSL Connector
LIGHTING
APPLICATIONS
elecTrical
Operating Current : 8 AMPS (18 AWG only)
Maximum Operating Voltage : 250 VAC / 250 VDC
Dielectric Withstanding Voltage : 1500VAC
mecHanical
channel/Sign
emergency
Operating Temperature : -40°C to 105°C
Wire Retention : 5 lbs. minimum
maTerialS
Housings : 94 V0 rated high temperature resistant thermoplastic
digital Signage
architectural
Contacts : Tin over nickel plated copper alloy
STandardS and SpecificaTionS
UL 1977
Design Objectives : 108-2404
Street & Stadium
indoor
Application Specification : 114-13266
Tape and Reel Packaging per EIA-481
office
commercial
refrigeration
Tyco Electronics
I IDC SSL Connector

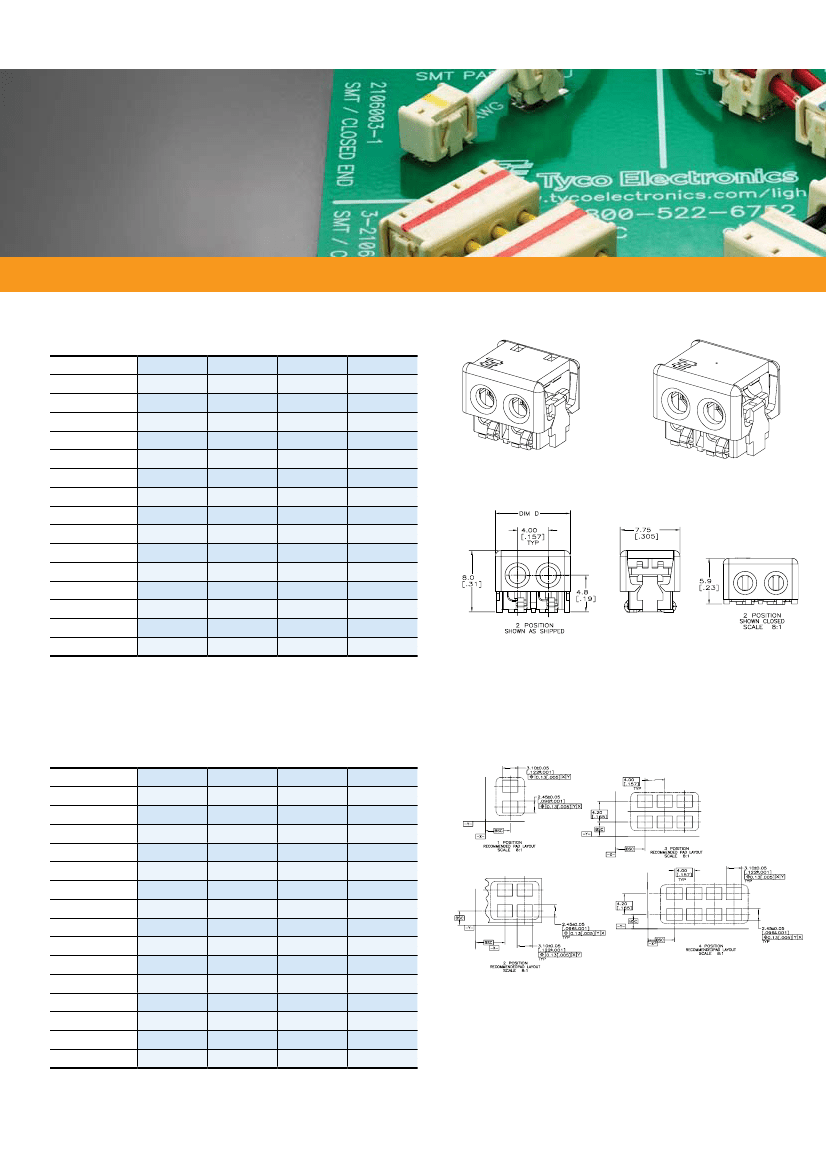

PCB Design
