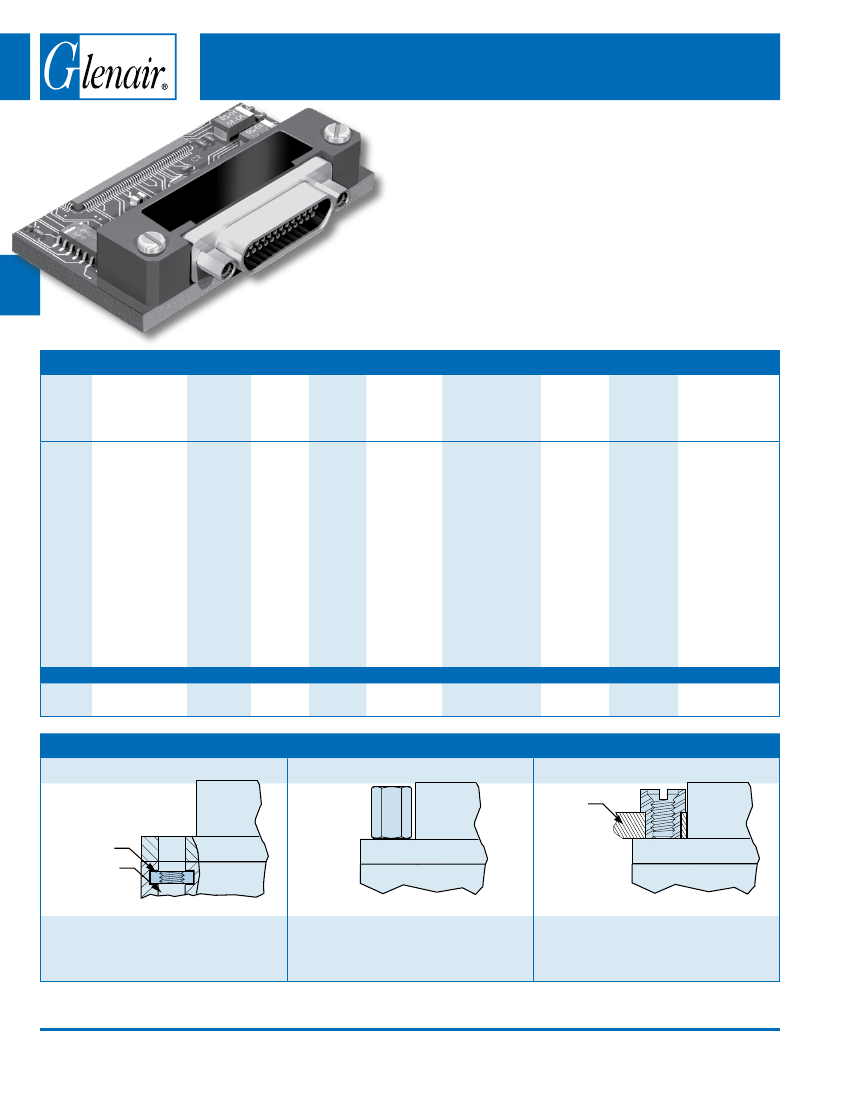

Micro-D Metal Shell Printed Circuit Board Connectors
BR Style Right Angle thru-Hole
High Performance–These
connectors feature gold-plated
TwistPin contacts for best performance. PC tails are
.020 inch diameter. Specify nickel-plated shells or
cadmium plated shells for best availability.
Solder-Dipped–Terminals
are coated with SN63/Pb37 tin-
lead solder for best solderability. Optional gold-plated
terminals are available for RoHS compliance.
Front Panel or Rear Mountable–Can
be installed through
panels up to .125 inch thick. Specify rear panel mount
jackposts.
A
B
C
D
E
F
G
H
J
K
L
M
N
P
HEX NUT
EPOXY FILL
HoW to oRDER BR StYLE PCB MICRo-D CoNNECtoRS
Shell Material
and Finish
Aluminum Shell
1
–
Cadmium
2
–
Nickel
Series
MWDM
Insulator Contact Contact termination
Material Layout
type
type
L
– LCP
30% Glass-
Filled Liquid
Crystal
Polymer
Jackpost
option
(omit for None)
P
–
Jackpost
Jackposts for
Rear Panel
Mounting
threaded terminal
Length In
Insert
Inches
option
t
Threaded
Insert In
Board Mount
Hole
(Omit for
Thru-Hole)
Gold-Plated
terminal Mod
Code
These
connectors are
solder-dipped in
63/37 tin-lead
solder.
to delete the
solder dip
and change
to gold-plated
terminals, add
code 513
4
5
6
–
Black
–
Gold
Anodize
–
Chem Film
9
15
21
25
31
37
51
100
P
Pin
BR
Board Right
Angle
S
Socket
Stainless Steel
Shell
3
–
Passivated
R1
R2
R3
R4
R5
–
–
–
–
.032” Panel
.047” Panel
.062” Panel
.093” Panel
.080
.110
.125
.140
.150
.172
.190
.250
Length in
Inches
±
.015
(0.38)
–
.125” Panel
Sample Part Number
MWDM
1
L
– 15
P
BR
R3
– .110
MICRo-D JACkPoSt oPtIoNS
No Designator
P
Panel
R1 thru R5
For use with Glenair jackposts only. Order hardware
separately. Install with threadlocking compound.
thru-Hole
Factory installed, not intended for removal.
Standard Jackpost
Shipped loosely installed. Install with permanent
threadlocking compund.
Jackpost for Rear Panel Mounting
© 2006 Glenair, Inc.
www.glenair.com
CAGE Code 06324/0CA77
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
C-6
Micro-D Metal Shell Printed Circuit Board Connectors
BR Style Right Angle thru-Hole
PERFoRMANCE SPECIFICAtIoNS
Current Rating
DWV
Insulation Resistance
Contact Resistance
Low Level Contact Resist.
Magnetic Permeability
Operating Temperature
Shock, Vibration
Mating Force
3 AMP
600 VAC Sea level
5000 Megohms Minimum
8 Milliohms Maximum
32 Milliohms Maximum
2
µ
Maximum
-55° C. to +150° C.
50 g., 20g.
(10 Ounces) X (# of Contacts)
MAtERIALS AND FINISHES
Aluminum Alloy 6061 or Stainless Steel, 300
Connector Shell Series, passivated. See Ordering Info for
Plating Options
Insulator, Tray
Liquid Crystal Polymer (LCP)
Interfacial Seal
Flourosilicone Rubber, Blue
Pin Contact
Beryllium Copper Gold over Nickel Plating
Socket Contact
Copper Alloy Gold Over Nickel Plating
PCB Terminals Gold Plated Copper Alloy, Solder Dipped
Hardware
300 Series Stainless Steel
Encapsulant
Epoxy Resin Hysol EE4215
A
F
B
C
H
F
J
D
E
G
K
.020 (0.5) ± .002 (0.1)
2 X PCB MTNG HOLES
9-51 CONTACTS .096 ± .005 (2.43 ± 0.13)
100 CONTACTS .125 ± .005 (23.18 ± 0.13)
Tail Length
± .015 (0.38)
BR StYLE MICRo-D PCB CoNNECtoRS
A Max.
Layout
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
51P
51S
100P
100S
In.
mm.
B
In.
mm.
±.003 ± 0.08
.565 14.35
.565 14.35
.715 18.16
.715 18.16
.865 21.97
.865 21.97
.965 24.51
.965 24.51
1.115 28.32
1.115 28.32
1.265 32.13
1.265 32.13
1.215
1.215
1.800
1.800
30.86
30.86
45.72
45.72
C Max.
In.
mm.
D Max.
In.
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
.224
.293
.270
.333
mm.
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
5.69
7.44
6.86
8.46
E Max.
In.
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
mm.
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
F
In.
mm.
±.007 ± 0.18
1.150 29.21
1.150 29.21
1.300 33.02
1.300 33.02
1.450 36.83
1.450 36.83
1.550 39.37
1.550 39.37
1.800 45.72
1.800 45.72
2.100 53.34
2.100 53.34
1.600
1.600
2.500
2.500
40.64
40.64
63.50
63.50
G Max.
In.
mm.
In.
±.003
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
H
mm.
±0.08
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
In.
±.015
.125
.125
.125
.125
.125
.125
.125
.125
.125
.125
.125
.125
.125
.125
.225
.225
J
mm.
±0.38
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
5.72
5.72
In.
±.010
.150
.150
.150
.150
.150
.150
.150
.150
.150
.150
.150
.150
.150
.150
.150
.150
K
mm.
±0.25
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
3.81
1.390 35.31
1.390 35.31
1.540 39.12
1.540 39.12
1.690 42.93
1.690 42.93
1.790 45.47
1.790 45.47
2.040 51.82
2.040 51.82
2.340 59.44
2.340 59.44
1.875
1.875
2.780
2.780
47.63
47.63
70.60
70.60
.333 8.46
.400 10.16
.483 12.27
.551 14.00
.633 16.08
.701 17.81
.733 18.62
.801 20.35
.883 22.43
.951 24.16
1.033 26.24
1.101 27.96
.983
1.051
1.383
1.451
24.97
26.70
35.13
36.86
.465 11.81
.465 11.81
.465 11.81
.465 11.81
.465 11.81
.465 11.81
.465 11.81
.465 11.81
.465 11.81
.465 11.81
.465 11.81
.465 11.81
.565
.565
.765
.765
14.35
14.35
19.43
19.43
.351 8.92
.351 8.92
.394 10.01
.394 10.01
© 2006 Glenair, Inc.
www.glenair.com
CAGE Code 06324/0CA77
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
C-7
Micro-D
PCB
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Micro-D
PCB
Micro-D Metal Shell Printed Circuit Board Connectors
BR Style Right Angle thru-Hole

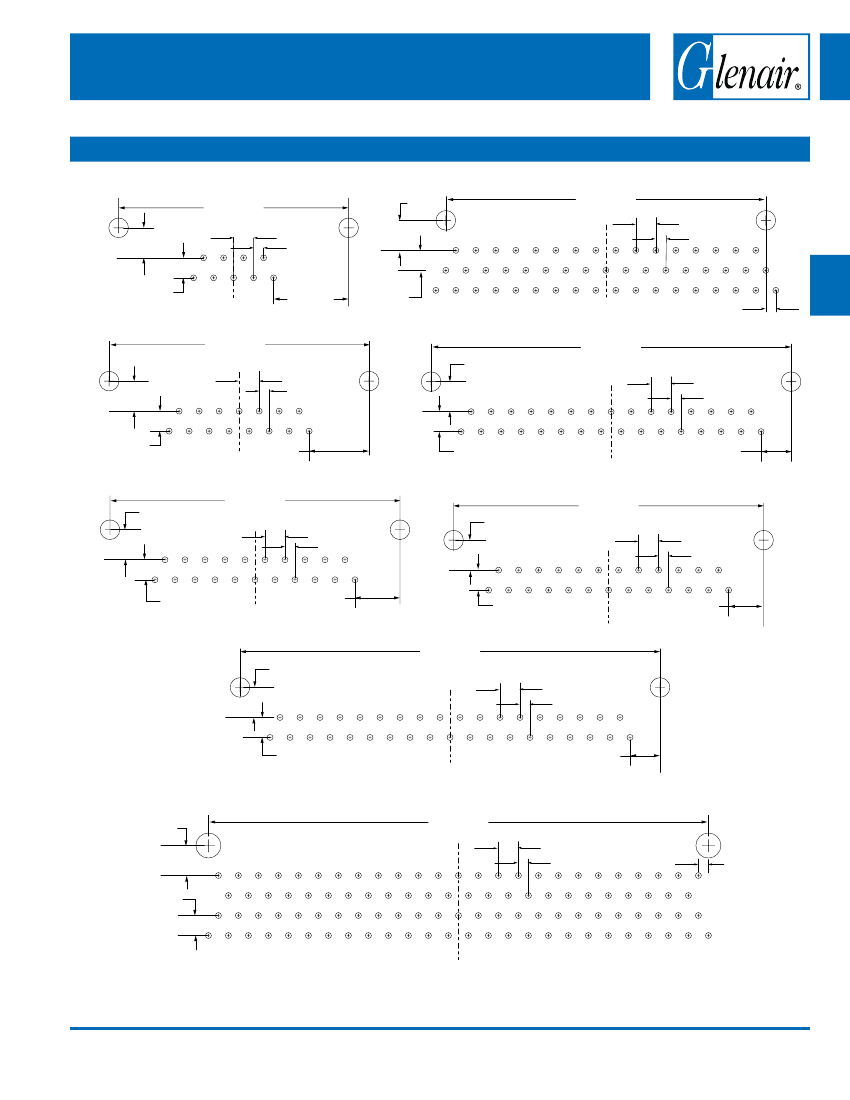

MICRo-D BR BoARD MouNt CoNNECtoR PCB LAYoutS – PIN CoNNECtoRS
Patterns shown are for connector mounting side of PC board. 9 Thru 51 Contacts .096 (2.44) Diameter Mounting Holes, 100 Pin .125 (3.18) Diameter
1.150 (29.21)
.150 (3.81)
9
8
4
3
A
B
C
D
E
F
G
H
J
K
L
M
N
P
.150 (3.81)
.100 (2.54) TYP
.050 (1.27) TYP
1.600 (40.64)
C
L
.100 (2.54) TYP
.050 (1.27) TYP
51
50
34
17
33
16
49
32
15
48
31
14
47
30
13
46
29
12
45
28
11
44
27
10
9
43
26
8
42
25
7
41
24
6
40
23
5
39
22
4
38
21
3
37
20
2
36
19
1
C
L
7
2
6
1
.100 (2.54)
TYP
5
35
.375 (9.53)
9 PIN MWDM-9PBR
1.300 (33.02)
C
L
.150 (3.81)
15
14
7
6
13
5
12
4
11
3
.100 (2.54)
TYP
18
51 PIN MWDM-51PBR
1.800 (45.72)
.150 (3.81)
.050 (1.27)
.100 (2.54) TYP
.050 (1.27) TYP
10
2
9
1
16
31
15
30
14
29
13
28
12
27
11
26
10
25
9
C
L
24
8
23
7
22
6
21
5
.100 (2.54) TYP
.050 (1.27) TYP
20
4
19
3
18
2
17
1
.100 (2.54)
TYP
8
.300 (7.62)
15 PIN MWDM-15PBR
.150 (3.81)
1.450(36.8)
C
L
.100 (2.54)
TYP
.150 (3.81)
31 PIN MWDM-31PBR
1.550 (39.37)
.150 (3.81)
.100 (2.54) TYP
.050 (1.27) TYP
16
15
5
4
14
3
13
2
12
1
13
25
12
24
11
23
10
22
9
21
8
C
L
20
7
19
6
18
5
17
4
.100 (2.54) TYP
.050 (1.27) TYP
16
3
15
2
14
1
21
11
10
20
9
19
8
18
7
17
6
.100 (2.54)
TYP
.225 (5.72)
.100 (2.54)
TYP
.175 (4.45)
21 PIN MWDM-21PBR
2.100 (53.34)
.150 (3.81)
C
L
37
19
18
36
17
35
16
34
15
33
14
32
13
31
12
30
11
29
10
28
9
27
8
26
7
25
6
25 PIN MWDM-25PBR
.100 (2.54) TYP
.050 (1.27) TYP
24
5
23
4
22
3
21
2
20
1
.100 (2.54)
TYP
.150 (3.81)
37 PIN MWDM-37PBR
2.500 (63.50)
C
L
.150 (3.81)
.100 (2.54) TYP
.050 (1.27) TYP
.050
80
56
32
7
6
31
5
55
30
4
79
54
29
3
78
53
28
2
77
52
27
1
76
86
62
61
37
12
11
36
10
85
60
35
9
84
59
34
8
83
58
33
82
57
81
100
99
74
50
98
73
49
24
23
97
72
48
22
96
71
47
21
95
70
46
20
94
69
45
19
93
68
44
18
92
67
43
17
91
66
42
16
90
65
41
15
89
64
40
14
88
63
39
13
87
.100 (2.54)
TYP
51
26
75
38
25
100 PIN MWDM-100PBR
© 2006 Glenair, Inc.
www.glenair.com
CAGE Code 06324/0CA77
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
C-8
Micro-D Metal Shell Printed Circuit Board Connectors
BR Style Right Angle thru-Hole

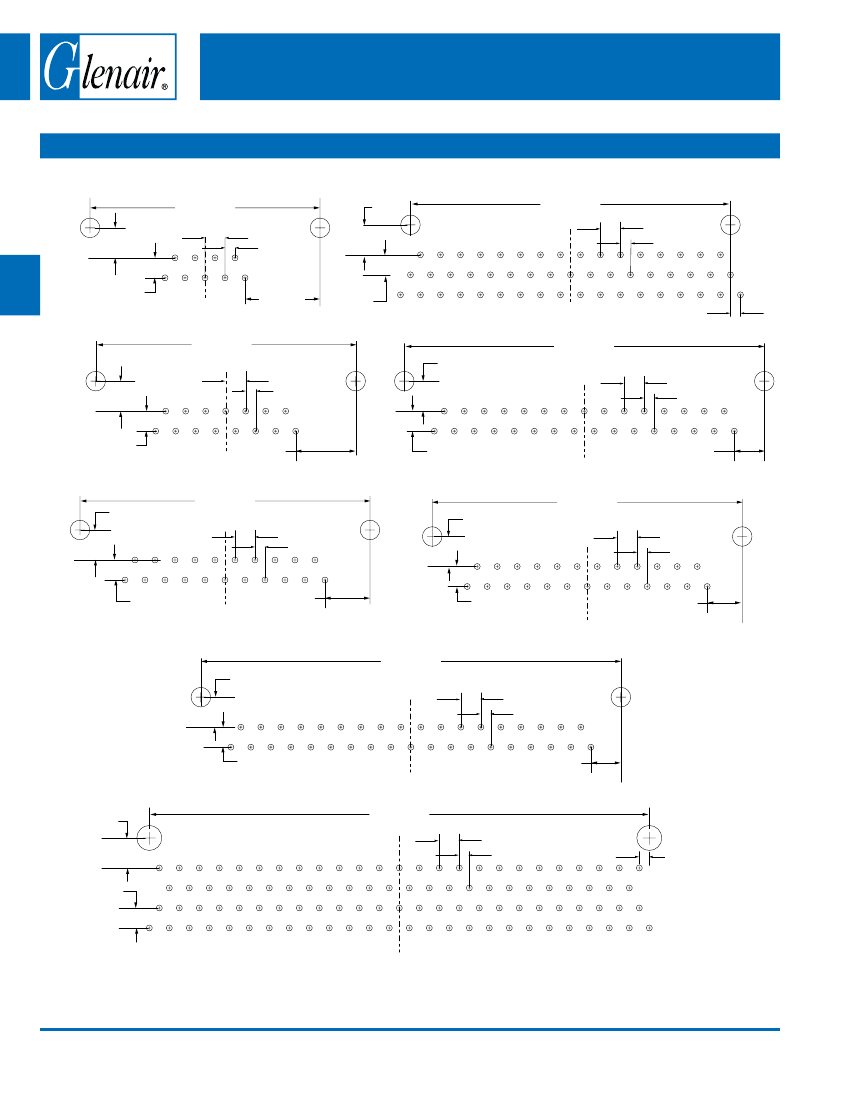

MICRo-D BR BoARD MouNt CoNNECtoR PCB LAYoutS – SoCkEt CoNNECtoRS
Patterns shown are for connector mounting side of PC board. 9 Thru 51 Contacts .096 (2.44) Diameter Mounting Holes, 100 Pin .125 (3.18) Diameter
1.150 (29.21)
.150 (3.81)
6
7
2
3
.150 (3.81)
.100 (2.54) TYP
.050 (1.27) TYP
1.600 (40.64)
C
L
.100 (2.54) TYP
.050 (1.27) TYP
36
19
20
2
3
37
21
4
38
22
5
39
23
6
40
24
7
41
25
8
42
26
9
43
27
10
44
28
11
45
29
12
46
30
13
47
31
14
48
32
15
49
33
16
50
34
17
51
35
18
C
L
8
4
9
5
.100 (2.54)
TYP
1
.375 (9.53)
.100 (2.54)
TYP
1
9 SoCkEt MWDM-9SBR
1.300 (33.02)
C
L
.150 (3.81)
9
10
2
3
11
4
12
5
13
6
51 SoCkEt MWDM-51SBR
1.800 (45.72)
.150 (3.81)
.050 (1.27)
.100 (2.54) TYP
.050 (1.27) TYP
14
7
15
8
1
17
2
18
3
19
4
20
5
21
6
22
7
23
C
L
24
8
9
25
10
26
11
27
12
.100 (2.54) TYP
.050 (1.27) TYP
28
13
29
14
30
15
31
16
.100 (2.54)
TYP
1
.300 (7.62)
15 SoCkEt MWDM-15SBR
.150 (3.81)
1.450(36.8)
C
L
.100 (2.54) TYP
.050 (1.27) TYP
17
6
7
18
8
19
9
20
10
21
11
.100 (2.54)
TYP
.150 (3.81)
31 SoCkEt MWDM-31SBR
1.550 (39.37)
.150 (3.81)
C
L
14
1
2
15
3
16
4
17
5
18
6
19
7
20
8
21
9
22
10
.100 (2.54) TYP
.050 (1.27) TYP
23
11
24
12
25
13
12
1
2
13
3
14
4
15
5
16
.100 (2.54)
TYP
.225 (5.72)
.100 (2.54)
TYP
.175 (4.45)
21 SoCkEt MWDM-21SBR
.150 (3.81)
2.100 (53.34)
C
L
25 SoCkEt MWDM-25SBR
.100 (2.54) TYP
.050 (1.27) TYP
29
30
11
12
31
13
32
14
33
15
34
16
35
17
36
18
37
19
20
1
2
21
3
22
4
23
5
24
6
25
7
26
8
27
9
28
10
.100 (2.54)
TYP
.150 (3.81)
37 SoCkEt MWDM-37SBR
.150 (3.81)
2.500 (63.50)
C
L
.100 (2.54) TYP
.050 (1.27) TYP
.050
96
71
46
20
21
47
22
72
48
23
97
73
49
24
98
74
50
25
99
100
75
51
26
90
65
91
66
41
15
16
42
17
67
43
18
92
68
44
19
93
69
45
94
70
95
76
77
52
53
28
2
3
78
54
29
4
79
55
30
5
80
56
31
6
81
57
32
7
82
58
33
8
83
59
34
9
84
60
35
10
85
61
36
11
86
62
37
12
87
63
38
13
88
64
39
14
89
.100 (2.54)
TYP
27
1
40
100 SoCkEt MWDM-100SBR
© 2006 Glenair, Inc.
www.glenair.com
CAGE Code 06324/0CA77
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
C-9
Micro-D
PCB
A
B
C
D
E
F
G
H
J
K
L
M
N
P
京公网安备 11010802033920号
EEWORLD
