HMC642LC5RTR Overview

Analog Circuit,

HMC642LC5RTR Parametric

Parameter Name	Attribute value
Maker	Hittite Microwave（ADI）
package instruction	,
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

HMC642LC5

v02.1208

GaAs MMIC 6-BIT DIGITAL

PHASE SHIFTER, 9 - 12.5 GHz

Typical Applications

The HMC642LC5 is ideal for:

• EW Receivers

• Weather & Military Radar

• Satellite Communications

• Beamforming Modules

• Phase Cancellation

Features

Low RMS Phase Error: 3.5°

Low Insertion Loss: 7 dB

High Linearity: +41 dBm

Positive Control Logic

360° Coverage, LSB = 5.625°

32 Lead Ceramic SMT Package: 25mm

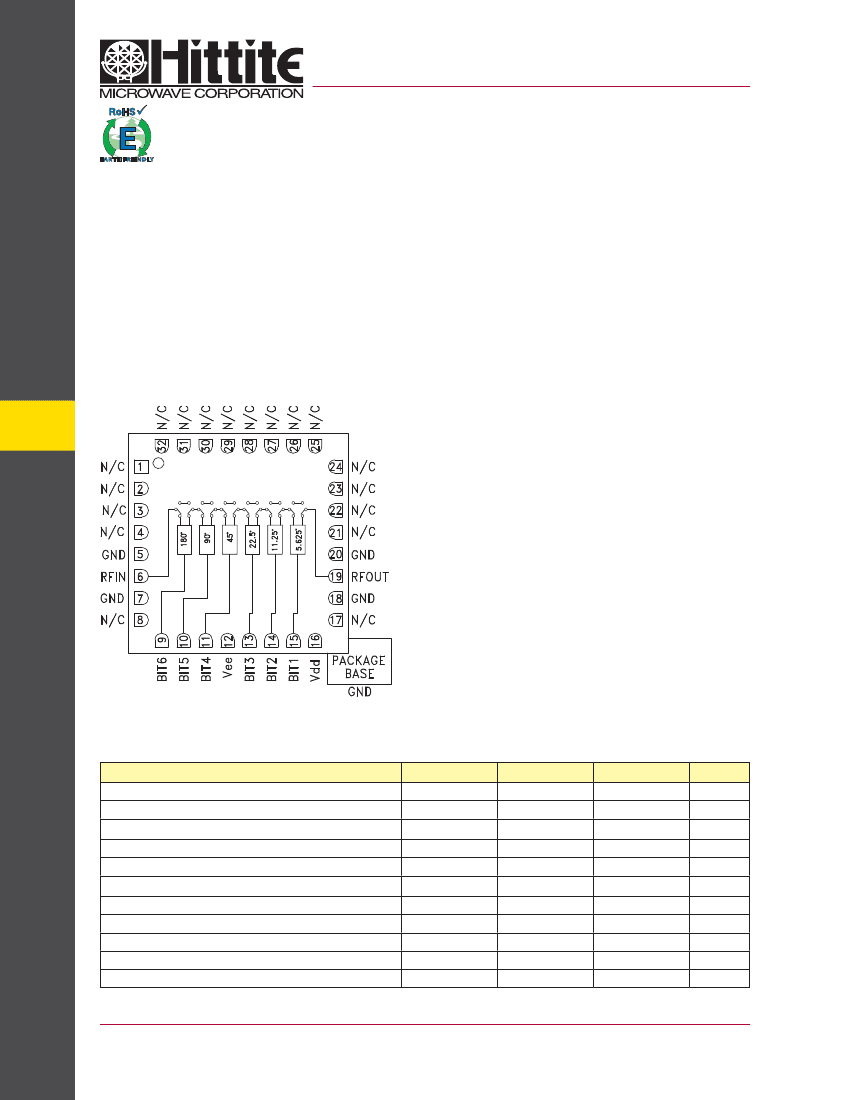

Functional Diagram

General Description

The HMC642LC5 is a 6-bit digital phase shifter

which is rated from 9 to 12.5 GHz, providing 360

degrees of phase coverage, with a LSB of 5.625

degrees. The HMC642LC5 features very low RMS

phase error of 3.5 degrees and extremely low insertion

loss variation of ±0.4 dB across all phase states. This

high accuracy phase shifter is controlled with positive

control logic of 0/+5V The HMC642LC5 is housed in

a compact 5x5 mm ceramic leadless SMT package

and is internally matched to 50 Ohms with no external

components.

PHASE SHIFTERS - DIGITAL - SMT

Electrical Specifi cations

= +25° C, Vss= -5V, Vdd= +5V , Control Voltage= 0/ +5V, 50 Ohm System

Parameter

Frequency Range

Insertion Loss*

Input Return Loss*

Output Return Loss*

Phase Error*

RMS Phase Error

Insertion Loss Variation*

Input Power for 1 dB Compression

Input Third Order Intercept

Control Voltage Current

Bias Control Current

*Note: Major States Shown

Min.

±10

3.5

±0.4

<250

<12

+15 / -10

Typ.

Max.

12.5

Units

GHz

deg

dBm

µA

10 - 22

For price, delivery, and to place orders, please contact Hittite Microwave Corporation:

20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373

Order On-line at www.hittite.com
