PFC2831CNP-15A-P datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> PFC2831CNP-15A-P

PFC2831CNP-15A-P: DescriptionSingle Phase EMI Filter, ROHS COMPLIANT PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size173KB，1 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

PFC2831CNP-15A-P Overview

Single Phase EMI Filter, ROHS COMPLIANT PACKAGE-4

PFC2831CNP-15A-P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknown
Other features	INDUCTANCE 0.25 MILLIHENRY
Certification	UL
filter type	SINGLE PHASE EMI FILTER
high	35 mm
length	35 mm
Manufacturer's serial number	PFC
Installation type	THROUGH HOLE MOUNT
physical size	L35.0XB23.0XH35.0 (mm)/L1.378XB0.906XH1.378 (inch)
Rated current	15 A
width	23 mm

Preview

Download Datasheet

View All

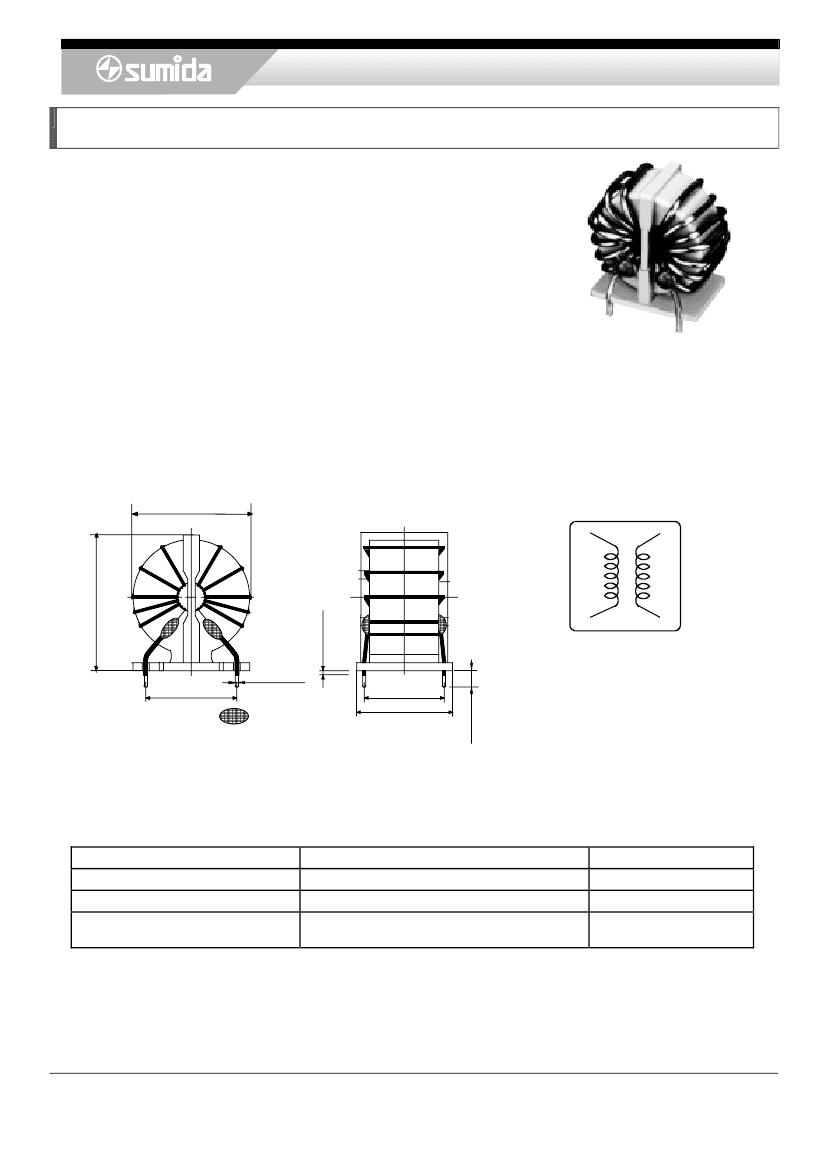

AC COMMON MODE COIL <Pin Type: PFC Series>

Type: PFC2831C

◆

Product Description

・35.0×23.0mm

Max.(L×W), 35.0mm Max. Height .

・Inductance

range: 0.25mH

・Rated

current range:15.0A

・In

addition to the standard versions of parameters shown here,

custom designs are available to meet your exact requirements.

◆

Feature

・Safety

standard conformance such as UL.

・Ideally

used in TV, VCRs, OA devices.

・RoHS

Compliance

◆

Dimensions (mm)

3 5. 0 MA X .

◆

Schematics (Bottom)

②

③

35.0 MAX.

1. 5 MA X.

①

④

ire

1.5

Adhesi ve

＊

Dimension does not include solder used on coil.

＊

Terminal pitch is measured at the base(not from tip of the pin)

◆

Specification(

Part Name: PFC2831CNP-15A-P)

Measuring condition

Inductance

D.C.R.

Rated Current

(1-2) and (4-3)

(1-4)

※1

0.25mH

5mΩ

MIN. (0.36mH TYP.)

MAX.(3.05mΩ

15.0A

TYP.)

1kHz、0.1V

at 20℃

(PIN#2 & PIN#3 shorted)

※1.

Rated current: The DC current at which the temperature rise is

△t＝45℃.(Ta＝20℃).

Please refer to the sales offices on our website for a representative near you

www.sumida.com

3. 6 ±1.0

(20.0)

(17.0)

23.0 MAX.

＊

Winding start is #1,#4 or #2,#3．

＊

#1&#4, #2&#3：should have

same polarity.

1/1
