27C256/BXA-25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 27C256/BXA-25

27C256/BXA-25: DescriptionUVPROM, 32KX8, 250ns, CMOS, CDIP28; Categorystorage storage; File Size358KB，8 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

27C256/BXA-25 Overview

UVPROM, 32KX8, 250ns, CMOS, CDIP28

27C256/BXA-25 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	250 ns
JESD-30 code	R-CDIP-T28
memory density	262144 bi
Memory IC Type	UVPROM
memory width	8
Number of functions	1
Number of terminals	28
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	32KX8
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

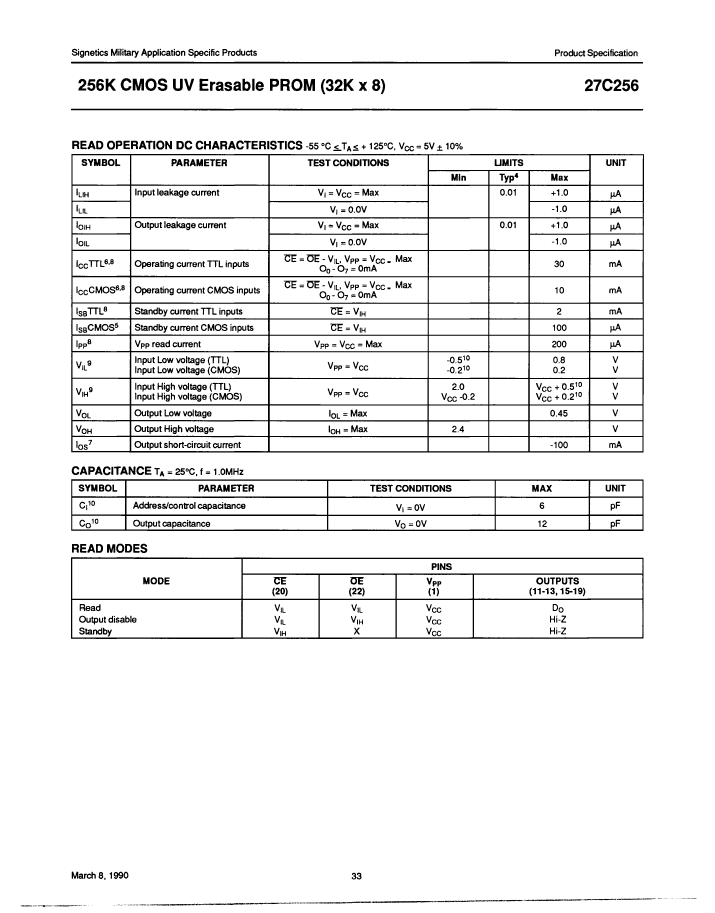

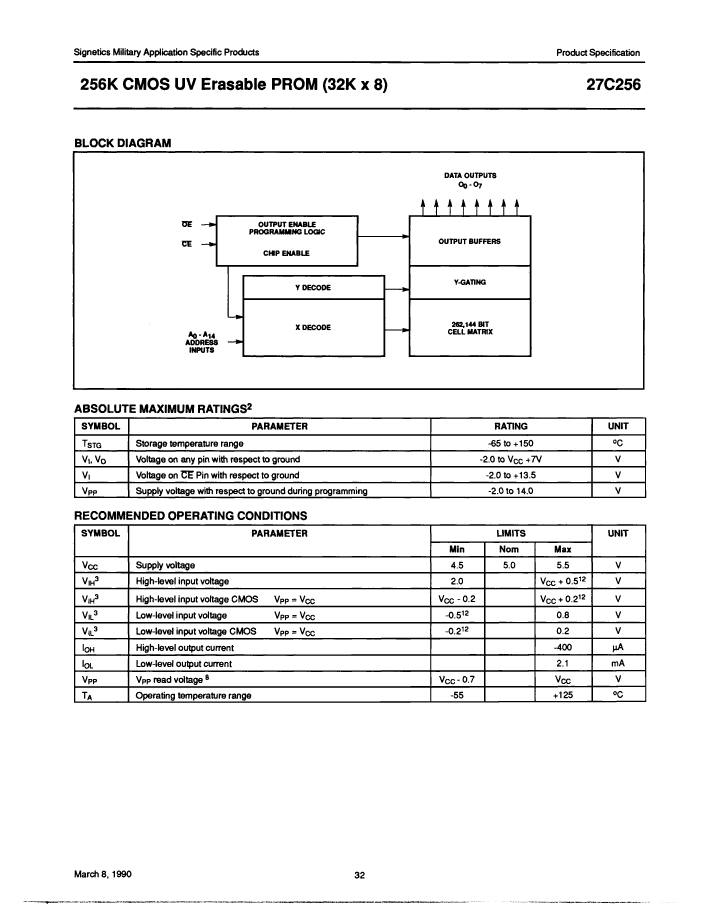

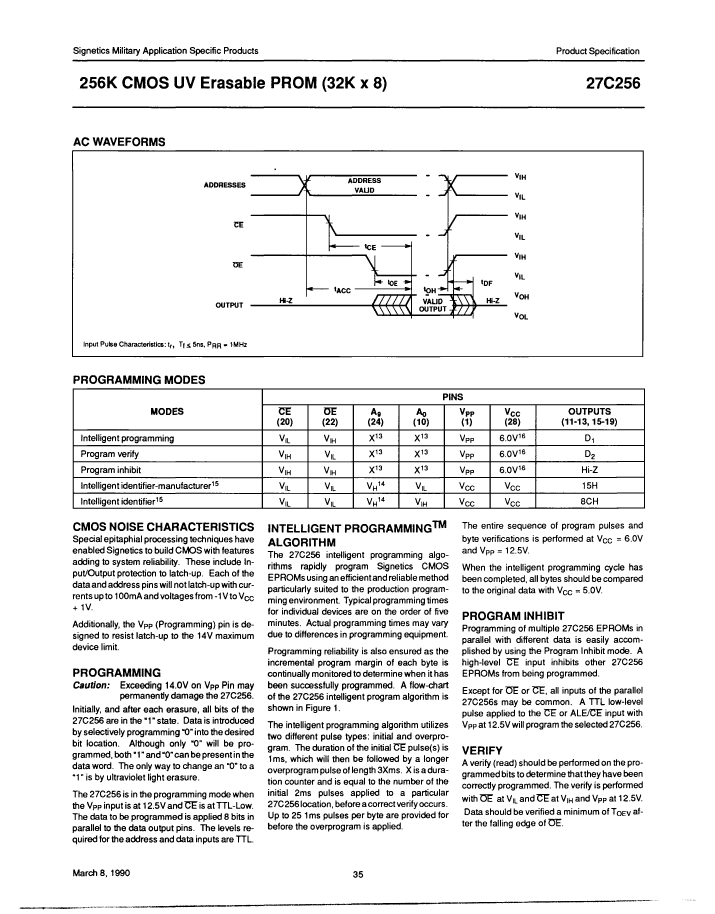

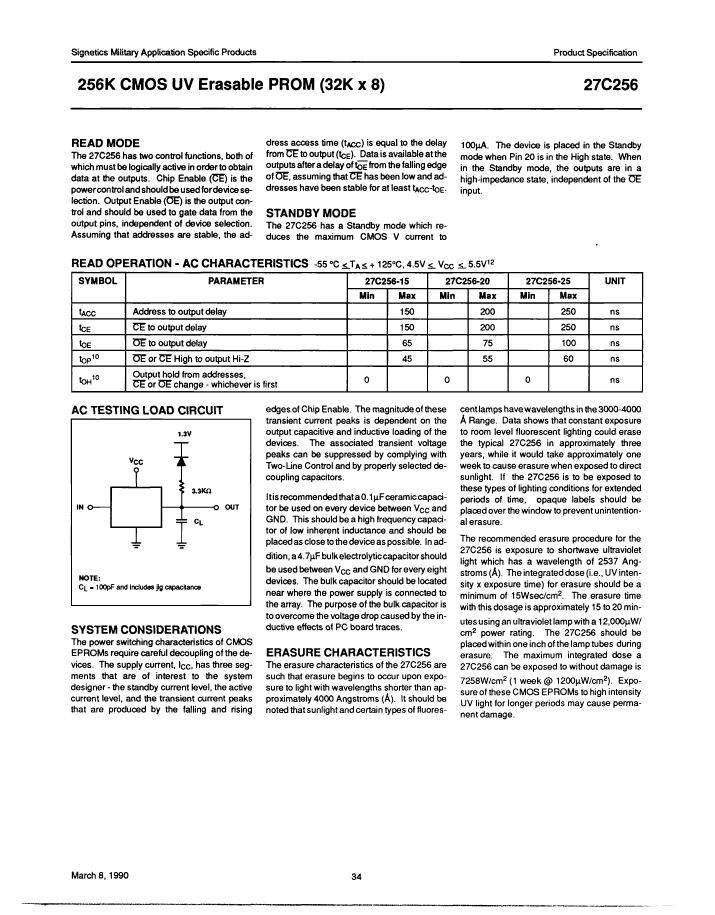

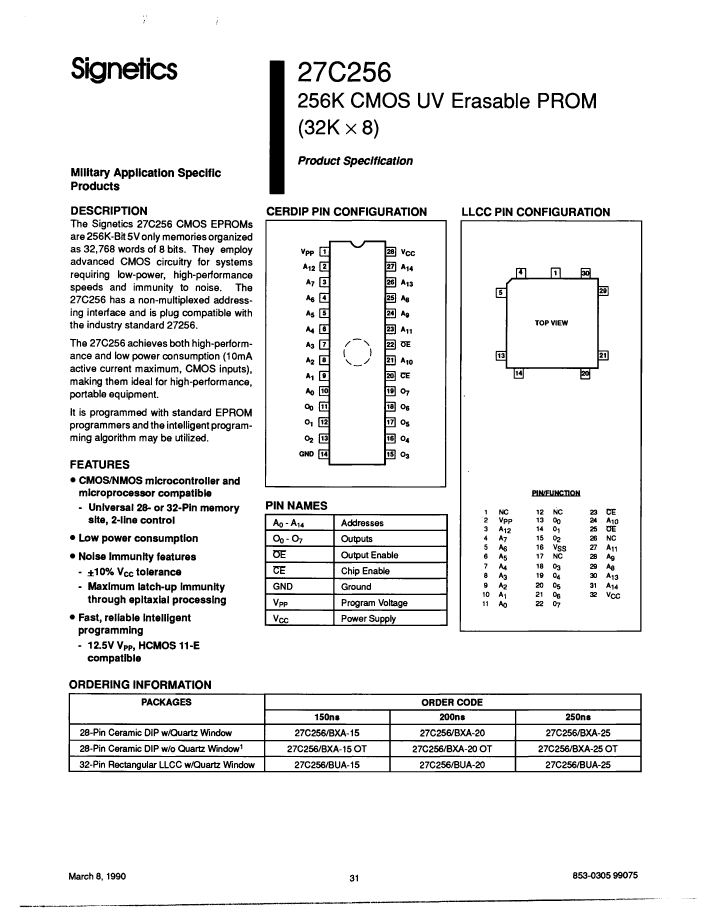

Preview

Download Datasheet

View All

27C256/BXA-25 Related Products

	27C256/BXA-25	27C256/BUA-25	27C256/BXA-20	27C256/BXA-20OT	27C256/BUA-15	27C256/BXA-15OT	27C256/BXA-15
Description	UVPROM, 32KX8, 250ns, CMOS, CDIP28	UVPROM, 32KX8, 250ns, CMOS, CQCC32	UVPROM, 32KX8, 200ns, CMOS, CDIP28	OTP ROM, 32KX8, 200ns, CMOS, CDIP28	UVPROM, 32KX8, 150ns, CMOS, CQCC32	OTP ROM, 32KX8, 150ns, CMOS, CDIP28	UVPROM, 32KX8, 150ns, CMOS, CDIP28
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	250 ns	250 ns	200 ns	200 ns	150 ns	150 ns	150 ns
JESD-30 code	R-CDIP-T28	S-CQCC-N32	R-CDIP-T28	R-CDIP-T28	S-CQCC-N32	R-CDIP-T28	R-CDIP-T28
memory density	262144 bi	262144 bi	262144 bi	262144 bi	262144 bi	262144 bi	262144 bit
Memory IC Type	UVPROM	UVPROM	UVPROM	OTP ROM	UVPROM	OTP ROM	UVPROM
memory width	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	28	32	28	28	32	28	28
word count	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000	32000	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1
