BT467KHF220 datasheet, PDF - EEWORLD Datasheet

BT467KHF220: DescriptionPalette DAC, 1600 X 1280 Pixels, CMOS, PQFP160; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，42 Pages; ManufacturerCONEXANT; Websitehttp://www.conexant.com/

Download Datasheet Parametric Compare View All

BT467KHF220 Overview

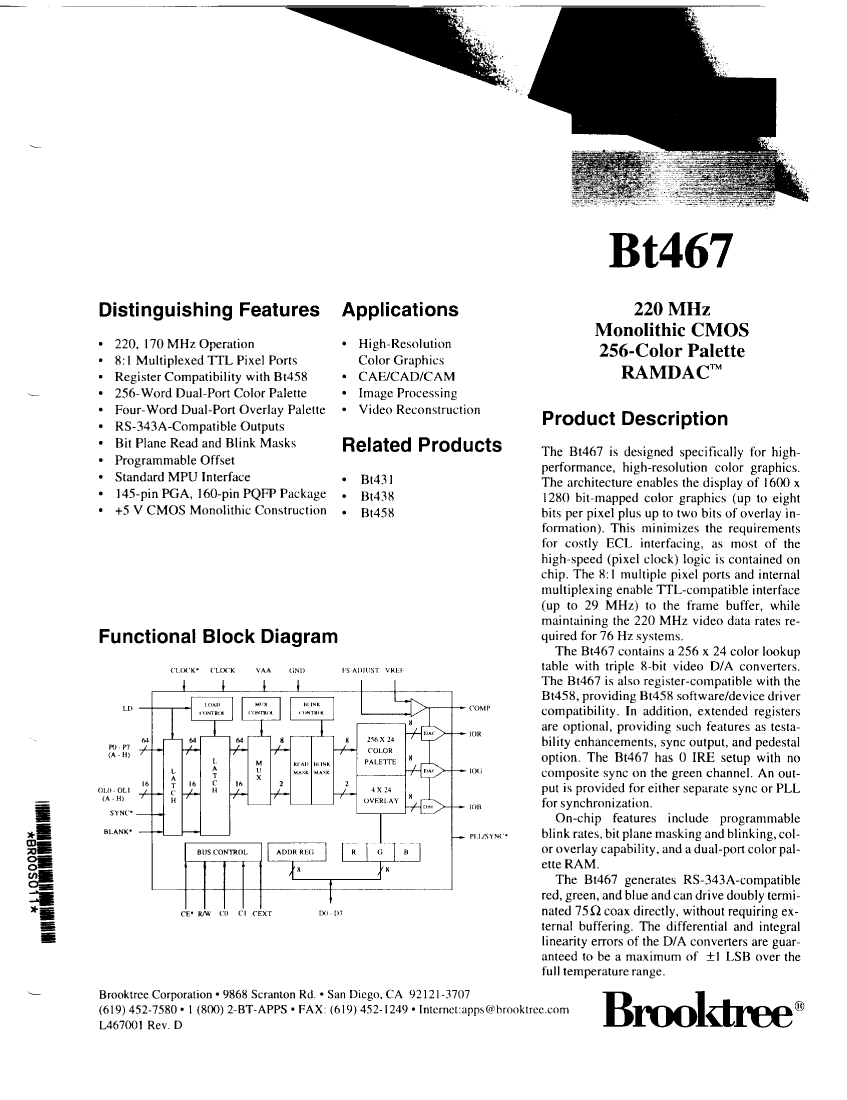

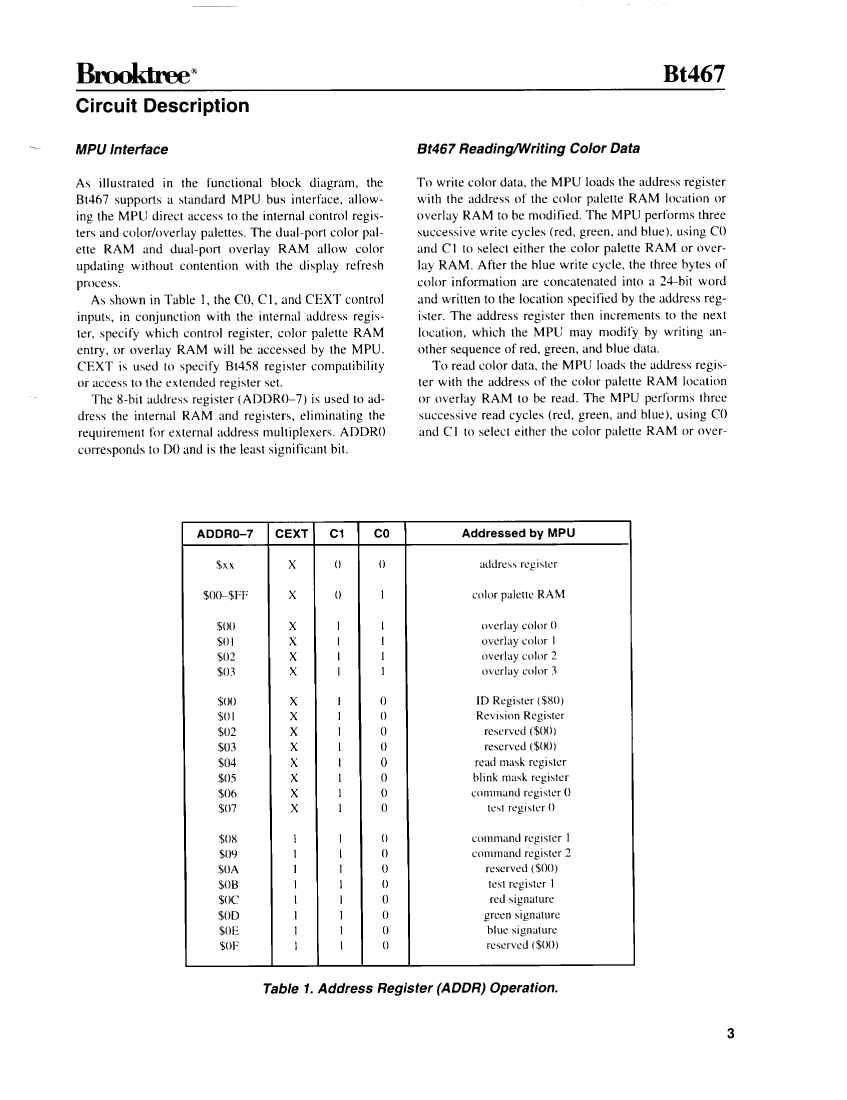

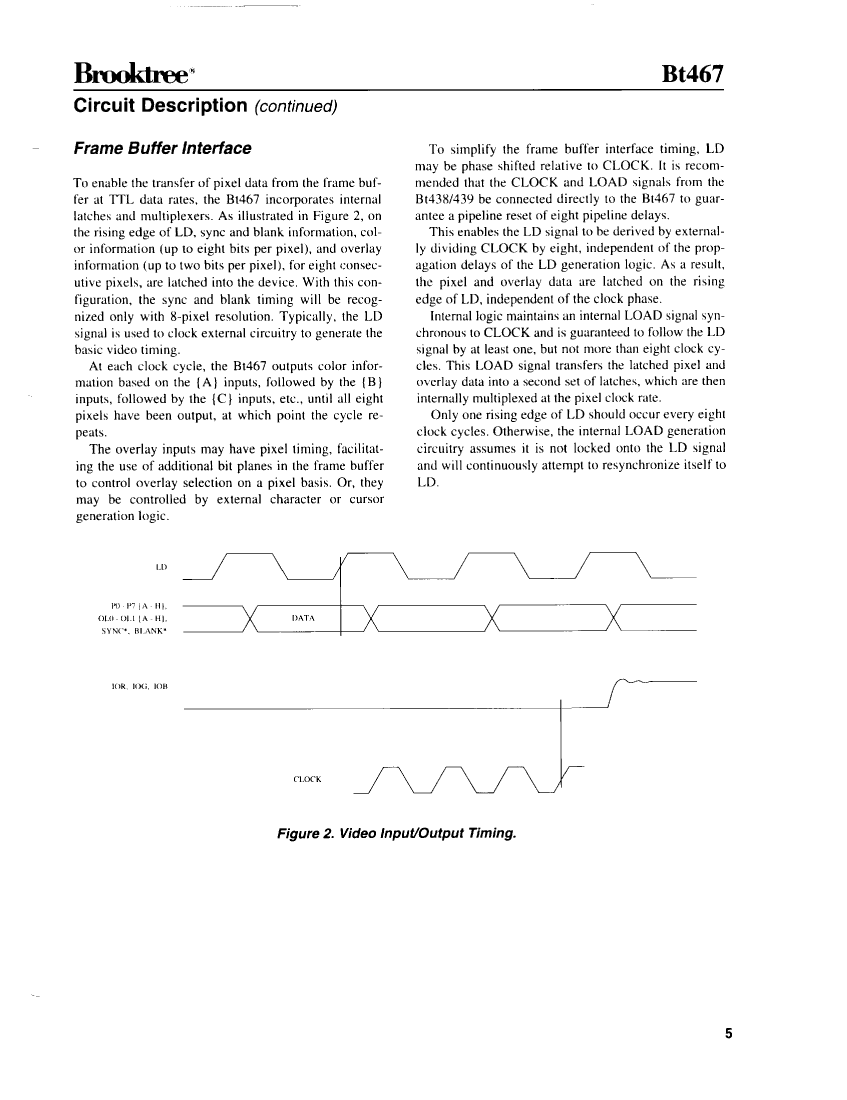

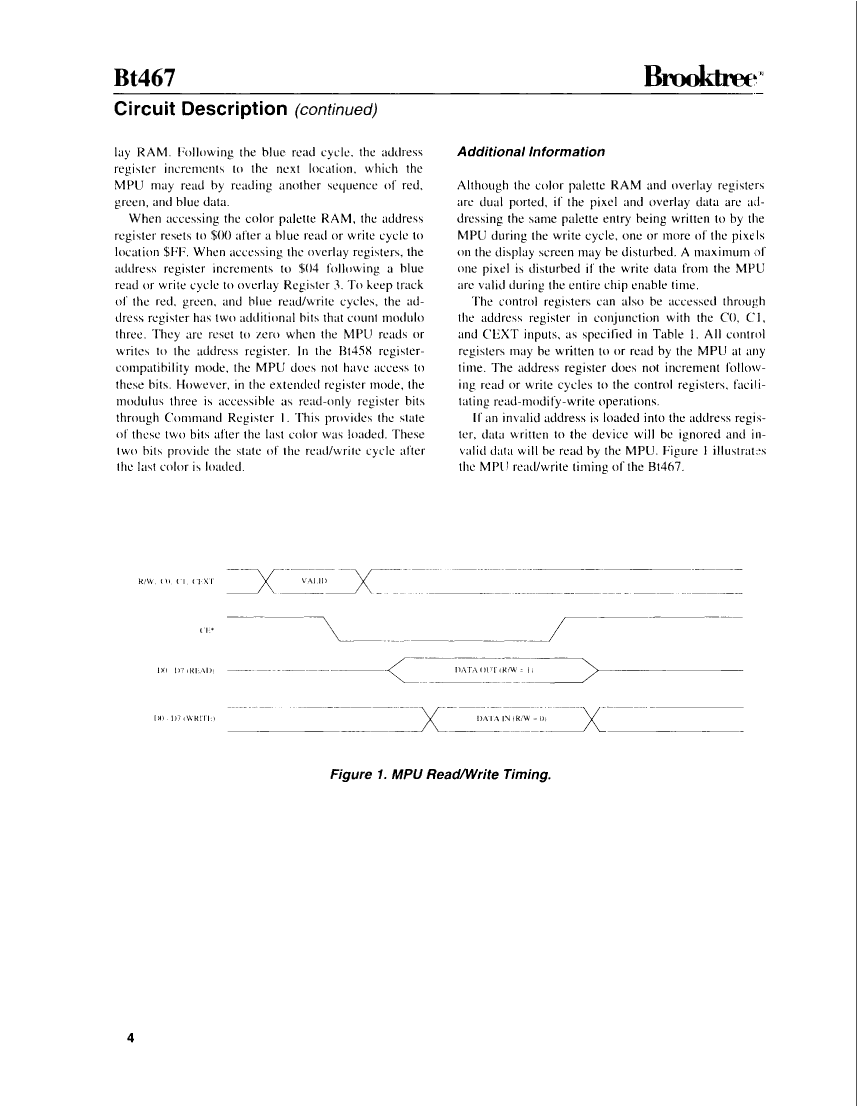

Palette DAC, 1600 X 1280 Pixels, CMOS, PQFP160

Parameter Name	Attribute value
Maker	CONEXANT
package instruction	,
Reach Compliance Code	unknown
Address bus width	2
show configuration	1600 X 1280 PIXELS
External data bus width	8
JESD-30 code	S-PQFP-G160
Number of terminals	160
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum slew rate	450 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, PALETTE DAC

	BT467KHF220	BT467KG220
Description	Palette DAC, 1600 X 1280 Pixels, CMOS, PQFP160	Palette DAC, 1600 X 1280 Pixels, CMOS, CPGA145
Maker	CONEXANT	CONEXANT
Reach Compliance Code	unknown	unknown
Address bus width	2	2
show configuration	1600 X 1280 PIXELS	1600 X 1280 PIXELS
External data bus width	8	8
JESD-30 code	S-PQFP-G160	S-CPGA-P145
Number of terminals	160	145
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE
Package form	FLATPACK	GRID ARRAY
Certification status	Not Qualified	Not Qualified
Maximum slew rate	450 mA	450 mA
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	PIN/PEG
Terminal location	QUAD	PERPENDICULAR
uPs/uCs/peripheral integrated circuit type	DISPLAY CONTROLLER, PALETTE DAC	DISPLAY CONTROLLER, PALETTE DAC
