LG3380-K Overview

Visible LED, Diffused

LG3380-K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
Reach Compliance Code	unknown
color@wavelength	Yellow
Maximum forward current	0.04 A
Maximum forward voltage	2.6 V
JESD-609 code	e0
Lens type	DIFFUSED
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
total height	4.4 mm
peak wavelength	565 nm
Maximum reverse voltage	5 V
Terminal surface	Tin/Lead (Sn/Pb)
perspective	100 deg

Preview

Download Datasheet

View All

3 mm (T1) LED, Diffused

Wide-Angle LED

LS 3380, LY 3380, LG 3380

Besondere Merkmale

•

Gehäusetyp:

eingefärbtes, diffuses

3 mm (T1) Gehäuse

•

Besonderheit des Bauteils:

Lötspieße

mit Aufsetzebene

•

Wellenlänge:

628 nm (super-rot),

590 nm (gelb), 570 nm (grün)

•

Abstrahlwinkel:

100°

•

Technologie:

GaAlP

•

optischer Wirkungsgrad:

1,5 lm/W (super-rot, gelb), 2,5 lm/W (grün)

•

Gruppierungsparameter:

Lichtstärke

•

Lötmethode:

Wellenlöten (TTW)

•

Verpackung:

Schüttgut, gegurtet lieferbar

Anwendungen

• optischer Indikator

• Hinterleuchtung (LCD, Handy, Schalter,

Tasten, Displays, Werbebeleuchtung,

Allgemeinbeleuchtung)

• Innenbeleuchtung im Automobilbereich (z.B.

Instrumentenbeleuchtung, u.ä.)

• Markierungsbeleuchtung (z.B. Stufen,

Fluchtwege, u.ä.)

Features

•

package:

colored, diffused

3 mm (T1) package

•

feature of the device:

solder leads

with stand-off

•

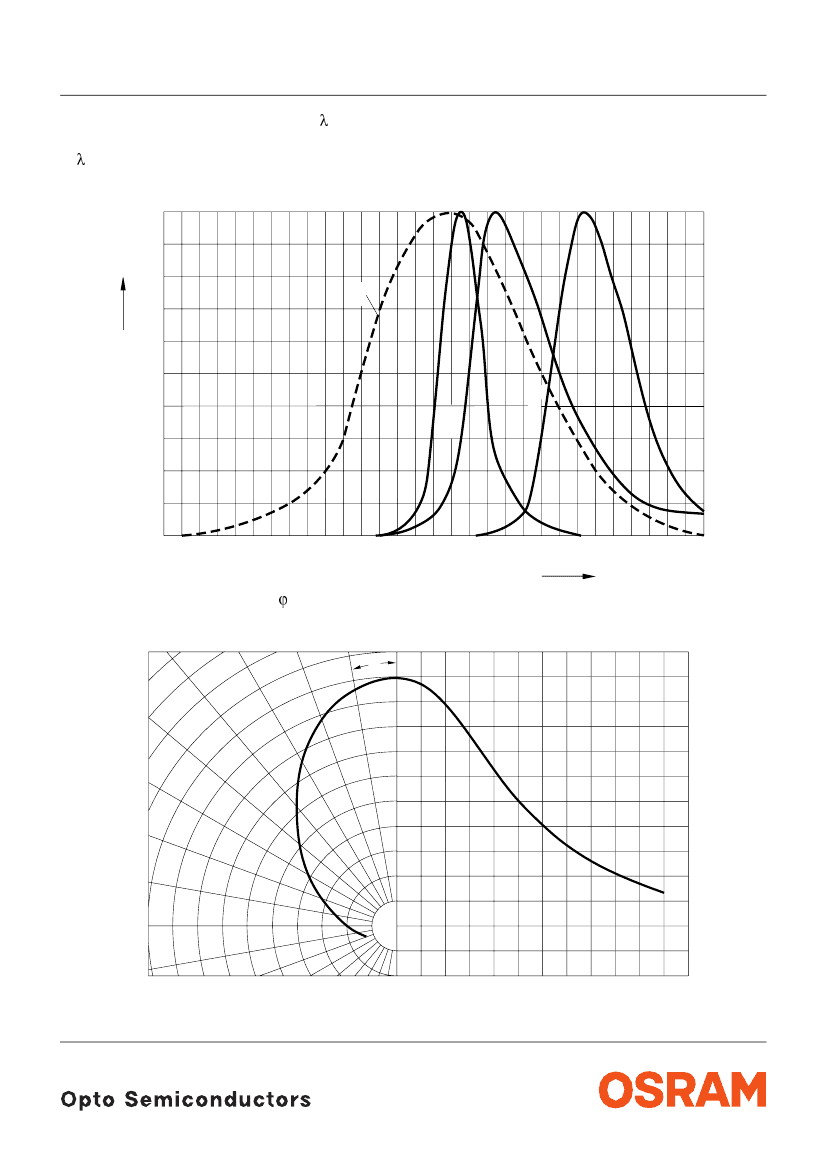

wavelength:

628 nm (super-red),

590 nm (yellow), 570 nm (green)

•

viewing angle:

100°

•

technology:

GaAlP

•

optical efficiency:

1.5 lm/W (super-red,

yellow), 2.5 lm/W (green)

•

grouping parameter:

luminous intensity

•

soldering methods:

TTW soldering

•

packing:

bulk, available taped on reel

Applications

• optical indicators

• backlighting (LCD, cellular phones, switches,

keys, displays, illuminated advertising, general

lighting)

• interior automotive lighting (e.g. dashboard

backlighting, etc.)

• marker lights (e.g. steps, exit ways, etc.)

2000-03-01
