M83723/95R2039Y: DescriptionMIL Series Connector, 39 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug; CategoryThe connector The connector; File Size249KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

M83723/95R2039Y Overview

MIL Series Connector, 39 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug

M83723/95R2039Y Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-83723, COMPATIBLE CONTACTS: M39029/5-115; M39029/5-116
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	M83723
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	20
Termination type	CRIMP
Total number of contacts	39

Preview

Download Datasheet

View All

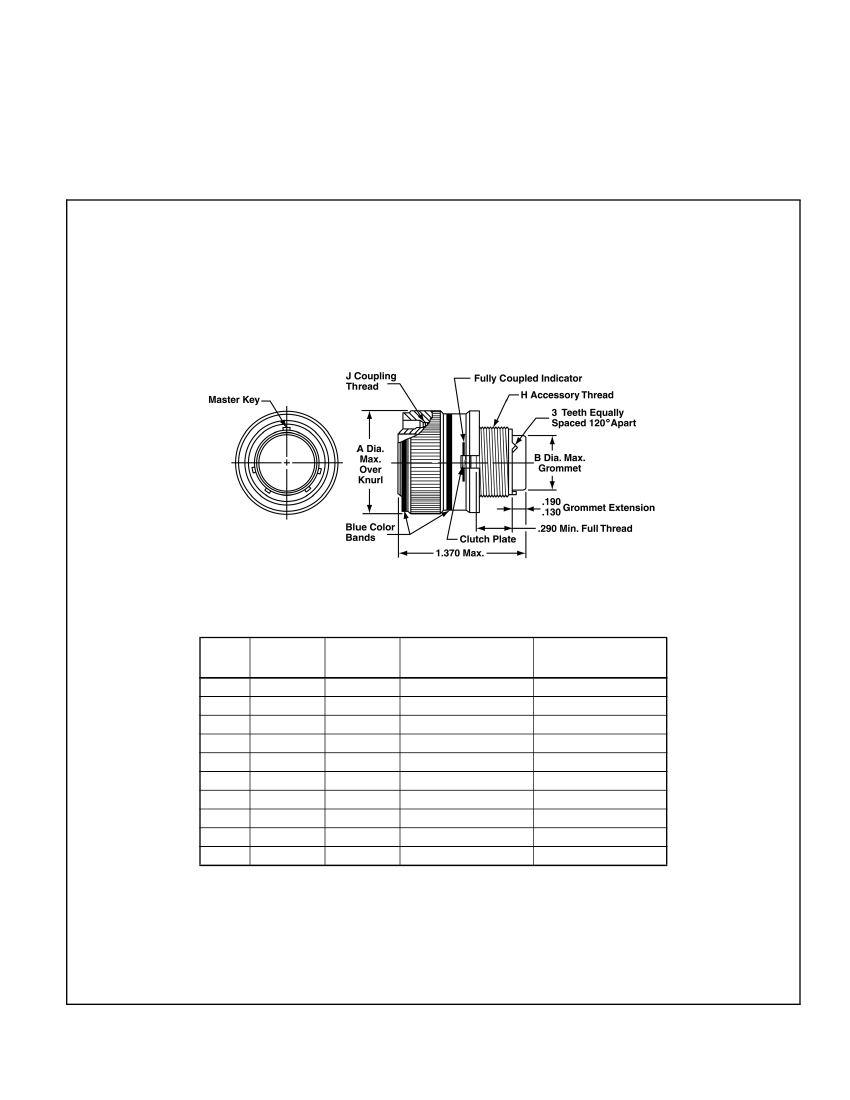

Miniature Cylindrical MIL-C-83723, Series III

Threaded Coupling

M83723/95 & 96

straight plug, self-locking

Plug Shell, with Self-Locking Clutch Plate,

Threaded Coupling

Military No. M83723/95 with socket contacts

M83723/96 with pin contacts

Amphenol/Matrix No. MT37

To complete order number see how to order, page 15.

H

Accessory Thread

Class 2A

J

Coupling Thread

Class 2B

Shell

Size

A Dia.

Max.

B Dia.

Max.

8

10

12

14

16

18

20

22

24

28*

.832

.959

1.097

1.236

1.360

1.428

1.586

1.703

1.846

2.165

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

1.465

.5000-20 UNEF

.6250-24 UNEF

.7500-20 UNEF

.8750-20 UNEF

1.0000-20 UNEF

1.0625-18 UNEF

1.1875-18 UNEF

1.3125-18 UNEF

1.4375-18 UNEF

1.7500-18 UNS

.5625-24 UNEF

.6875-24 UNEF

.8750-20 UNEF

.9375-20 UNEF

1.0625-18 UNEF

1.1875-18 UNEF

1.3125-18 UNEF

1.4375-18 UNEF

1.5625-18 UNEF

1.8125-18 UN

* Shell size 28 is not a MS connector; order by proprietary part number.
