MC68HC705E6VFB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MC68HC705E6VFB

MC68HC705E6VFB: DescriptionIC,MICROCONTROLLER,8-BIT,6805 CPU,CMOS,QFP,44PIN,PLASTIC; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，140 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC68HC705E6VFB Overview

IC,MICROCONTROLLER,8-BIT,6805 CPU,CMOS,QFP,44PIN,PLASTIC

MC68HC705E6VFB Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	QFP
package instruction	QFP,
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
Has ADC	YES
Other features	OPERATES AT 3.3V SUPPLY @ 1.05MHZ
Address bus width
bit size	8
maximum clock frequency	4.2 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G44
length	10 mm
Number of I/O lines	36
Number of terminals	44
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
ROM programmability	OTPROM
Maximum seat height	2.45 mm
speed	2.1 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	HCMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

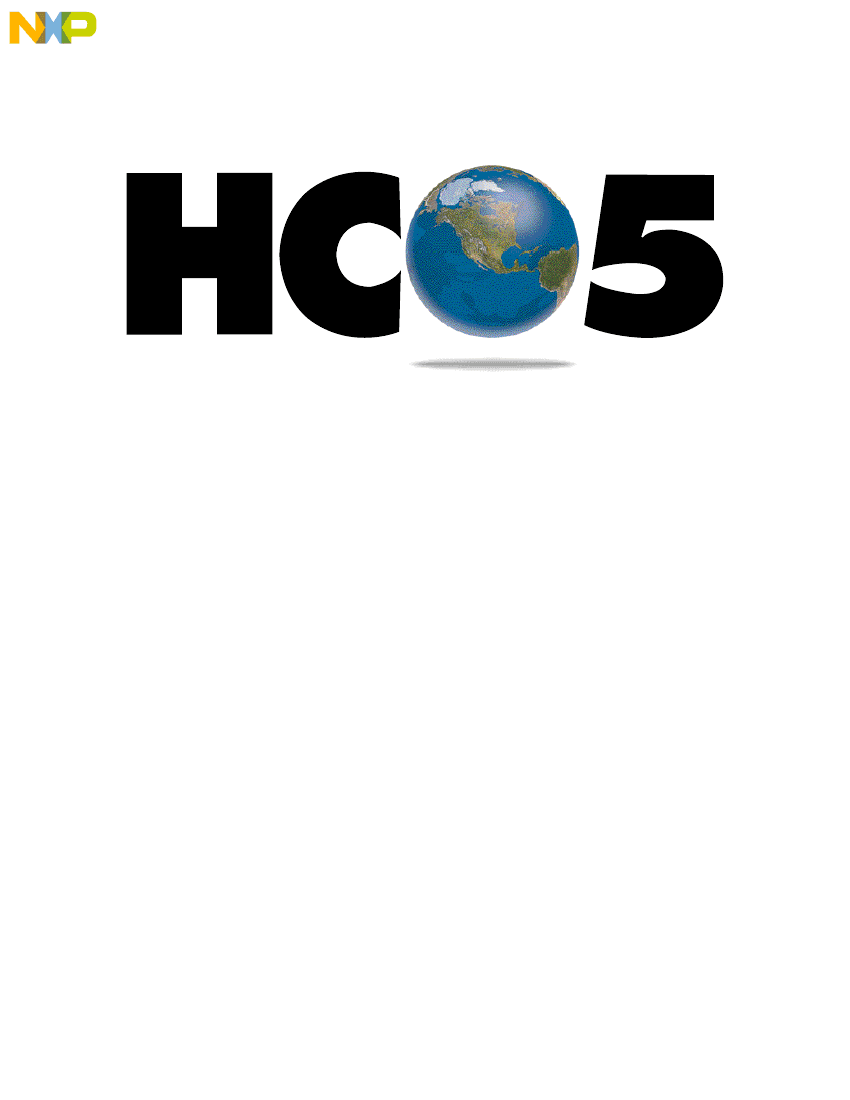

Freescale Semiconductor, Inc.

MC68HC05E6/D

Freescale Semiconductor, Inc...

MC68HC05E6

MC68HC705E6

Rev. 1.0

HCMOS Microcontroller Unit

TECHNICAL DATA

For More Information On This Product,

Go to: www.freescale.com

Freescale Semiconductor, Inc.

Table of Contents

General Description

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Mask options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Modes of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Pin descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Low power modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Bootloader ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

ROM (MC68HC05E6 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

EPROM (MC68HC705E6 only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

EEPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Input/output programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Port A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Port B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Port C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Port D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Port G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Port registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Freescale Semiconductor, Inc...

Modes of Operation

and Pin

Descriptions

Memory and

Registers

Input/Output Ports

MC68HC05E6 — Rev. 1.0

Table of Contents

For More Information On This Product,

Go to: www.freescale.com

MC68HC705E6VFB Related Products

	MC68HC705E6VFB	MC68HC05E6CDW	MC68HC705E6CDW	MC68HC705E6FB	MC68HC705E6DW	MC68HC705E6CFB	MC68HC705E6MDW	MC68HC05E6CFB	MC68HC05E6DW	MC68HC05E6FB
Description	IC,MICROCONTROLLER,8-BIT,6805 CPU,CMOS,QFP,44PIN,PLASTIC	8-BIT, MROM, 2.1MHz, MICROCONTROLLER, PDSO28, PLASTIC, SOIC-28	IC,MICROCONTROLLER,8-BIT,6805 CPU,CMOS,SOP,28PIN,PLASTIC	IC,MICROCONTROLLER,8-BIT,6805 CPU,CMOS,QFP,44PIN,PLASTIC	IC,MICROCONTROLLER,8-BIT,6805 CPU,CMOS,SOP,28PIN,PLASTIC	8-BIT, OTPROM, 2.1MHz, MICROCONTROLLER, PQFP44, PLASTIC, QFP-44	IC,MICROCONTROLLER,8-BIT,6805 CPU,CMOS,SOP,28PIN,PLASTIC	8-BIT, MROM, 2.1MHz, MICROCONTROLLER, PQFP44, PLASTIC, QFP-44	8-BIT, MROM, 2.1MHz, MICROCONTROLLER, PDSO28, PLASTIC, SOIC-28	8-BIT, MROM, 2.1MHz, MICROCONTROLLER, PQFP44, PLASTIC, QFP-44
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP
Parts packaging code	QFP	SOIC	SOIC	QFP	SOIC	QFP	SOIC	QFP	SOIC	QFP
package instruction	QFP,	SOP,	SOP, SOP28,.4	QFP,	SOP,	QFP, QFP44,.5SQ,32	SOP,	QFP,	SOP,	QFP,
Contacts	44	28	28	44	28	44	28	44	28	44
Reach Compliance Code	unknown	unknown	not_compliant	unknown	unknown	not_compliant	unknown	unknown	unknown	unknown
Has ADC	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Other features	OPERATES AT 3.3V SUPPLY @ 1.05MHZ	OPERATES AT 3.3V SUPPLY @ 1.05MHZ	OPERATES AT 3.3V SUPPLY @ 1.05MHZ	OPERATES AT 3.3V SUPPLY @ 1.05MHZ	OPERATES AT 3.3V SUPPLY @ 1.05MHZ	OPERATES AT 3.3V SUPPLY @ 1.05MHZ	OPERATES AT 3.3V SUPPLY @ 1.05MHZ	OPERATES AT 3.3V SUPPLY @ 1.05MHZ	OPERATES AT 3.3V SUPPLY @ 1.05MHZ	OPERATES AT 3.3V SUPPLY @ 1.05MHZ
bit size	8	8	8	8	8	8	8	8	8	8
maximum clock frequency	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQFP-G44	R-PDSO-G28	R-PDSO-G28	S-PQFP-G44	R-PDSO-G28	S-PQFP-G44	R-PDSO-G28	S-PQFP-G44	R-PDSO-G28	S-PQFP-G44
length	10 mm	17.925 mm	17.925 mm	10 mm	17.925 mm	10 mm	17.925 mm	10 mm	17.925 mm	10 mm
Number of I/O lines	36	20	20	36	20	36	20	36	20	36
Number of terminals	44	28	28	44	28	44	28	44	28	44
Maximum operating temperature	105 °C	85 °C	85 °C	70 °C	70 °C	85 °C	125 °C	85 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-	-40 °C	-40 °C	-40 °C	-	-
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	SOP	SOP	QFP	SOP	QFP	SOP	QFP	SOP	QFP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	FLATPACK	SMALL OUTLINE	SMALL OUTLINE	FLATPACK	SMALL OUTLINE	FLATPACK	SMALL OUTLINE	FLATPACK	SMALL OUTLINE	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	OTPROM	MROM	OTPROM	OTPROM	OTPROM	OTPROM	OTPROM	MROM	MROM	MROM
Maximum seat height	2.45 mm	2.65 mm	2.65 mm	2.45 mm	2.65 mm	2.45 mm	2.65 mm	2.45 mm	2.65 mm	2.45 mm
speed	2.1 MHz	2.1 MHz	2.1 MHz	2.1 MHz	2.1 MHz	2.1 MHz	2.1 MHz	2.1 MHz	2.1 MHz	2.1 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	AUTOMOTIVE	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	1.27 mm	1.27 mm	0.8 mm	1.27 mm	0.8 mm	1.27 mm	0.8 mm	1.27 mm	0.8 mm
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	QUAD	DUAL	QUAD	DUAL	QUAD
width	10 mm	7.5 mm	7.5 mm	10 mm	7.5 mm	10 mm	7.5 mm	10 mm	7.5 mm	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
