FH12-14S-0.5SH(05) datasheet, PDF

Datasheet> All Categories > The connector> The connector> FH12-14S-0.5SH(05)

FH12-14S-0.5SH(05): DescriptionCard Edge Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Eject Lever, Brown Insulator; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

FH12-14S-0.5SH(05) Overview

Card Edge Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Eject Lever, Brown Insulator

FH12-14S-0.5SH(05) Parametric

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ZIF
body width	0.079 inch
subject depth	0.22 inch
body length	0.437 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	150VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	500000000 Ω
Insulator color	BROWN
insulator material	POLYPHENYLENE SULPHIDE
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	EJECT LEVER
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

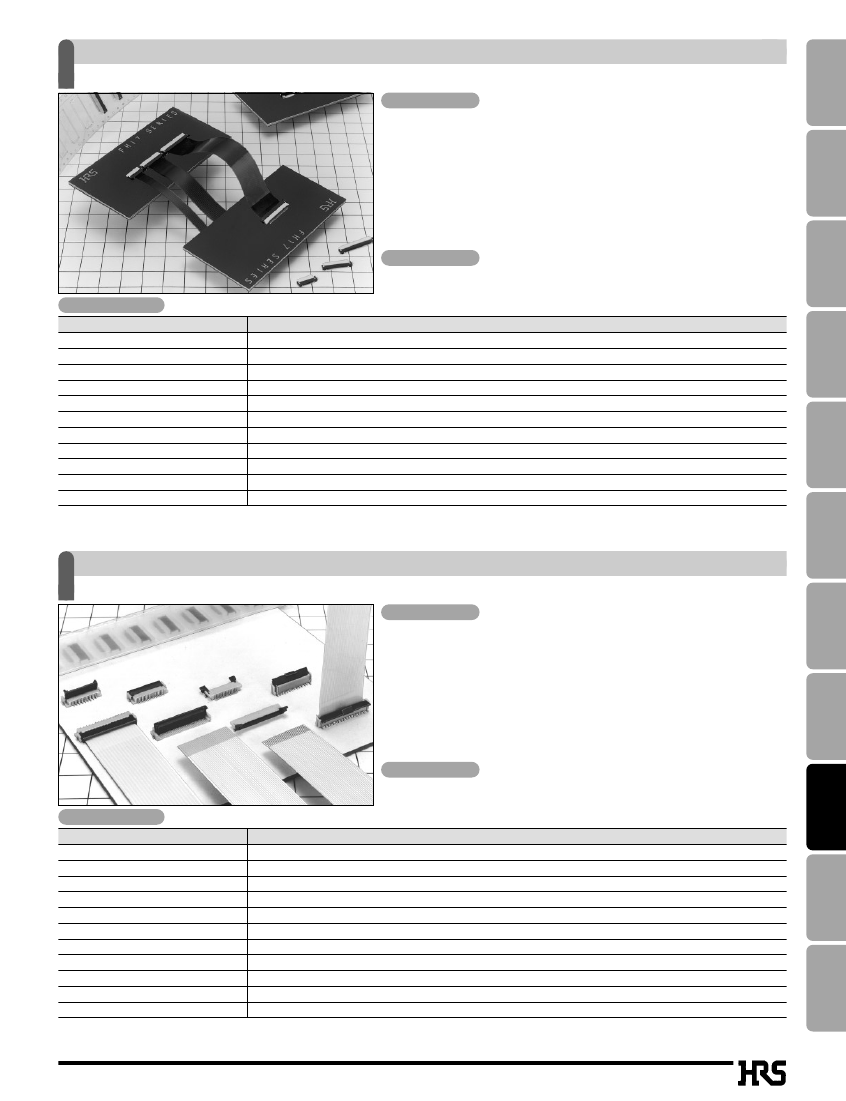

0.5mm pitch FPC connectors

FH17 Series

Features

Low profile 0.5mm pitch flexible printed circuit (FPC) connectors. An ultra

miniature version of the FH12 Series.

Only slight force is required to lock the flip-lock (one-touch rotating type)

zero insertion force (ZIF) structure.

PCB drop-in type as a variation is available.

Conforming to the thin type flexible printed circuit (FPC) now being used

for small size electronic devices such as cameras.

Embossed tape packaging allows automatic mounting.

Circular

Connectors

Rectangular

Connectors

Coaxial

Connectors

Applications

Mobile Phones, LCD-related applications, CD-ROM drives, Camera,

Compact equipment

Specifications

Memory Card

Item

No. of Positions

Current rating (A)

PCB Mount Type

Contact Plating

Terminal Pitch (mm)

Contact Pitch (mm)

Contact Layout

Operating Temperature Range (ç)

Insulator

Applicable FPC/FFC (mm)

Remarks

Requirements

8·10·15·20·24·30

0.4

SMT

Tin-lead

0.5

Single row

-40 to 70

LCP (UL94V-0, Color: Black, beige), PPS (UL94V-0, Color: Black)

0.17

FPC connector

Modular

Connectors

Card Edge

Connectors

0.5mm and 1mm pitch FPC/FFC connectors

FH12 Series

Features

Only slight force is required to lock the flip-lock (one-touch rotating type)

zero insertion force (ZIF) structure.

The locking mechanism clicks, thus making it possible to confirm flexible

printed circuit (FPC) and flexible flat cable (FFC) connections.

One-touch zero insertion force (ZIF) structure reduces working space, thus

making mounting possible in the center of the PCB.

Upper, lower, and vertical contact types for flexible printed circuit (FPC)

and flexible flat cable (FFC) connections are available.

Models of 1mm pitch type as well as 0.5mm pitch type are available.

Board-to-Board

Connectors

Board-to-Wire

Connectors

Applications

FPC/FFC

Connectors

LCDs, Mobile Phones, CD-ROM drives, Compact equipment

Specifications

Item

No. of Positions

Current rating (A)

PCB Mount Type

Contact Plating

Terminal Pitch (mm)

Contact Pitch (mm)

Contact Layout

Operating Temperature Range (ç)

Insulator

Applicable FPC/FFC (mm)

Remarks

Requirements

4·5·6·7·8·9·10·11·12·13·14·15·16·17·18·19·20·22·24·25·26·28·29·30·32·33·34·36·40·42·45·49·50·53

0.4

SMT

Gold, tin-lead

0.5·1·2

0.5,1

Single row

-40 to 70

Polyamide (UL94V-0, Color: Beige), PPS (UL94V-0, Color: Dark brown)

0.18·0.3

FPC/FFC connector

141

Optical Connectors

and Devices

Microwave

Components
