R142295162 datasheet, PDF - EEWORLD Datasheet

R142295162: DescriptionRF BNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric Compare View All

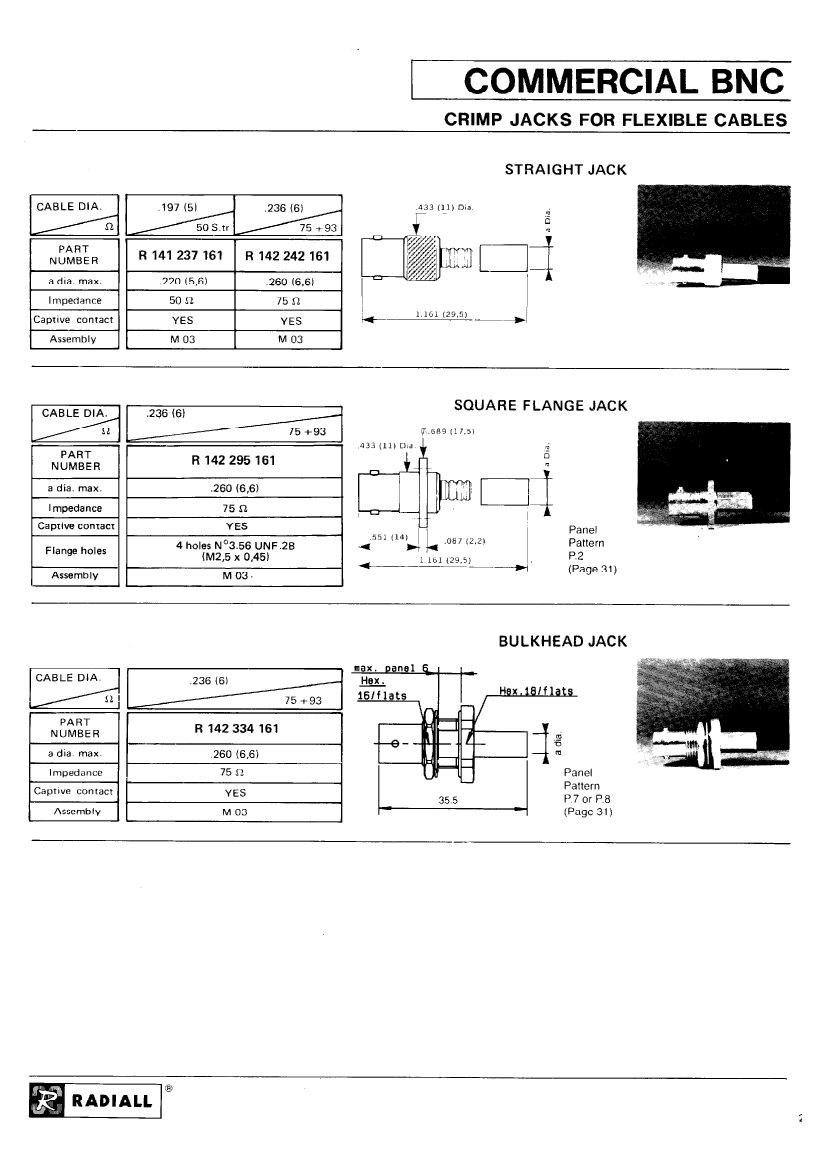

R142295162 Overview

RF BNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	CAPTIVE CONTACT
Body/casing type	JACK
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	BNC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	1.5 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
voltage standing wave ratio	1.05
Base Number Matches	1

	R142295162	R142242162	R142334162	R141237162
Description	RF BNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack	RF BNC Connector, Female, Cable Mount, Crimp Terminal, Jack	RF BNC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack	RF BNC Connector, Female, Cable Mount, Crimp Terminal, Jack
Reach Compliance Code	unknow	unknow	unknow	unknown
Other features	CAPTIVE CONTACT	CAPTIVE CONTACT	CAPTIVE CONTACT	CAPTIVE CONTACT
Body/casing type	JACK	JACK	JACK	JACK
Characteristic impedance	75 Ω	75 Ω	75 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	BNC	BNC	BNC	BNC
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	1.5 GHz	1.5 GHz	1.5 GHz	1.5 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	NO	YES	NO
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
voltage standing wave ratio	1.05	1.05	1.05	1.14
Base Number Matches	1	1	1	1
