MURS320
Technical Data
Data Sheet N0162 Rev. B
MURS320 ULTRAFAST RECTIFIERS
Features
Ultra-Fast Switching
High Current Capability
Low Reverse Leakage Current
High Surge Current Capability
Plastic Material has UL Flammability Classification 94V-O
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
SMC
Additional testing can be offered upon request

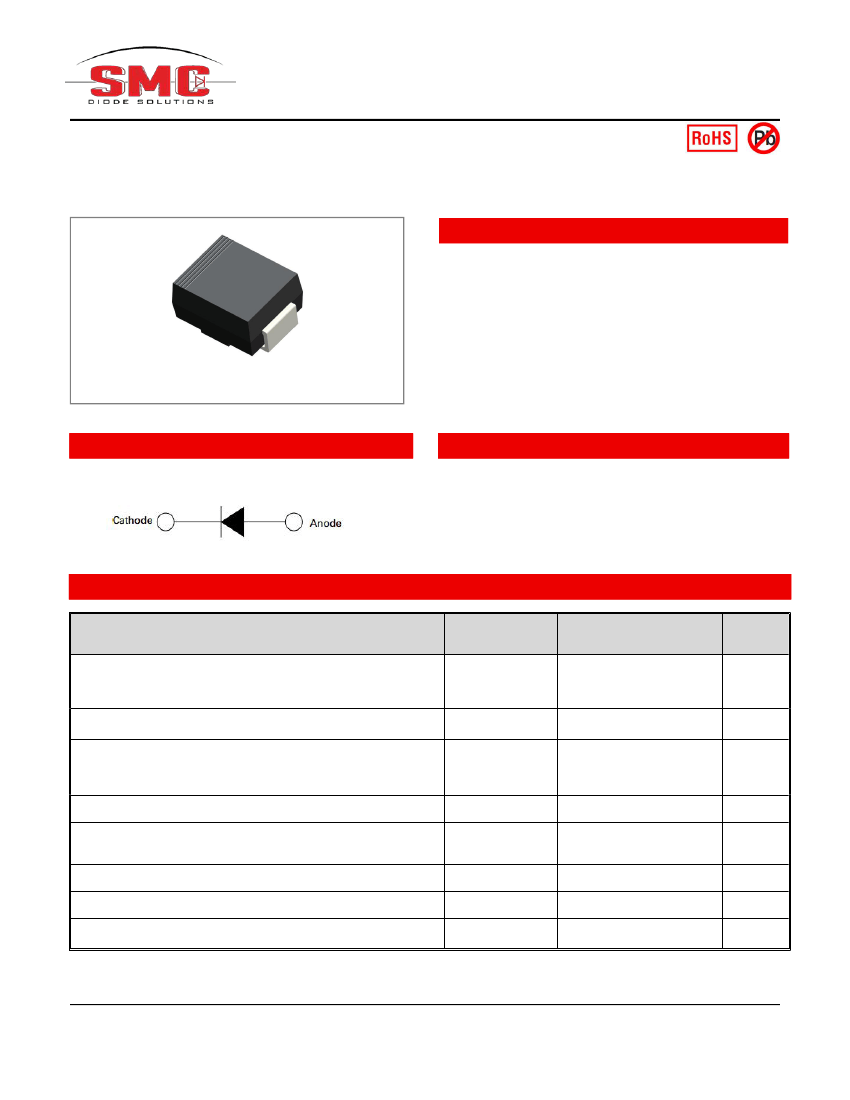

Circuit Diagram
Mechanical Data
Case: Low Profile Molded Plastic
Terminals: Solder Plated, Solderable per MIL-STD-750,
Method 2026
Polarity: Cathode Band or Cathode Notch
Weight: 0.23grams(approx)
Maximum Ratings and Electrical Characteristics
@T
A
=25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current
@T
L
= 145°C
Symbol
V
RRM
V
RWM
V
R
Io
I
FSM
V
FM1
I
R
R
θJA
Trr
T
J
, T
STG
MURS320
200
3.0
75
0.9
5.0
30
80
35
-65 to +175
Unit
V
A
A
V
µA
K/W
ns
°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
rated load (JEDEC Method)
Forward Voltage
Peak Reverse Current
At Rated DC Blocking Voltage
@I
F
= 3.0A, T
J
=25°C
@T
A
= 25°C
@T
A
= 100°C
Typical Thermal Resistance Junction to Ambient (Note 1)
Maximum Reverse Recovery Time (Note 2)
Operating and Storage Temperature Range
Note: 1. Mounted on P.C. Board with 14mm
2
(0.13mm thick) copper pad.
2. Measured with I
F
=0.5A; I
R
=1.0A; I
RR
=0.25A.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
MURS320
Technical Data
Data Sheet N0162 Rev. B
Ratings and Characteristics Curves

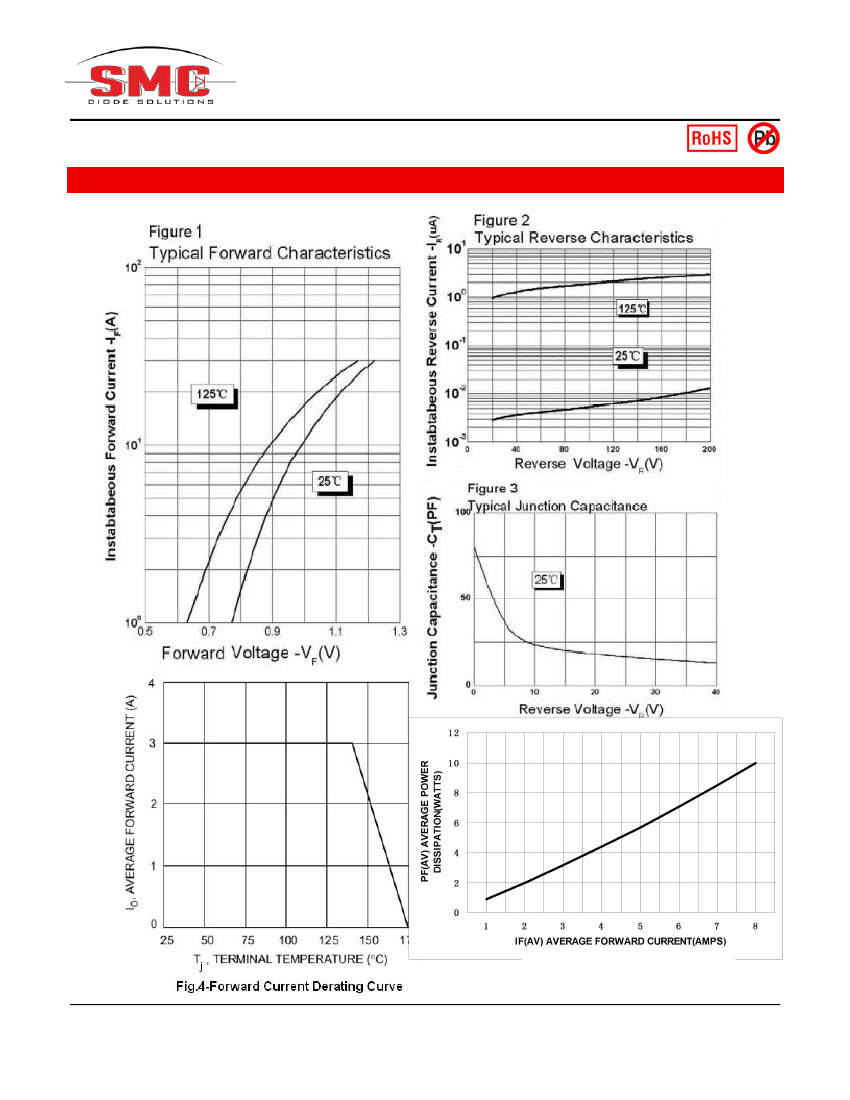

Fig.5- Power Dissipation
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
MURS320
Technical Data
Data Sheet N0162 Rev. B

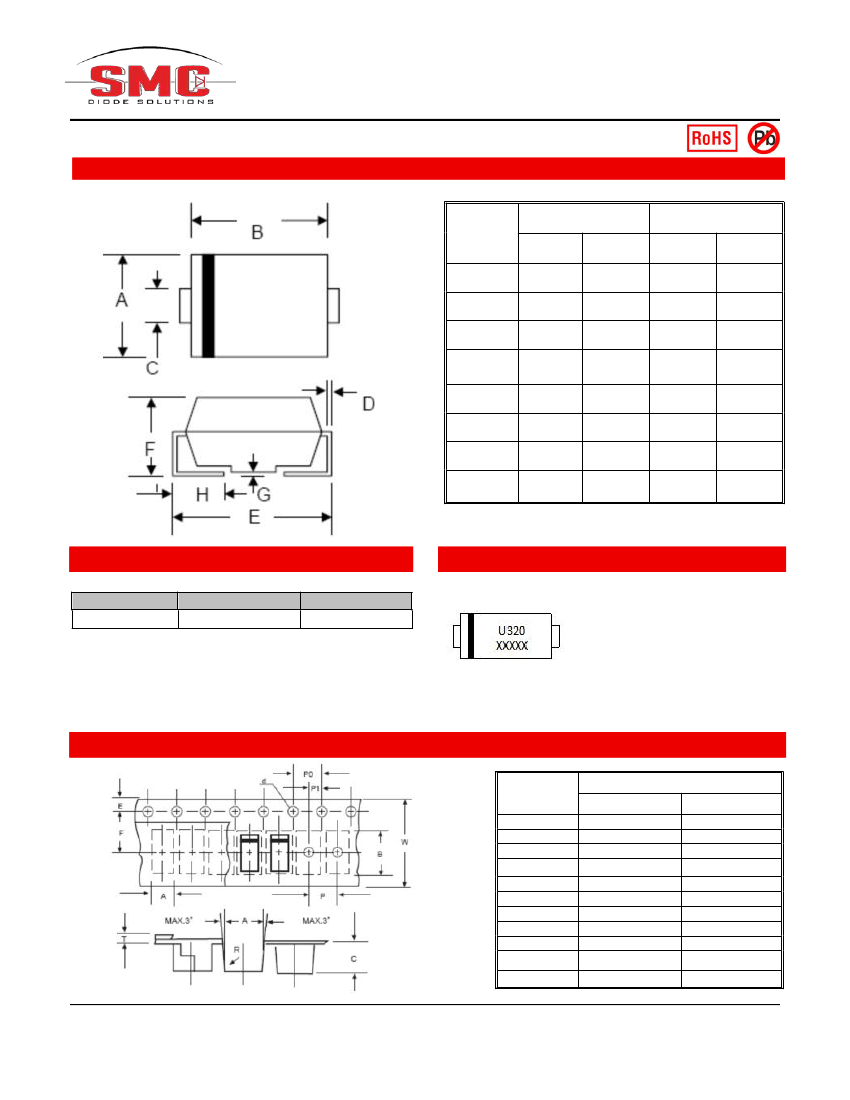

Mechanical Dimensions SMC
Millimeters
Min.
5.59
6.60
2.75
0.152
7.75
2.00
0.051
0.76
Max.
6.22
7.11
3.25
0.305
8.25
2.95
0.203
1.60
Inches
Min.
0.220
0.260
0.108
0.006
0.305
0.079
0.002
0.030
Max.
0.245
0.280
0.128
0.012
0.325
0.116
0.008
0.063
SYMBOL
A
B
C
D
E
F
G
H
Ordering Information
Device
MURS320
SMC (Pb-Free)
Marking Diagram
3000pcs / reel
Package
Shipping
Where XXXXX is YYWWL
U
3
20
YY
WW
L
= Device Type
= Forward Current (3A)
= Reverse Voltage (200V)
= Year
= Week
= Lot Number
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Cautions：Molding
resin
Epoxy resin UL:94V-0
Carrier Tape Specification SMC
SYMBOL
A
B
C
d
E
F
P
P0
P1
T
W
5.90
8.20
2.40
1.40
1.40
7.60
7.90
3.90
3.90
-
15.80
Millimeters
Min.
Max.
6.10
8.40
2.60
1.60
1.60
7.70
8.10
4.10
4.10
0.600
16.20
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
MURS320
Technical Data
Data Sheet N0162 Rev. B
