OM2940-12SMM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> OM2940-12SMM

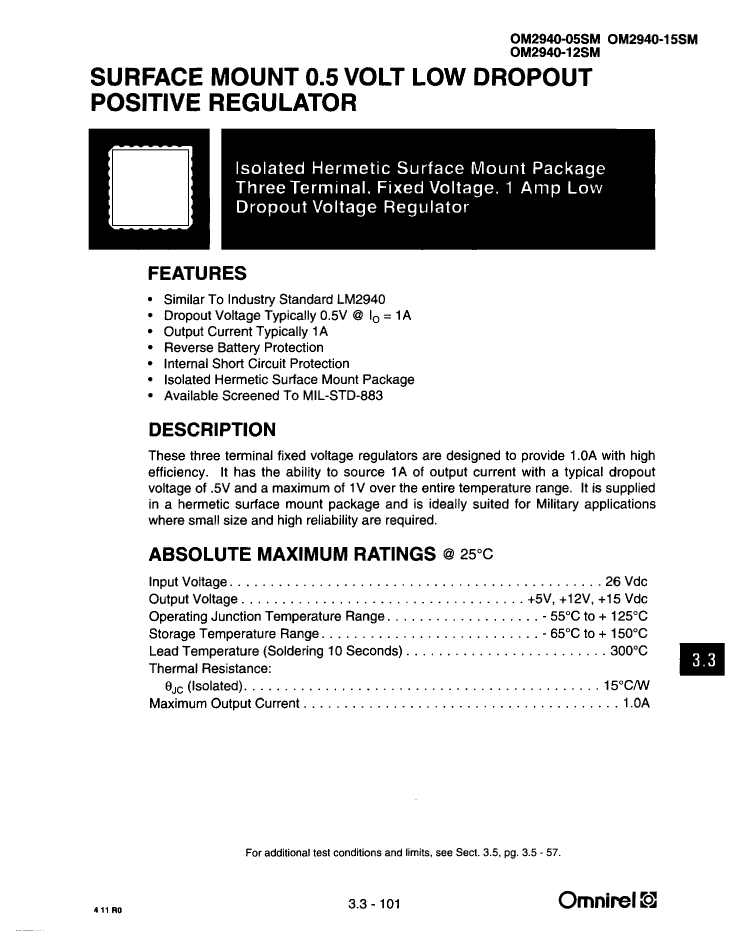

OM2940-12SMM: DescriptionFixed Positive LDO Regulator, 12V, 0.5V Dropout, CQCC28, HERMETIC SEALED PACKAGE-3; CategoryPower/power management The power supply circuit; File Size28KB，1 Pages; ManufacturerOmnirel Corp.

Download Datasheet Parametric Compare View All

OM2940-12SMM Overview

Fixed Positive LDO Regulator, 12V, 0.5V Dropout, CQCC28, HERMETIC SEALED PACKAGE-3

OM2940-12SMM Parametric

Parameter Name	Attribute value
Maker	Omnirel Corp.
package instruction	HERMETIC SEALED PACKAGE-3
Reach Compliance Code	unknown
Maximum drop-back voltage 1	0.5 V
JESD-30 code	S-CQCC-N28
Number of functions	1
Number of terminals	28
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-55 °C
Maximum output current 1	1 A
Nominal output voltage 1	12 V
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Filter level	MIL-STD-883
surface mount	YES
Terminal form	NO LEAD
Terminal location	QUAD

Preview

Download Datasheet

View All

OM2940-12SMM Related Products

	OM2940-12SMM	OM2940-05SMM	OM2940-05SMB	OM2940-12SMB	OM2940-15SMB	OM2940-15SMM
Description	Fixed Positive LDO Regulator, 12V, 0.5V Dropout, CQCC28, HERMETIC SEALED PACKAGE-3	Fixed Positive LDO Regulator, 5V, 0.5V Dropout, CQCC28, HERMETIC SEALED PACKAGE-3	Fixed Positive LDO Regulator, 5V, 1V Dropout, CQCC28, HERMETIC, SURFACE MOUNT	Fixed Positive LDO Regulator, 12V, 1V Dropout, CQCC28, HERMETIC, SURFACE MOUNT	Fixed Positive LDO Regulator, 15V, 1V Dropout, CQCC28, HERMETIC, SURFACE MOUNT	Fixed Positive LDO Regulator, 15V, 0.5V Dropout, CQCC28, HERMETIC SEALED PACKAGE-3
package instruction	HERMETIC SEALED PACKAGE-3	HERMETIC SEALED PACKAGE-3	HERMETIC, SURFACE MOUNT	HERMETIC, SURFACE MOUNT	HERMETIC, SURFACE MOUNT	HERMETIC SEALED PACKAGE-3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum drop-back voltage 1	0.5 V	0.5 V	1 V	1 V	1 V	0.5 V
JESD-30 code	S-CQCC-N28	S-CQCC-N28	S-CQCC-N28	S-CQCC-N28	S-CQCC-N28	S-CQCC-N28
Number of functions	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Working temperature TJ-Min	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current 1	1 A	1 A	1 A	1 A	1 A	1 A
Nominal output voltage 1	12 V	5 V	5 V	12 V	15 V	15 V
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maker	Omnirel Corp.	-	-	Omnirel Corp.	Omnirel Corp.	Omnirel Corp.
