MCT2EV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MCT2EV

MCT2EV: Description1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, PLASTIC, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size269KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MCT2EV Overview

1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, PLASTIC, DIP-6

MCT2EV Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	PLASTIC, DIP-6
Reach Compliance Code	unknown
Other features	VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	30 V
Configuration	SINGLE
Nominal current transfer ratio	70%
Maximum dark power	50 nA
Maximum forward current	0.06 A
Maximum insulation voltage	7500 V
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER

Preview

Download Datasheet

View All

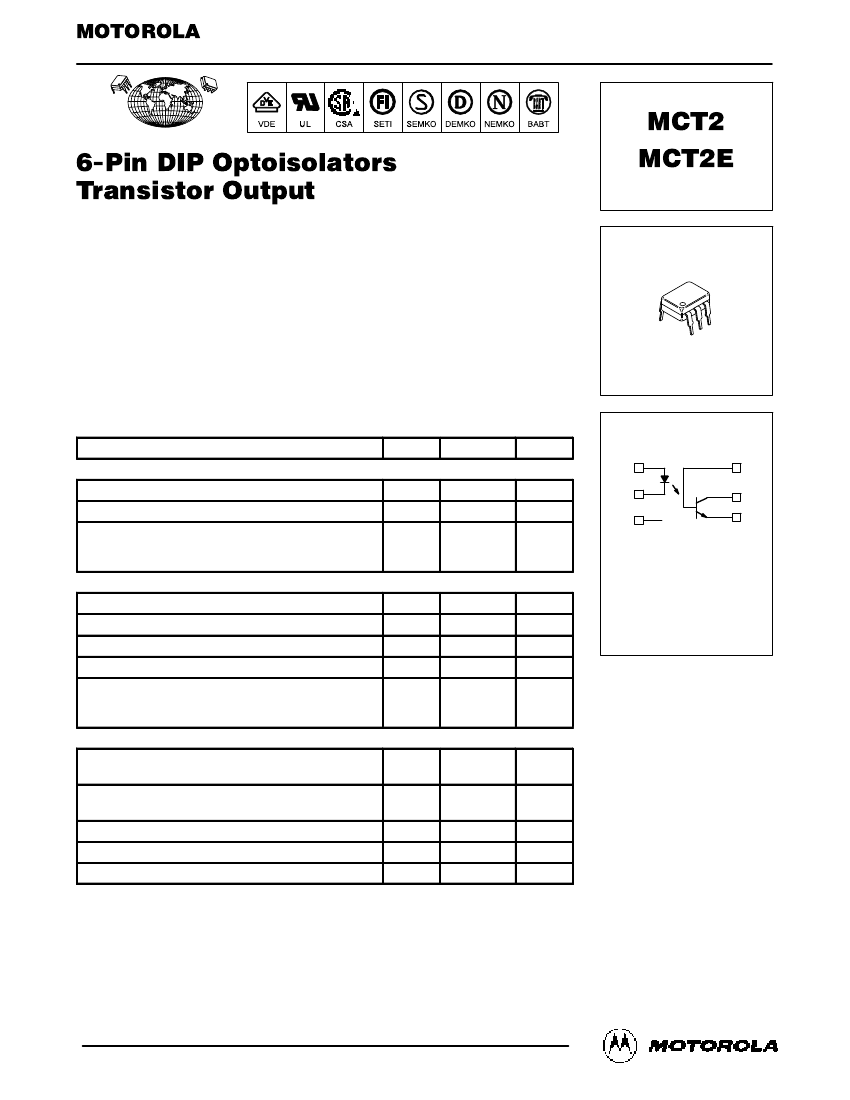

MOTOROLA

SEMICONDUCTOR TECHNICAL DATA

Order this document

by MCT2/D

GlobalOptoisolator™

6-Pin DIP Optoisolators

Transistor Output

The MCT and MCT2E devices consist of a gallium arsenide infrared emitting

diode optically coupled to a monolithic silicon phototransistor detector.

Applications

•

General Purpose Switching Circuits

•

Interfacing and coupling systems of different potentials and impedances

•

I/O Interfacing

•

Solid State Relays

•

Monitor and Detection Circuits

•

To order devices that are tested and marked per VDE 0884 requirements, the

suffix ”V” must be included at end of part number. VDE 0884 is a test option.

MAXIMUM RATINGS

(TA = 25°C unless otherwise noted)

Rating

INPUT LED

Reverse Voltage

Forward Current — Continuous

LED Power Dissipation @ TA = 25°C

with Negligible Power in Output Detector

Derate above 25°C

OUTPUT TRANSISTOR

Collector–Emitter Voltage

Emitter–Collector Voltage

Collector–Base Voltage

Collector Current — Continuous

Detector Power Dissipation @ TA = 25°C

with Negligible Power in Input LED

Derate above 25°C

TOTAL DEVICE

Isolation Surge Voltage(1)

(Peak ac Voltage, 60 Hz, 1 sec Duration)

Total Device Power Dissipation @ TA = 25°C

Derate above 25°C

Ambient Operating Temperature Range(2)

Storage Temperature Range(2)

Soldering Temperature (10 sec, 1/16″ from case)

VISO

Tstg

7500

250

2.94

– 55 to +100

– 55 to +150

260

Vac(pk)

mW/°C

°C

VCEO

VECO

VCBO

150

1.76

Volts

mW/°C

120

1.41

Volts

mW/°C

Symbol

Value

Unit

MCT2

MCT2E

[CTR = 20% Min]

STYLE 1 PLASTIC

STANDARD THRU HOLE

CASE 730A–04

SCHEMATIC

PIN 1.

LED ANODE

LED CATHODE

N.C.

EMITTER

COLLECTOR

BASE

1. Isolation surge voltage is an internal device dielectric breakdown rating.

For this test, Pins 1 and 2 are common, and Pins 4, 5 and 6 are common.

2. Refer to Quality and Reliability Section in Opto Data Book for information on test conditions.

GlobalOptoisolator is a trademark of Motorola, Inc.

REV 1

Motorola

Inc. 1995

Motorola,

Optoelectronics Device Data

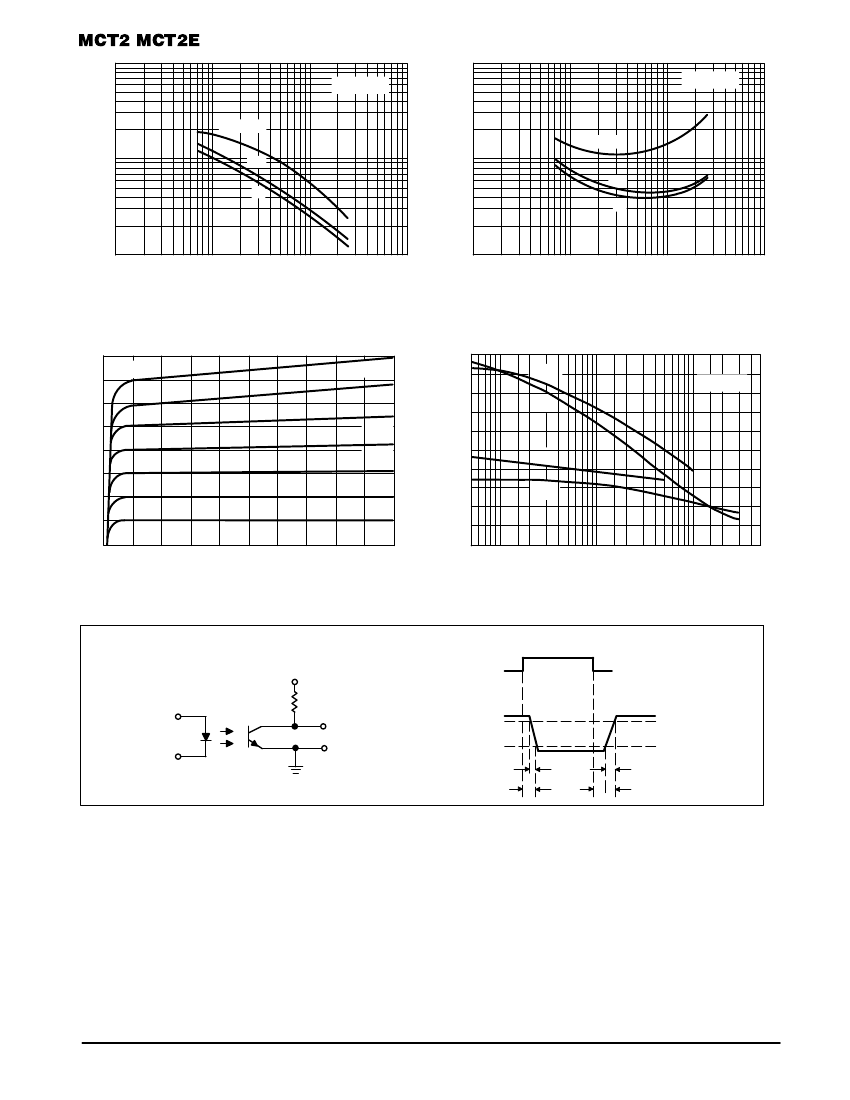

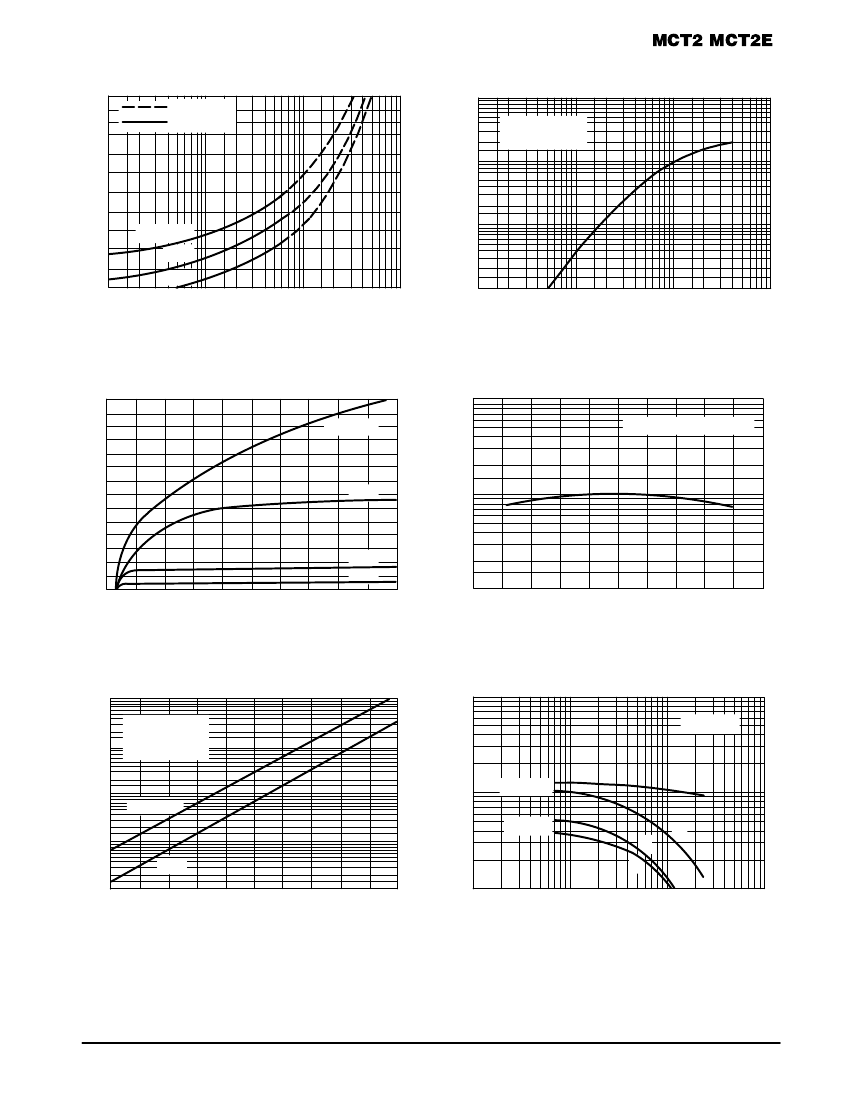

MCT2EV Related Products

	MCT2EV	MCT2E	MCT2ETV	MCT2V	MCT2TV	MCT2T	MCT2SV	MCT2S	MCT2ES
Description	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, PLASTIC, DIP-6	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, PLASTIC, DIP-6	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, PLASTIC, DIP-6	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, PLASTIC, DIP-6	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, PLASTIC, DIP-6	Transistor Output Optocoupler, 1-Element, 7500V Isolation, PLASTIC, DIP-6	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, CASE 730C-04, 6 PIN	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, CASE 730C-04, 6 PIN	1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, CASE 730C-04, 6 PIN
package instruction	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6	PLASTIC, DIP-6	CASE 730C-04, 6 PIN	CASE 730C-04, 6 PIN	CASE 730C-04, 6 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
Other features	VDE APPROVED	UL RECOGNIZED	VDE APPROVED	VDE APPROVED	VDE APPROVED	UL RECOGNIZED	VDE APPROVED	UL RECOGNIZED	UL RECOGNIZED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	70%	70%	70%	70%	70%	70%	70%	70%	70%
Maximum dark power	50 nA	50 nA	50 nA	50 nA	50 nA	50 nA	50 nA	50 nA	50 nA
Maximum forward current	0.06 A	0.06 A	0.06 A	0.06 A	0.06 A	0.06 A	0.06 A	0.06 A	0.06 A
Maximum insulation voltage	7500 V	7500 V	7500 V	7500 V	7500 V	7500 V	7500 V	7500 V	7500 V
Number of components	1	1	1	1	1	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Maker	Motorola ( NXP )	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Coll-Emtr Bkdn Voltage-Min	30 V	30 V	30 V	30 V	30 V	30 V	30 V	-	-
