LTC1753G datasheet, PDF - EEWORLD Datasheet

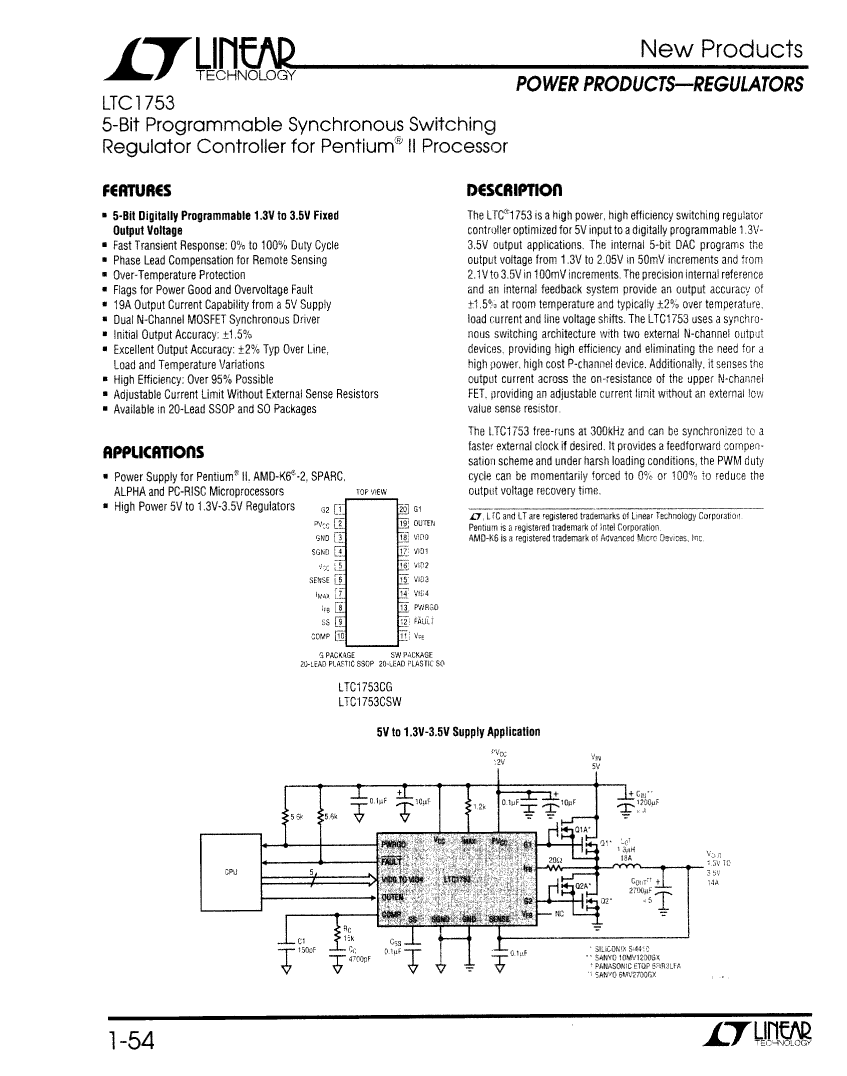

LTC1753G: DescriptionIC SWITCHING CONTROLLER, 300 kHz SWITCHING FREQ-MAX, PDSO20, PLASTIC, SSOP-20, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size88KB，1 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LTC1753G Overview

IC SWITCHING CONTROLLER, 300 kHz SWITCHING FREQ-MAX, PDSO20, PLASTIC, SSOP-20, Switching Regulator or Controller

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	SSOP
package instruction	PLASTIC, SSOP-20
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Nominal input voltage	5 V
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	7.2 mm
Number of functions	1
Number of terminals	20
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	2 mm
surface mount	YES
Switch configuration	PUSH-PULL
Maximum switching frequency	300 kHz
technology	CMOS
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	5.3 mm

	LTC1753G	LTC1753SW
Description	IC SWITCHING CONTROLLER, 300 kHz SWITCHING FREQ-MAX, PDSO20, PLASTIC, SSOP-20, Switching Regulator or Controller	IC SWITCHING CONTROLLER, 300 kHz SWITCHING FREQ-MAX, PDSO20, PLASTIC, SO-20, Switching Regulator or Controller
Is it Rohs certified?	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )
Parts packaging code	SSOP	SOIC
package instruction	PLASTIC, SSOP-20	PLASTIC, SO-20
Contacts	20	20
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER	SWITCHING CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Nominal input voltage	5 V	5 V
JESD-30 code	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e0	e0
length	7.2 mm	12.8 mm
Number of functions	1	1
Number of terminals	20	20
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	2 mm	2.65 mm
surface mount	YES	YES
Switch configuration	PUSH-PULL	PUSH-PULL
Maximum switching frequency	300 kHz	300 kHz
technology	CMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL
width	5.3 mm	7.5 mm
