MT28F800B3SG-11TET datasheet, PDF

Datasheet> All Categories > storage> storage> MT28F800B3SG-11TET

MT28F800B3SG-11TET: DescriptionFlash, 1MX8, 120ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44; Categorystorage storage; File Size97KB，4 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT28F800B3SG-11TET Overview

Flash, 1MX8, 120ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44

MT28F800B3SG-11TET Parametric

Parameter Name	Attribute value
Maker	Micron Technology
Parts packaging code	SOIC

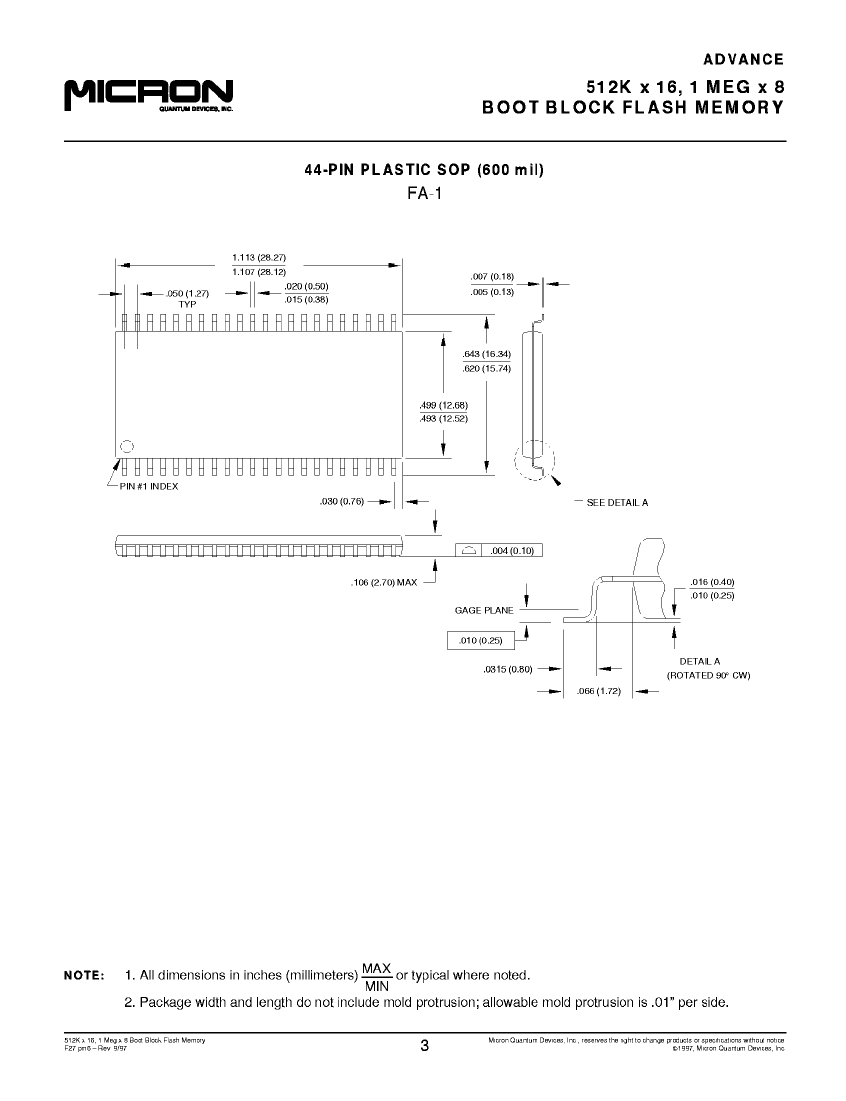

package instruction	0.600 INCH, PLASTIC, SOP-44
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	120 ns
Other features	USER CONFG AS 512K X 16; TOP BOOT BLOCK
startup block	TOP
JESD-30 code	R-PDSO-G44
length	28.195 mm
memory density	8388608 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	44
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	1MX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Programming voltage	2.7 V
Certification status	Not Qualified
Maximum seat height	2.7 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
type	NOR TYPE
width	12.6 mm

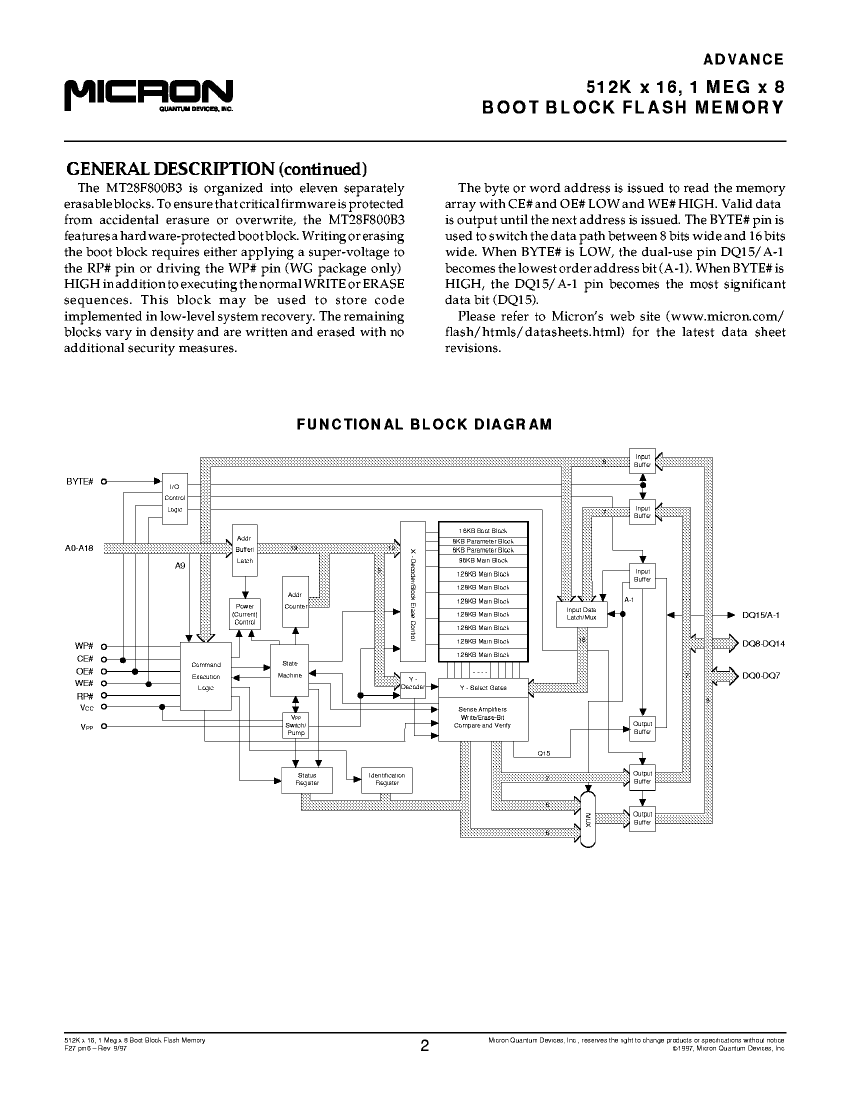

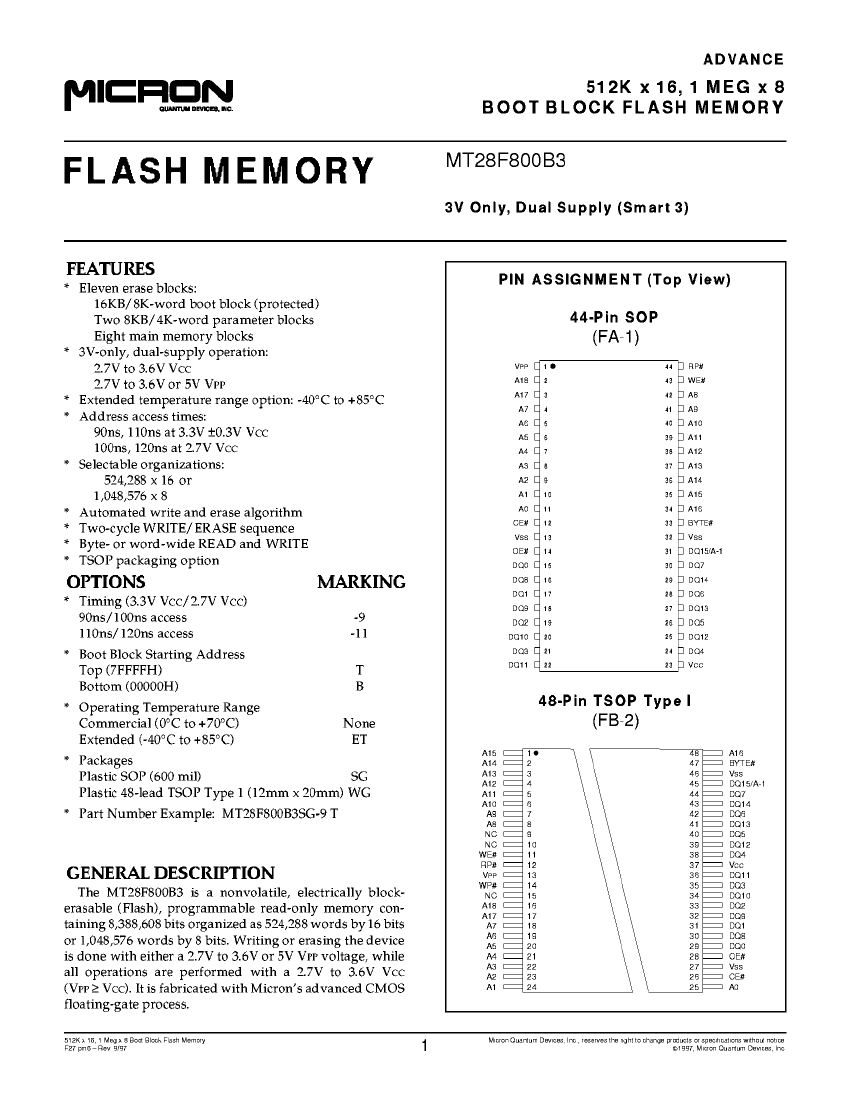

Preview

Download Datasheet

View All

MT28F800B3SG-11TET Related Products

	MT28F800B3SG-11TET	MT28F800B3SG-11BET	MT28F800B3SG-11B	MT28F800B3SG-11T	MT28F800B3WG-11TET	MT28F800B3WG-11T	MT28F800B3WG-11B	MT28F800B3WG-11BET
Description	Flash, 1MX8, 120ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44	Flash, 1MX8, 120ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44	Flash, 1MX8, 120ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44	Flash, 1MX8, 120ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44	Flash, 1MX8, 120ns, PDSO48, 12 X 20 MM, PLASTIC, TSOP1-48	Flash, 1MX8, 120ns, PDSO48, 12 X 20 MM, PLASTIC, TSOP1-48	Flash, 1MX8, 120ns, PDSO48, 12 X 20 MM, PLASTIC, TSOP1-48	Flash, 1MX8, 120ns, PDSO48, 12 X 20 MM, PLASTIC, TSOP1-48
Parts packaging code	SOIC	SOIC	SOIC	SOIC	TSOP1	TSOP1	TSOP1	TSOP1

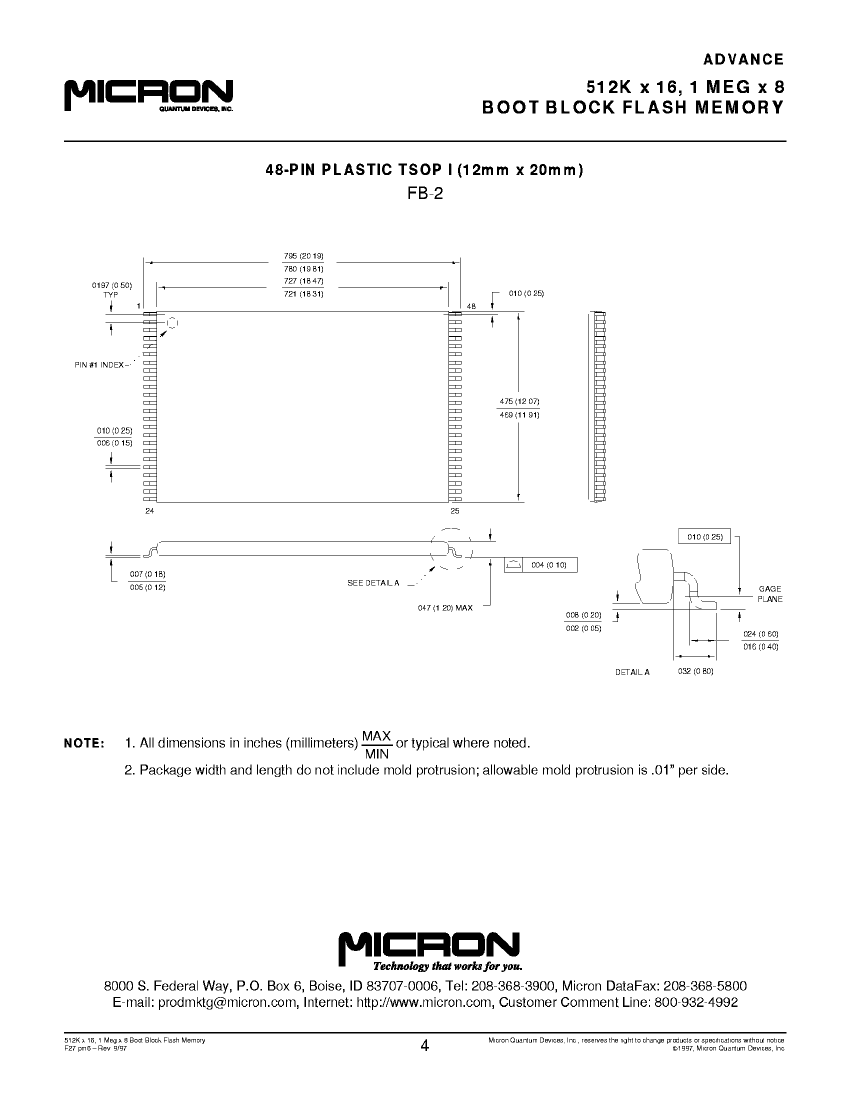

package instruction	0.600 INCH, PLASTIC, SOP-44	0.600 INCH, PLASTIC, SOP-44	0.600 INCH, PLASTIC, SOP-44	0.600 INCH, PLASTIC, SOP-44	12 X 20 MM, PLASTIC, TSOP1-48	12 X 20 MM, PLASTIC, TSOP1-48	12 X 20 MM, PLASTIC, TSOP1-48	12 X 20 MM, PLASTIC, TSOP1-48
Contacts	44	44	44	44	48	48	48	48
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	120 ns	120 ns	120 ns	120 ns	120 ns	120 ns	120 ns	120 ns
Other features	USER CONFG AS 512K X 16; TOP BOOT BLOCK	USER CONFG AS 512K X 16; BOTTOM BOOT BLOCK	USER CONFG AS 512K X 16; BOTTOM BOOT BLOCK	USER CONFG AS 512K X 16; TOP BOOT BLOCK	USER CONFG AS 512K X 16; TOP BOOT BLOCK	USER CONFG AS 512K X 16; TOP BOOT BLOCK	USER CONFG AS 512K X 16; BOTTOM BOOT BLOCK	USER CONFG AS 512K X 16; BOTTOM BOOT BLOCK
startup block	TOP	BOTTOM	BOTTOM	TOP	TOP	TOP	BOTTOM	BOTTOM
JESD-30 code	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48
length	28.195 mm	28.195 mm	28.195 mm	28.195 mm	18.4 mm	18.4 mm	18.4 mm	18.4 mm
memory density	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	44	44	44	44	48	48	48	48
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	85 °C	70 °C	70 °C	85 °C
organize	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	TSOP1	TSOP1	TSOP1	TSOP1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.7 mm	2.7 mm	2.7 mm	2.7 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	12.6 mm	12.6 mm	12.6 mm	12.6 mm	12 mm	12 mm	12 mm	12 mm
Base Number Matches	-	1	1	1	1	1	-	-
